Description: The Hiroyasu HA805S is a 1.75 to 2-inch stubby compact thumb antenna designed for handheld ham radios (HTs) like Baofeng UV-5R, 5RMini. It offers extreme portability and durability for short-range communication,typically sacrificing gain for convenience compared to longer stock antennas.
Key Features and performance:

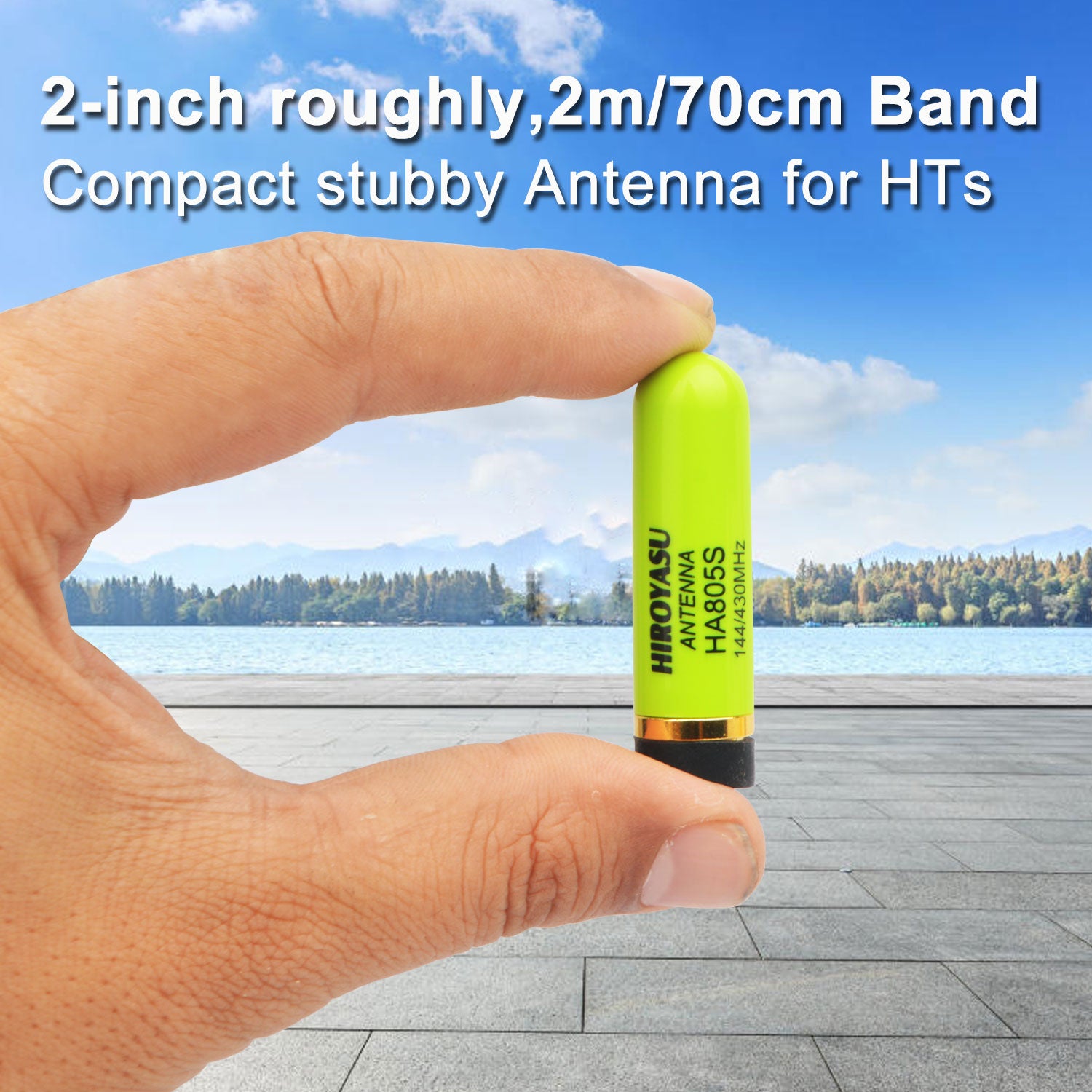

Size: Extremely compact, roughly 1.96-2 inches (5 cm) in length
Frequency: Primarily dual-band 144/430MHz (2m/70cm), with covering 1200MHz (23cm) receive band.
Use Case: Ideal for concealed carry,urban environments, or short-distance,”Walk-around” radio use.
Performance: Generally, these provide reduced,shorter-range transmit (Tx) performance compared to whip antennas, but are effective for close-range,local repeaters, or simplex with a neighborhood.

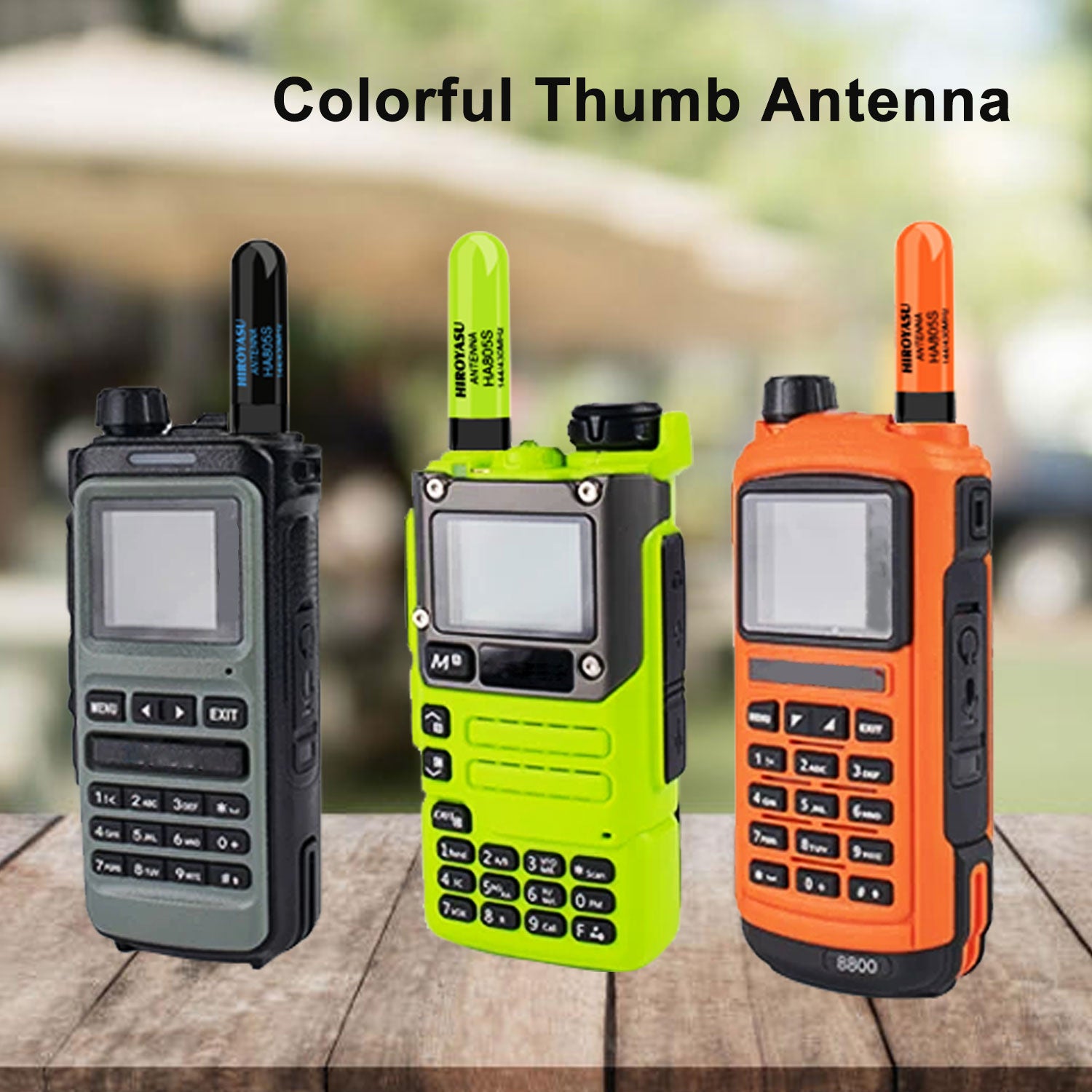

Compatibility: Fits most SMA-Female radio,including baofeng UV-5R,UV-82,BF-F8HP,Quansheng K5 K5(8),K1(8)

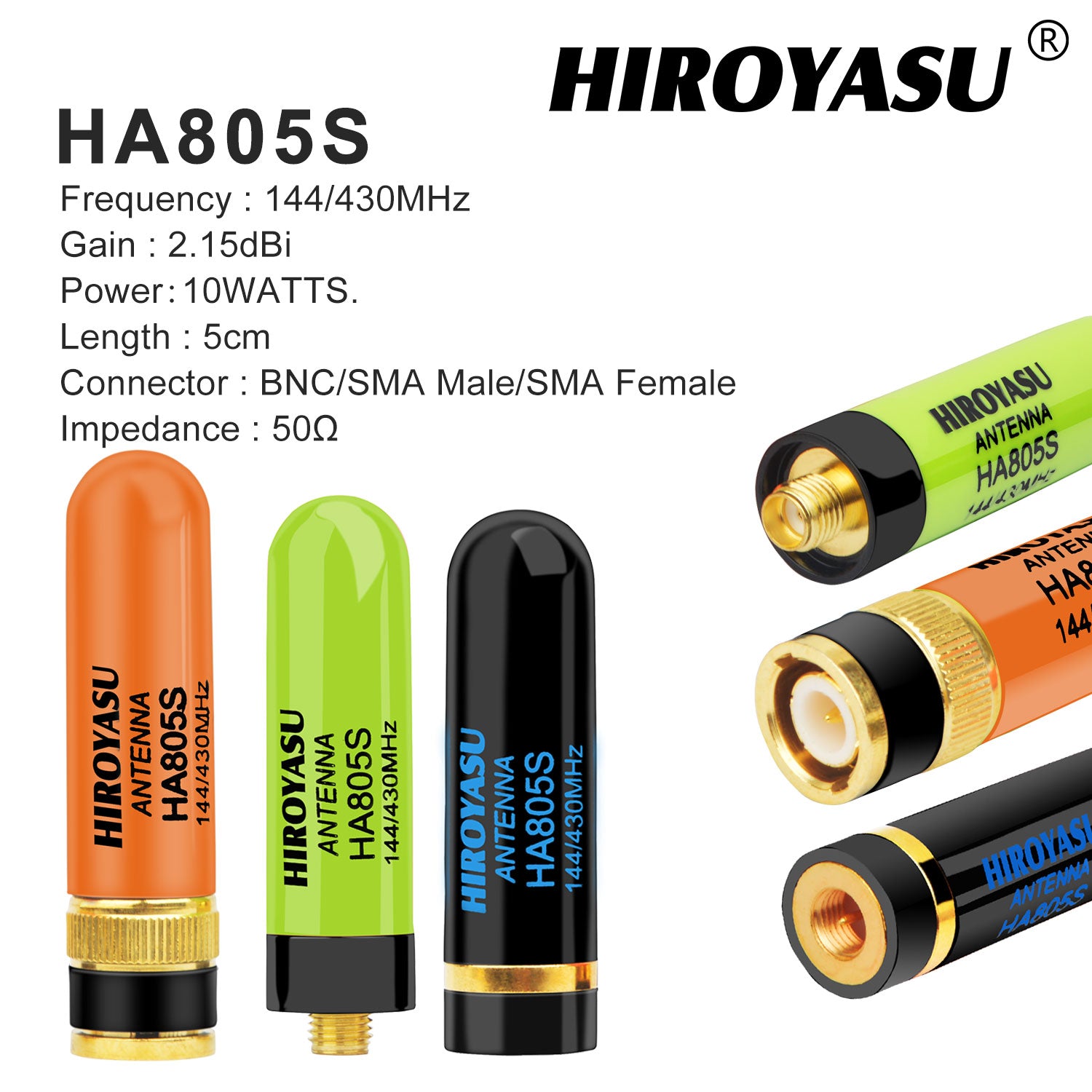

Specifications:
Brand: HIROYASU
Model: HA805S
Frequency:144/430MHz
Gain:2.15dBi
Max.Power:10Watts
V.S.W.R:<1.5
Impedance: 50ohm

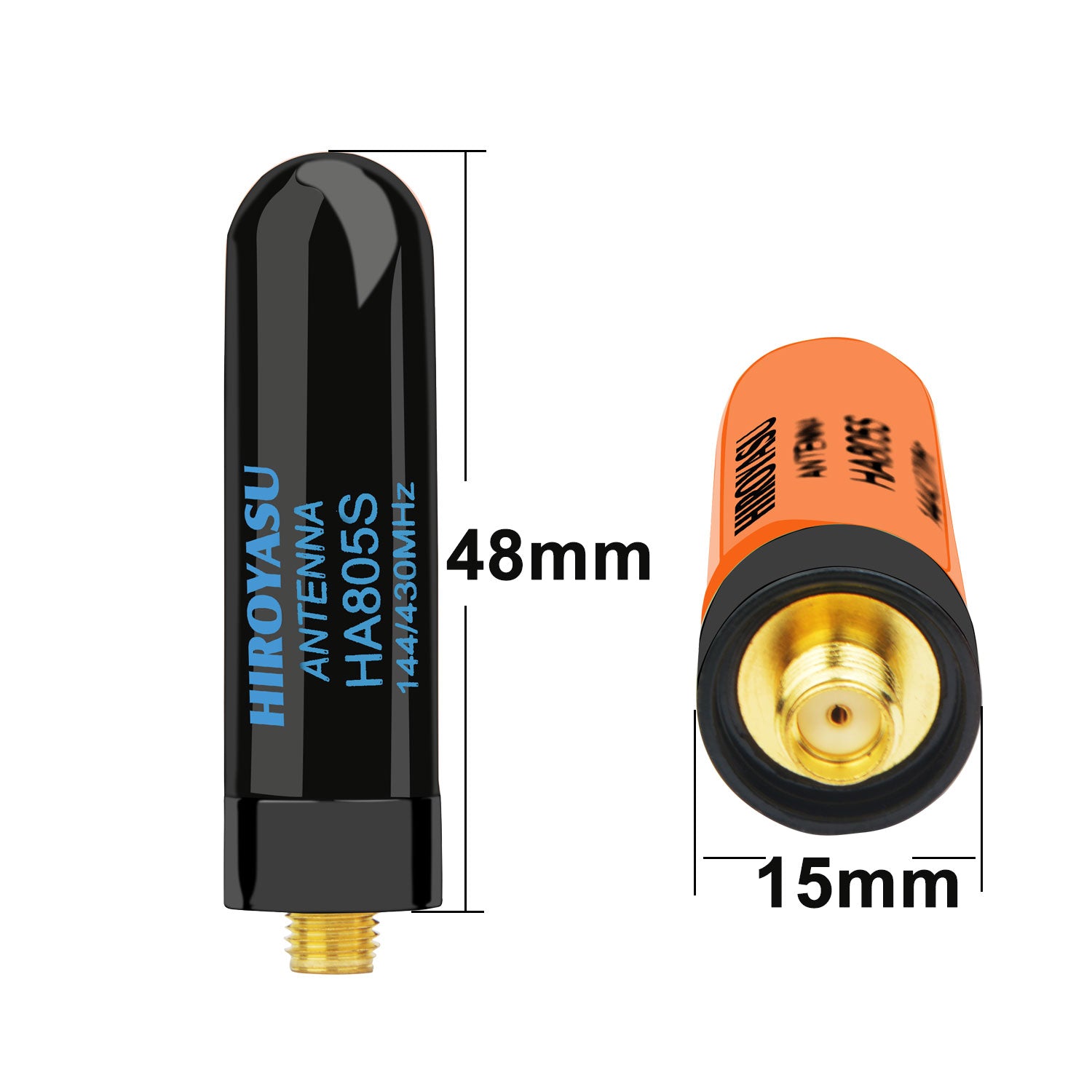

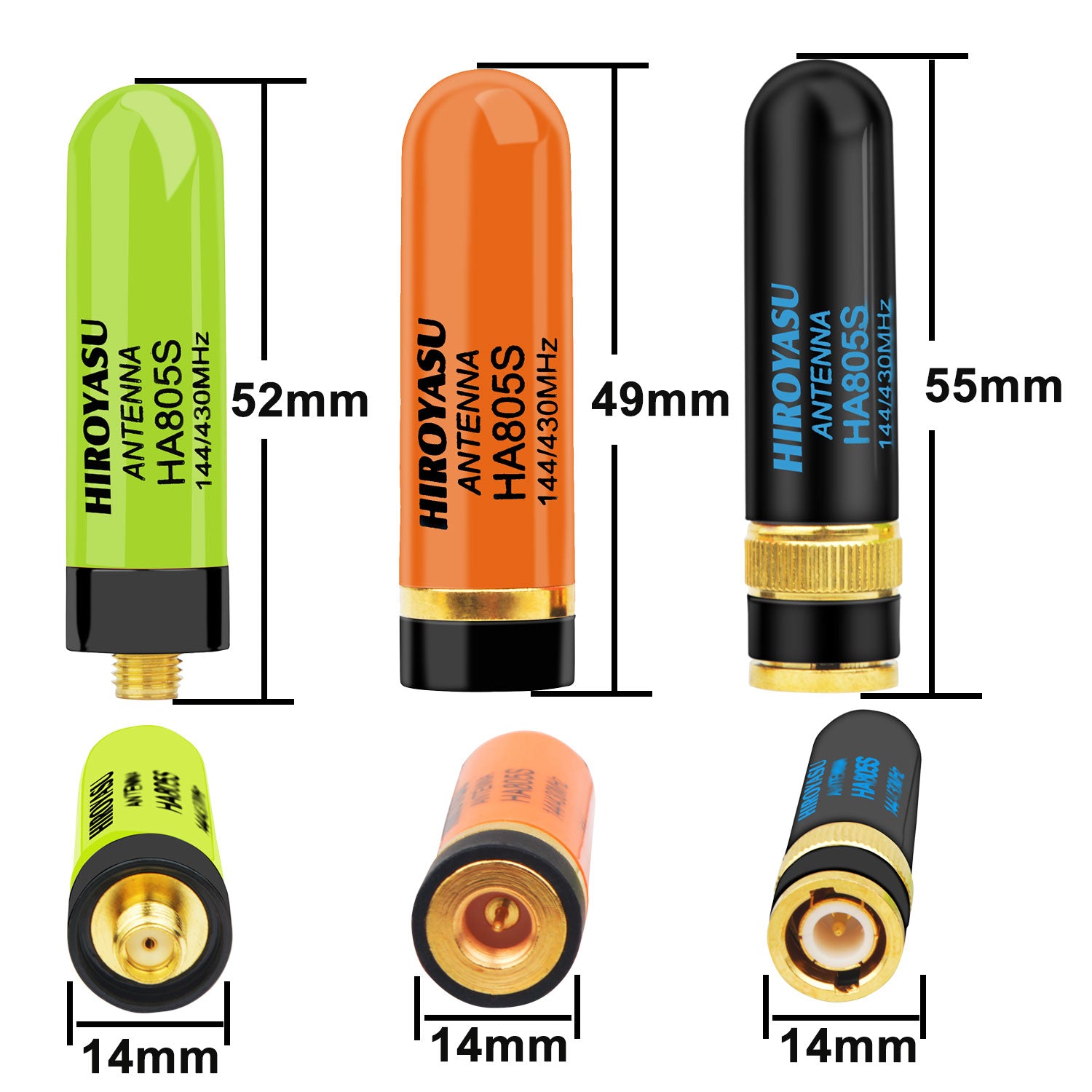

Antenna Length:5cm(1.96-2 inches) roughly

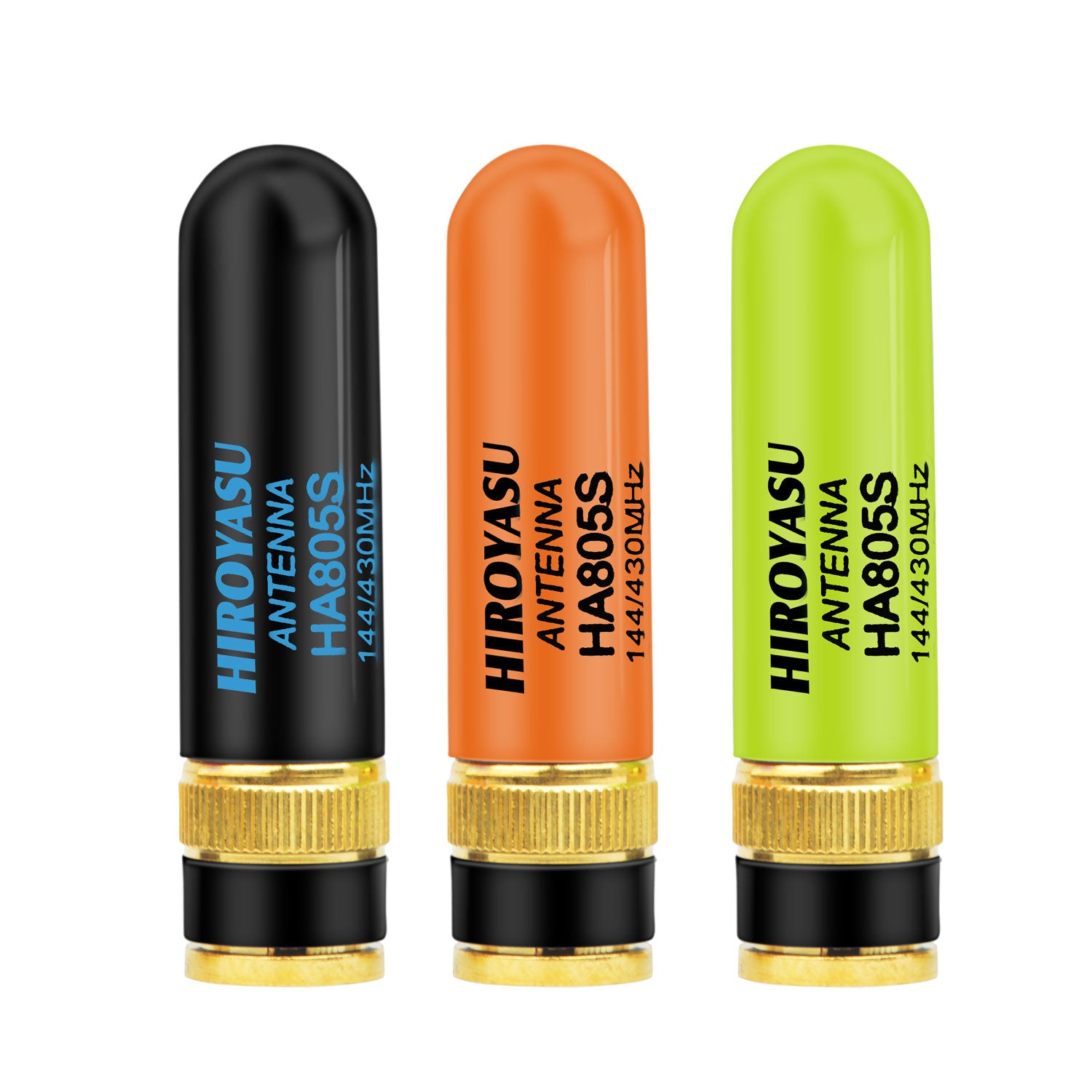

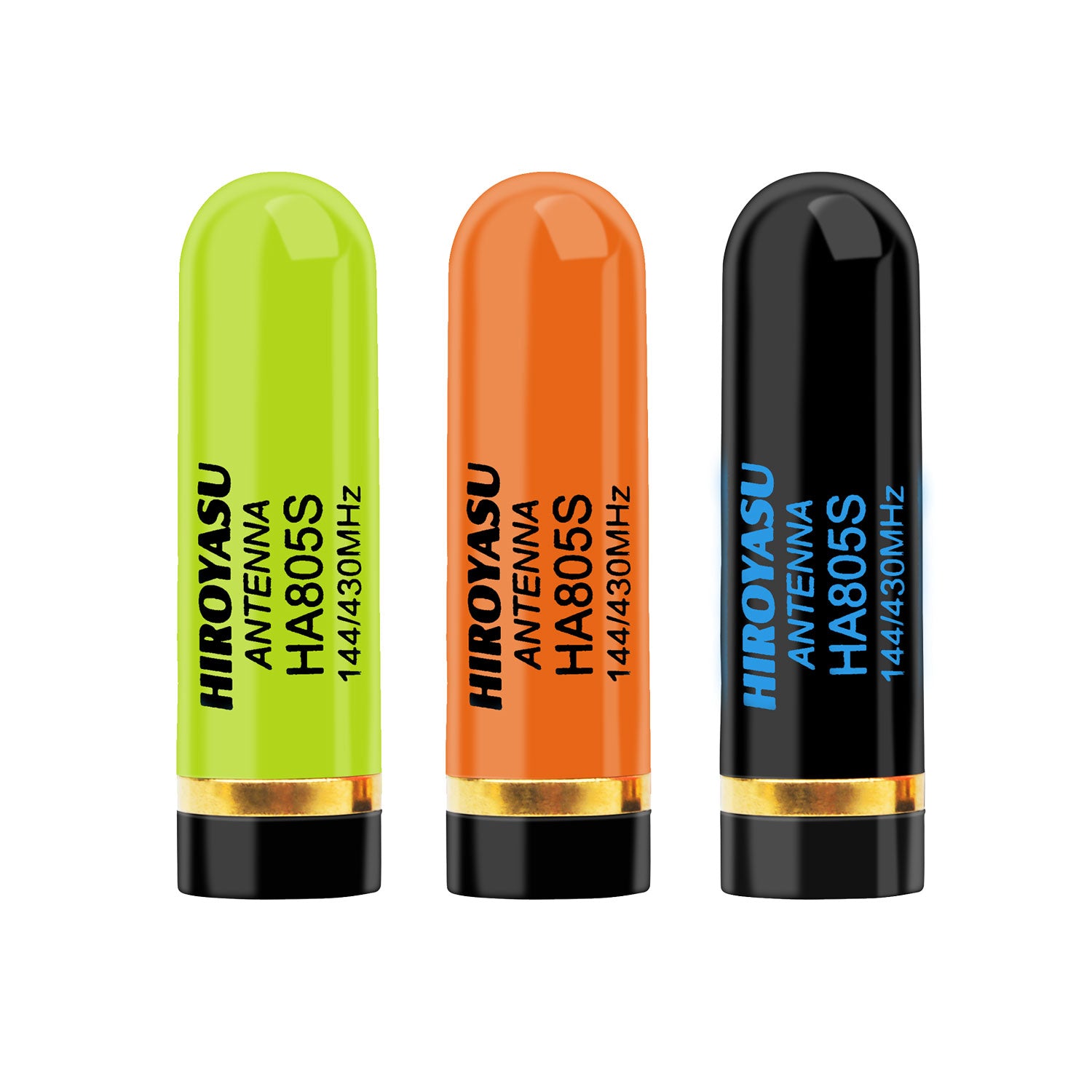

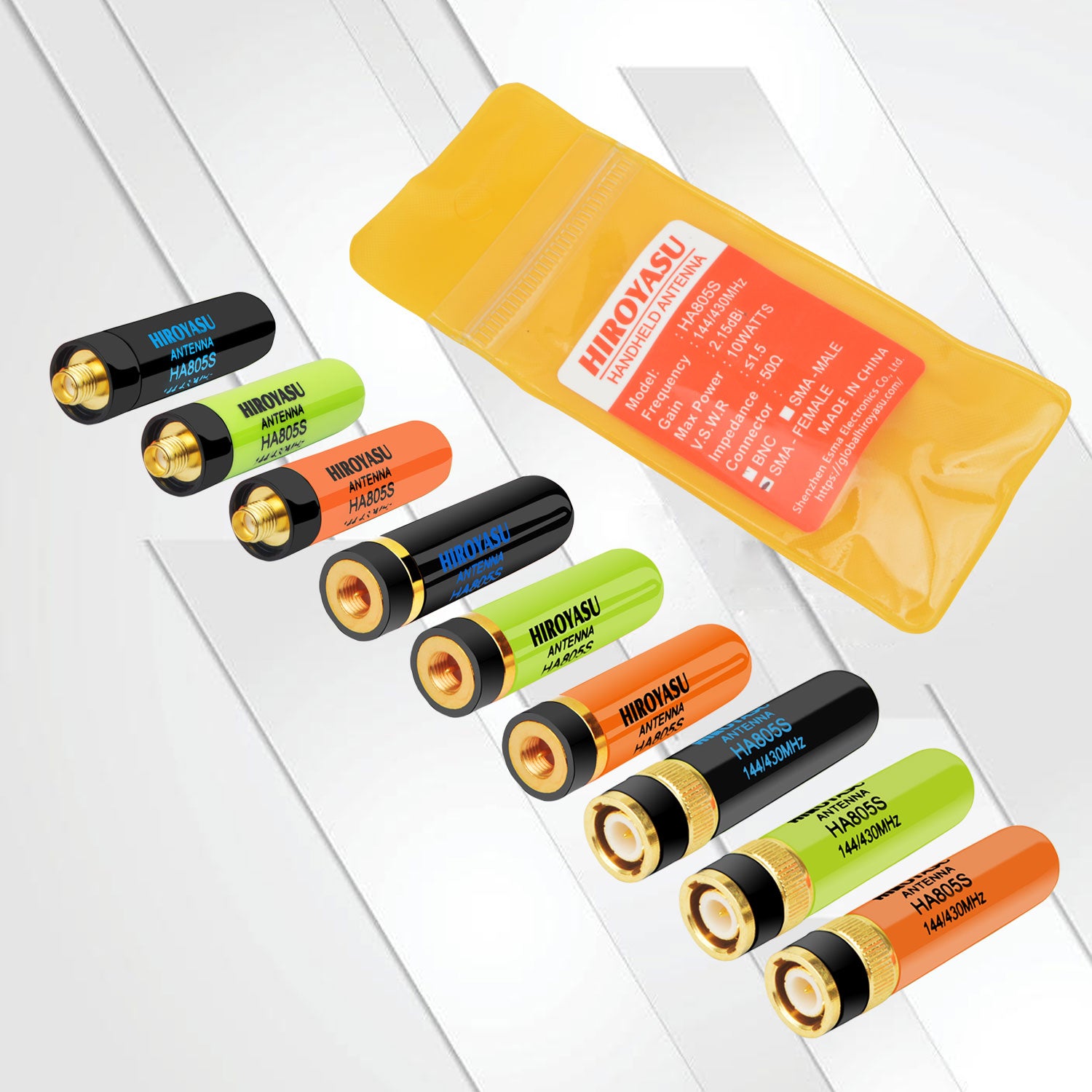

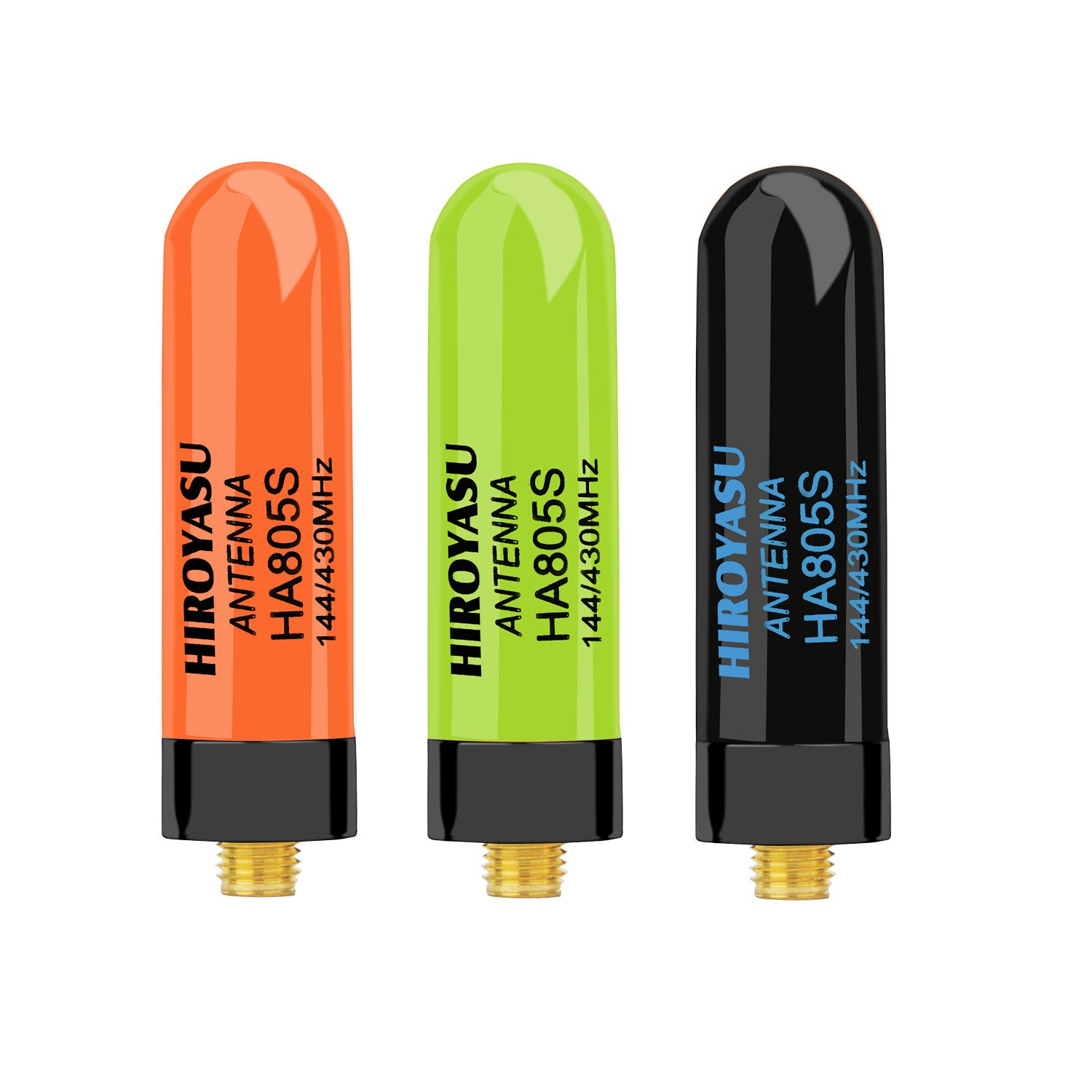

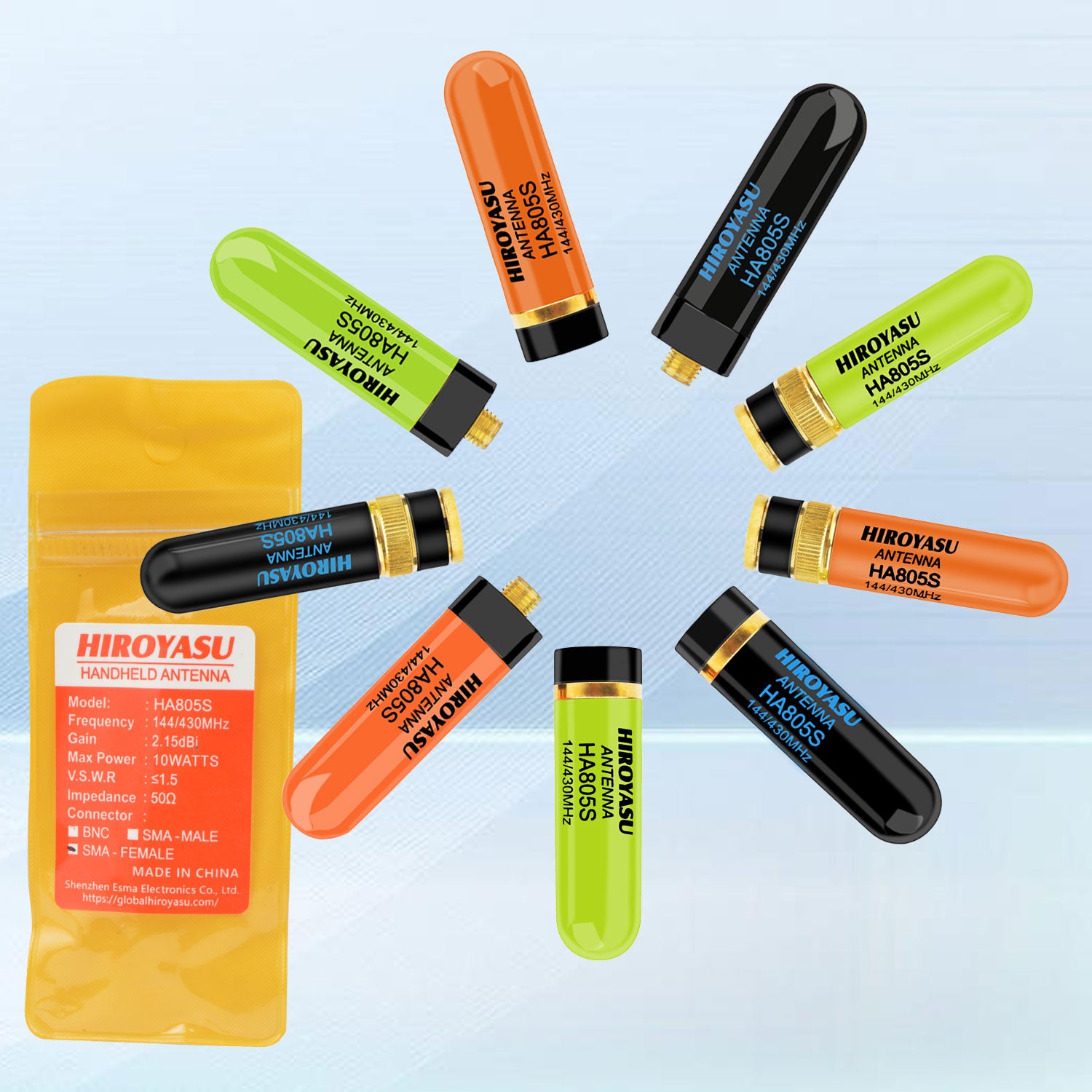

Colors for Option: Black,Orange, Green

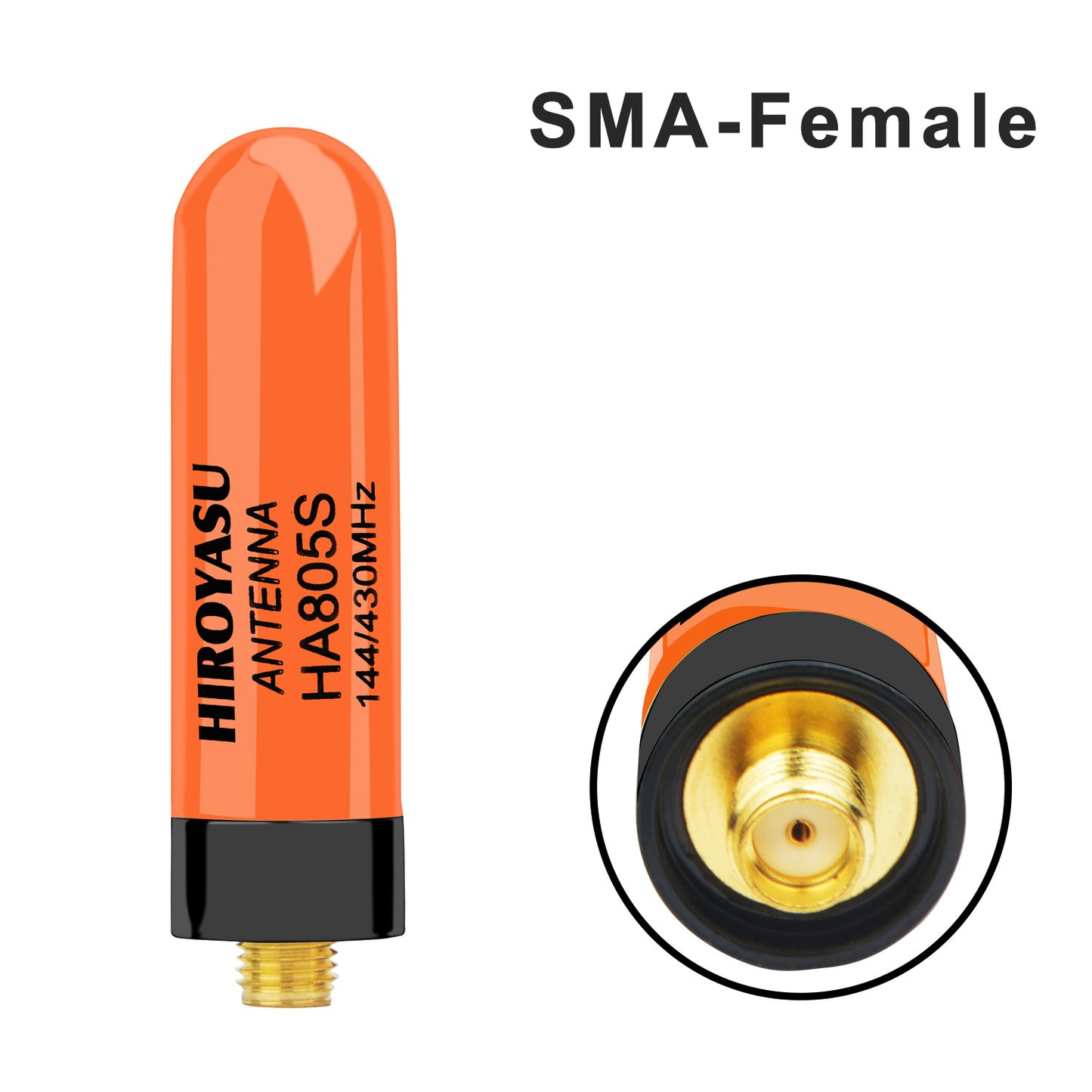

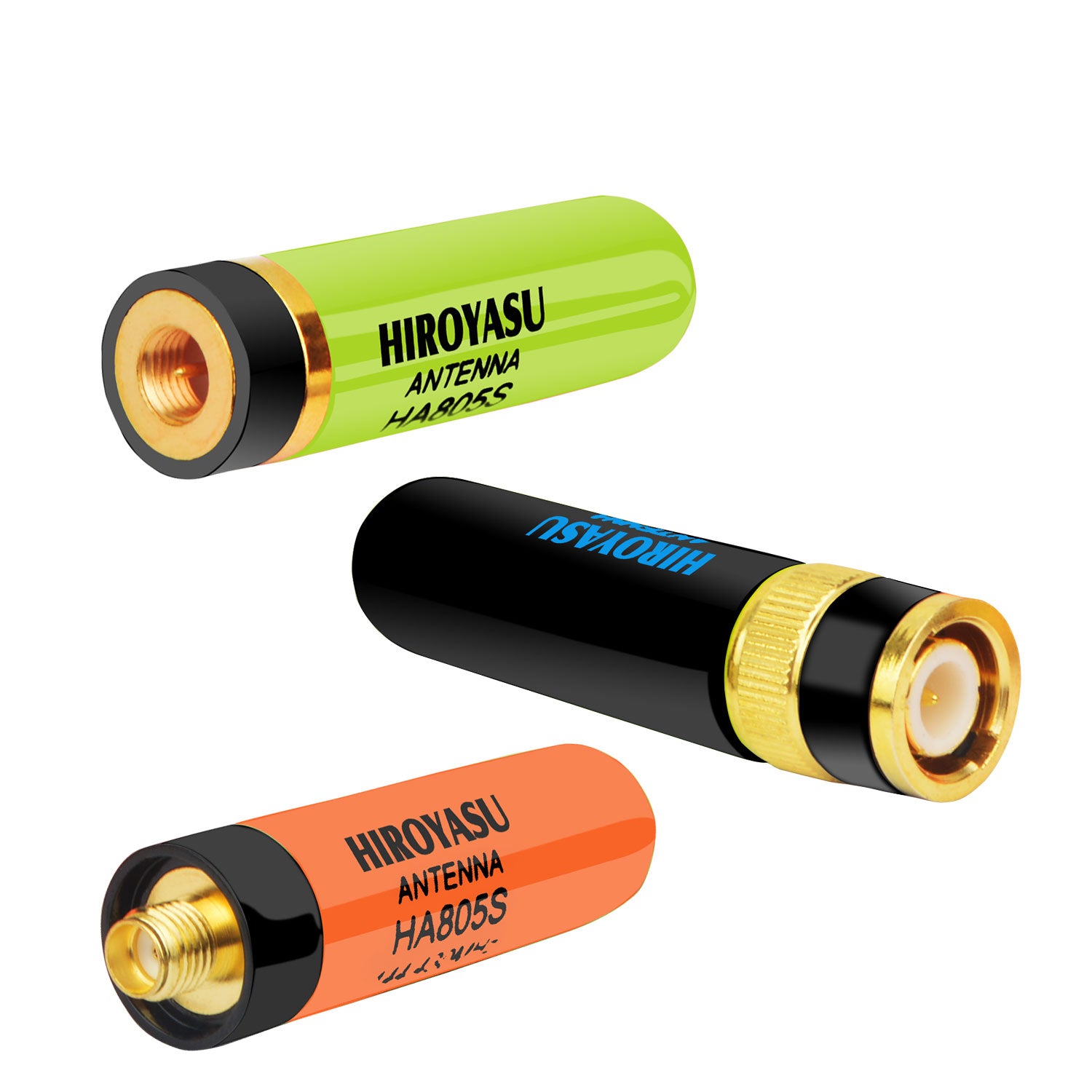

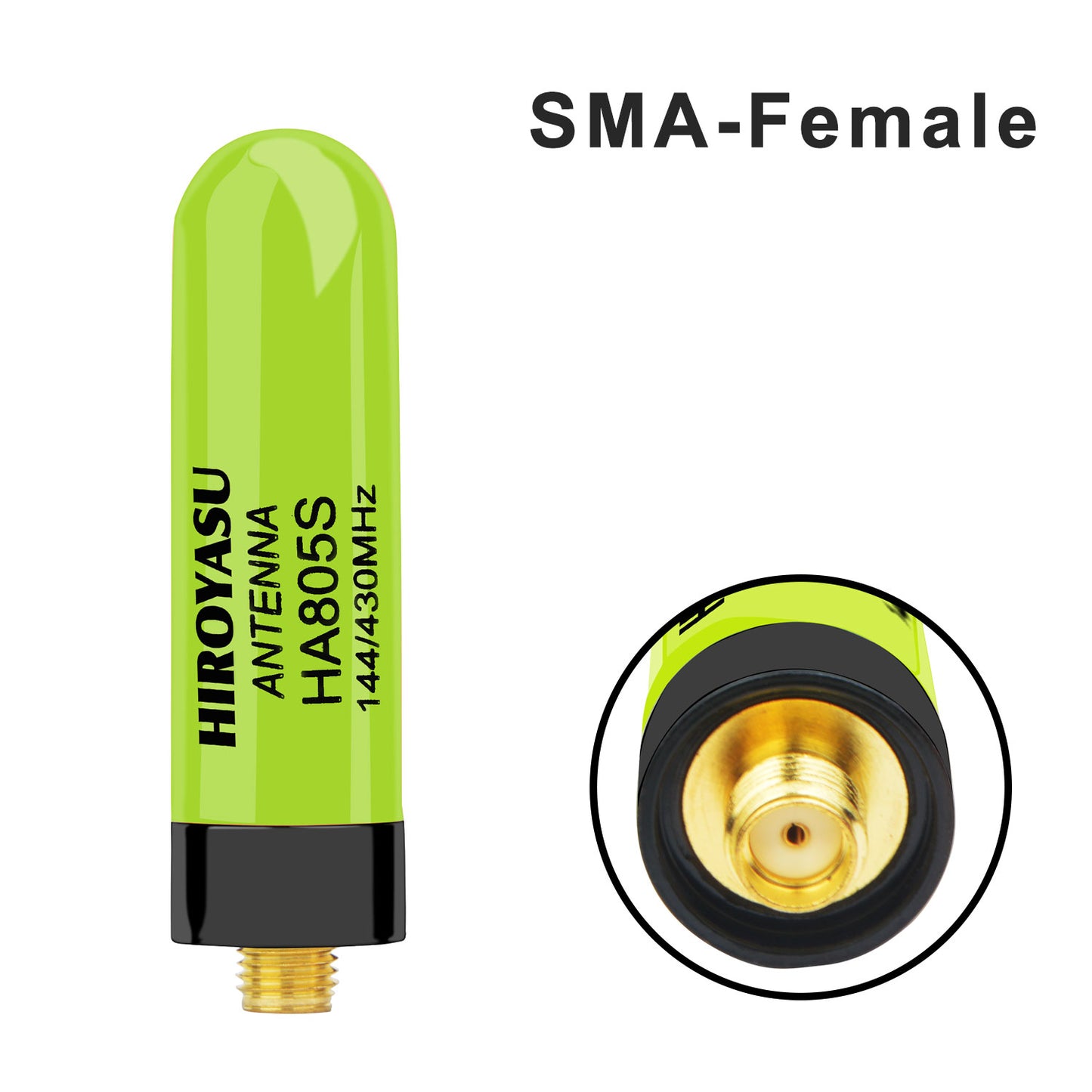

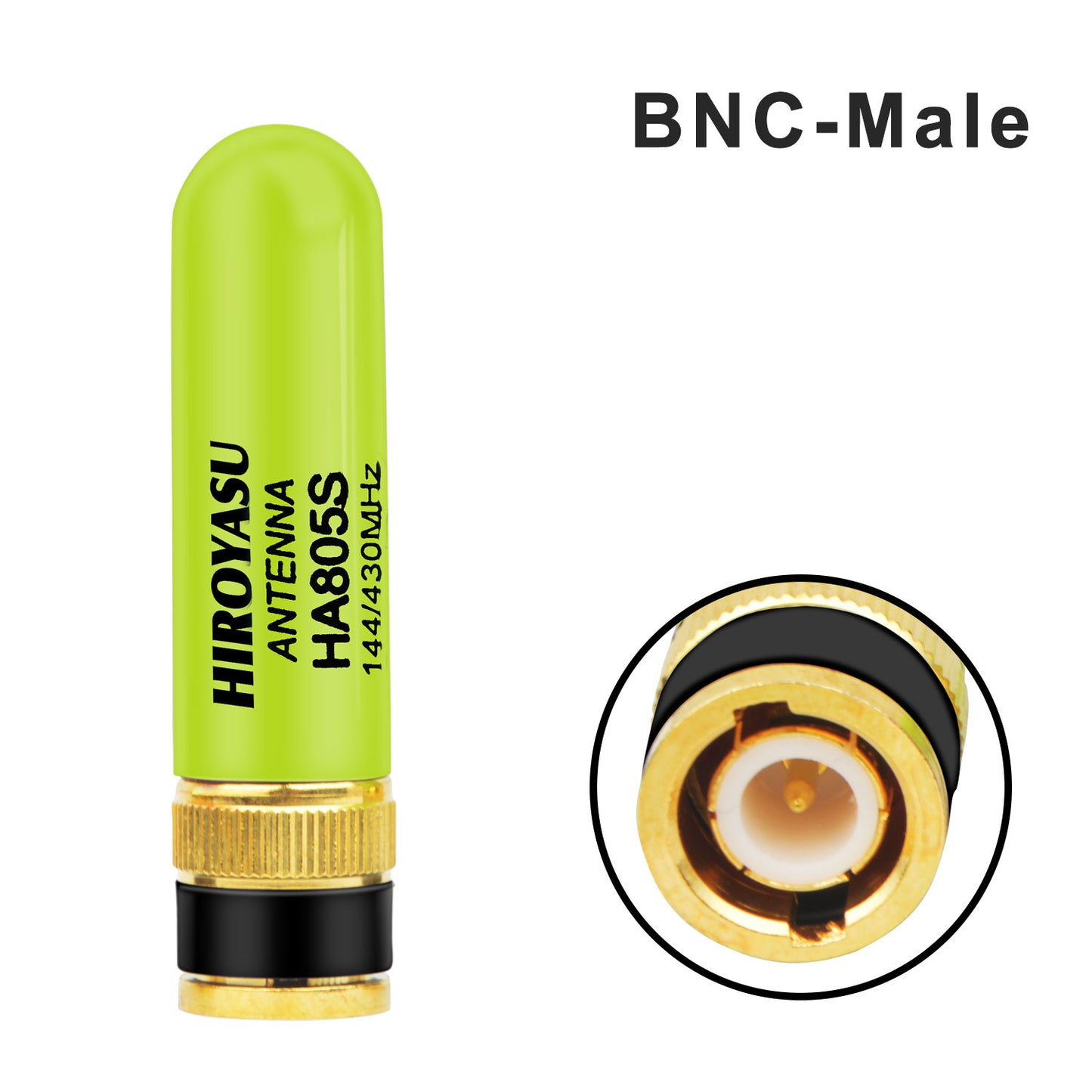

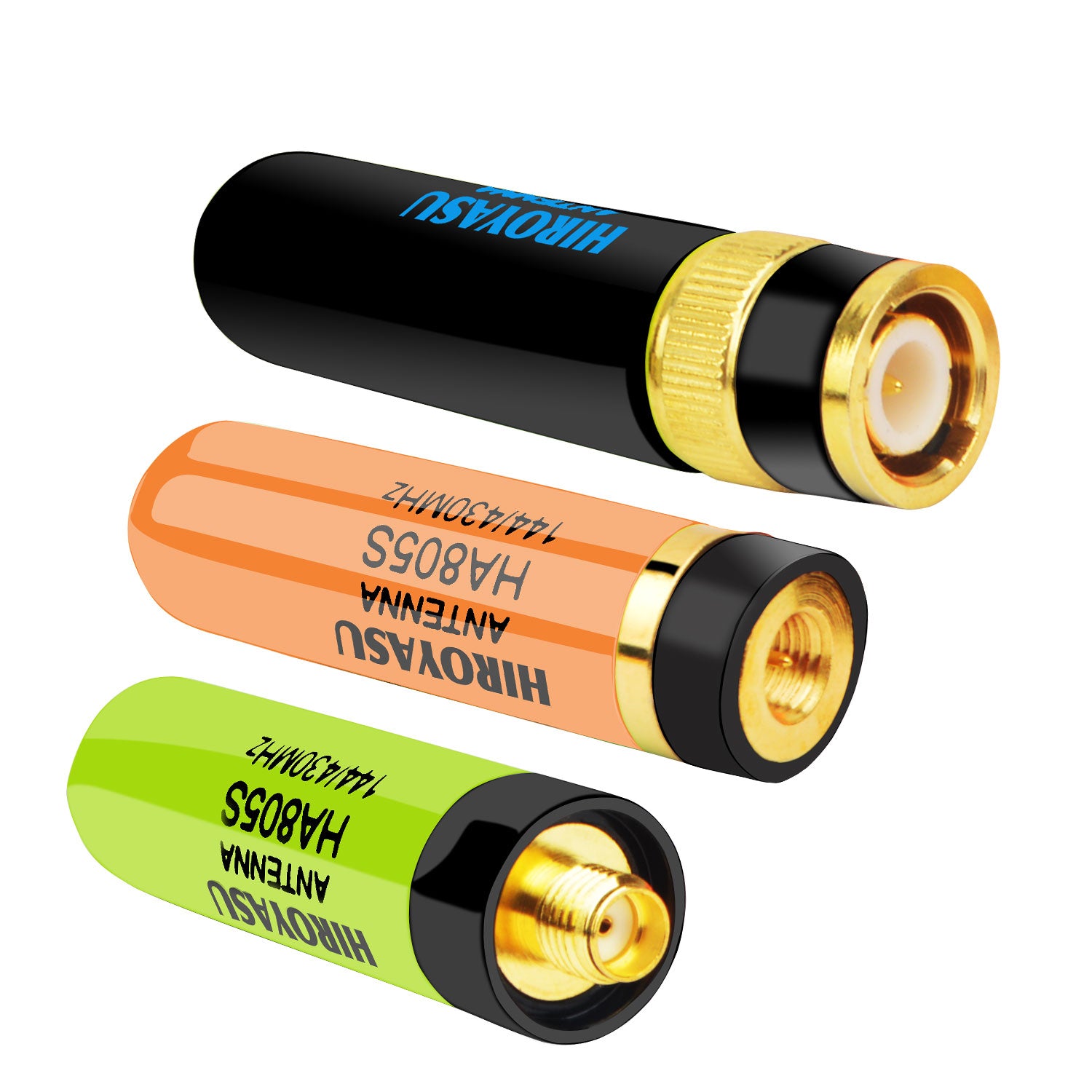

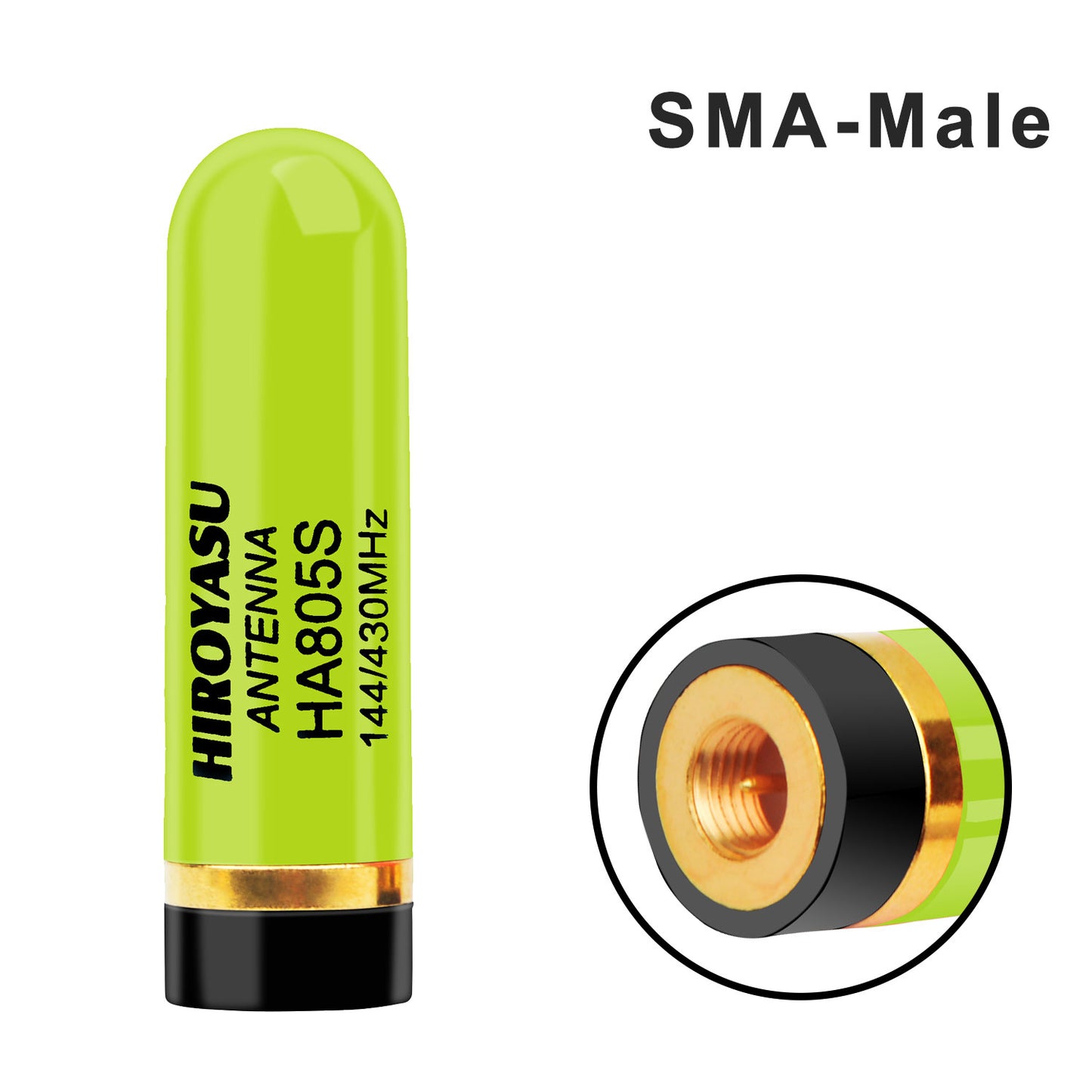

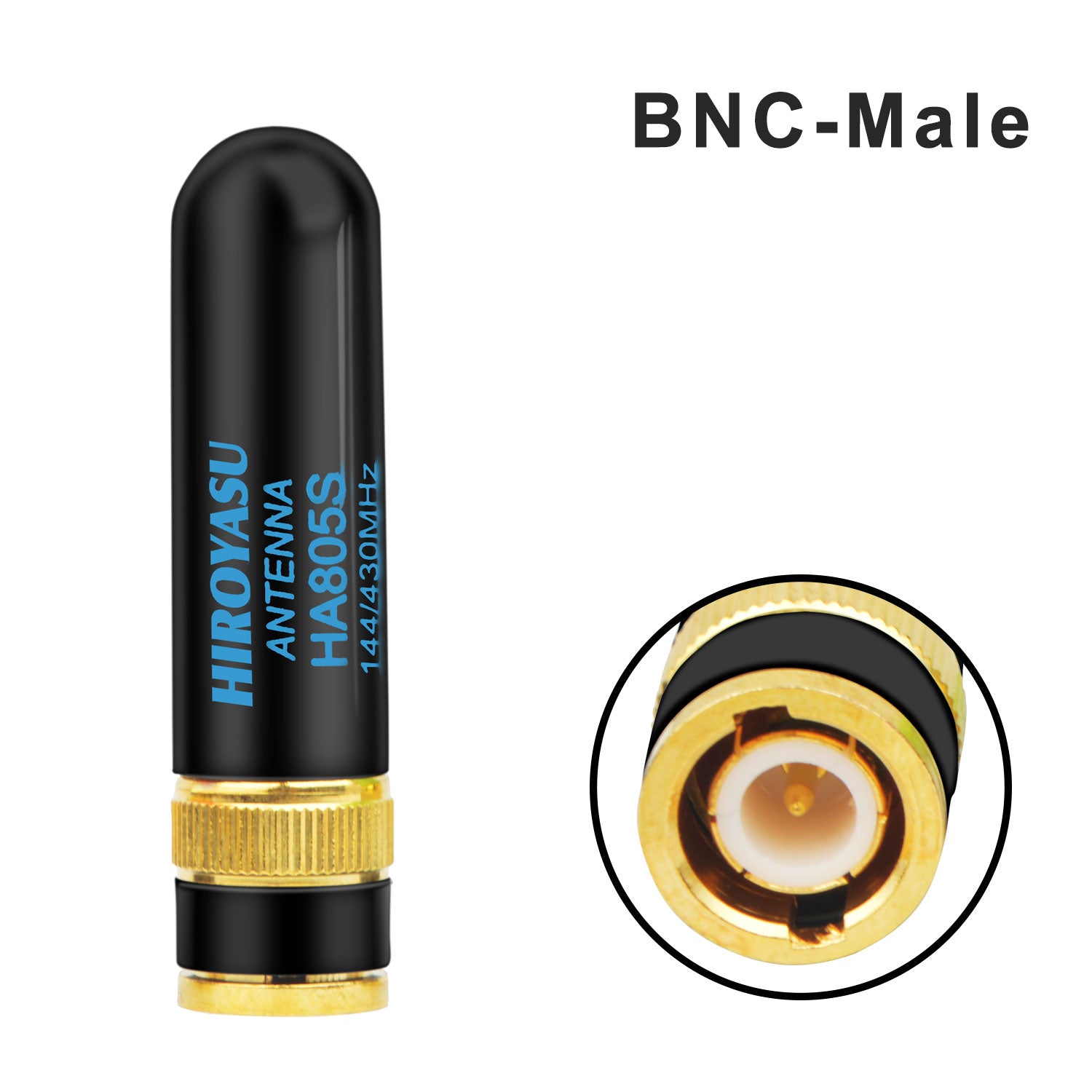

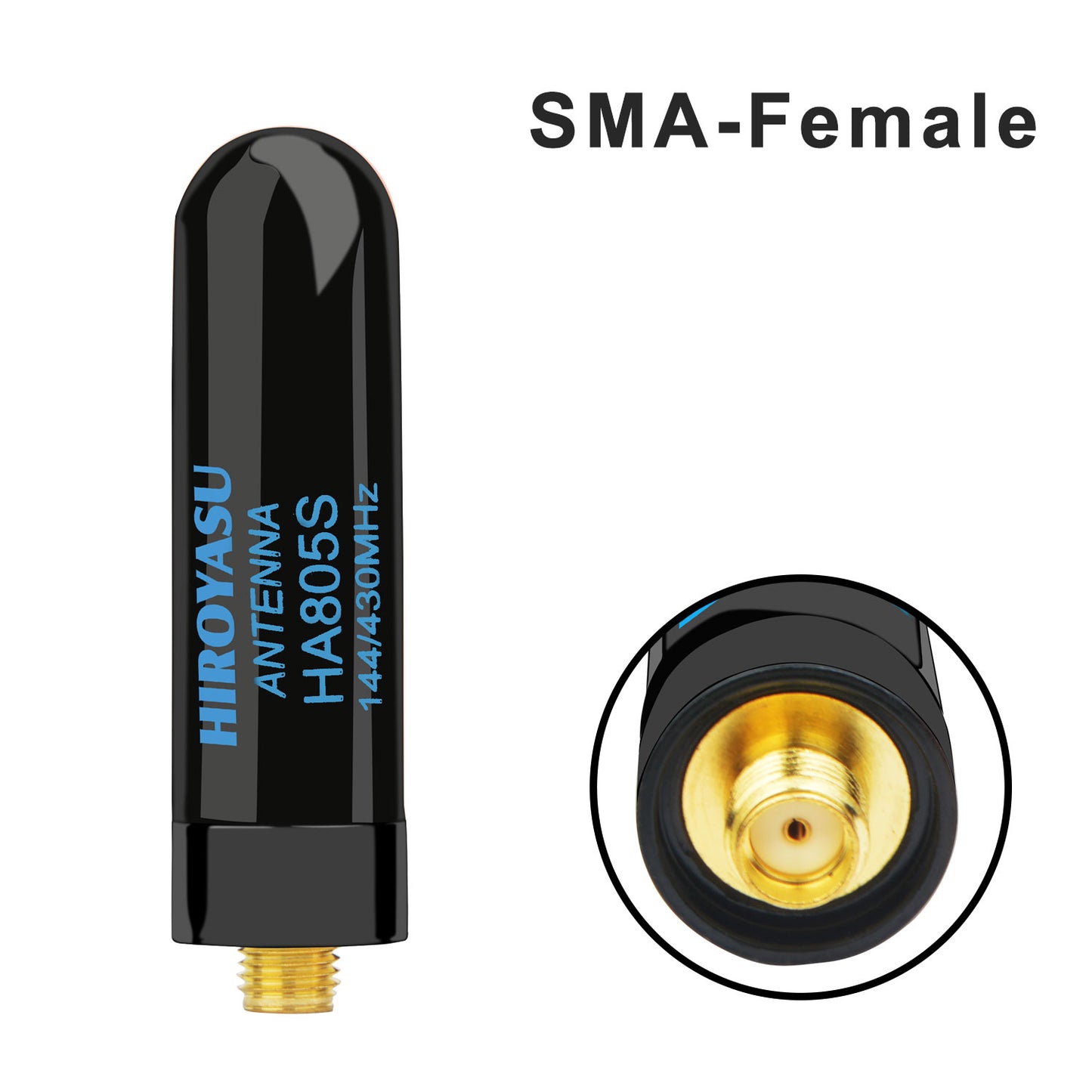

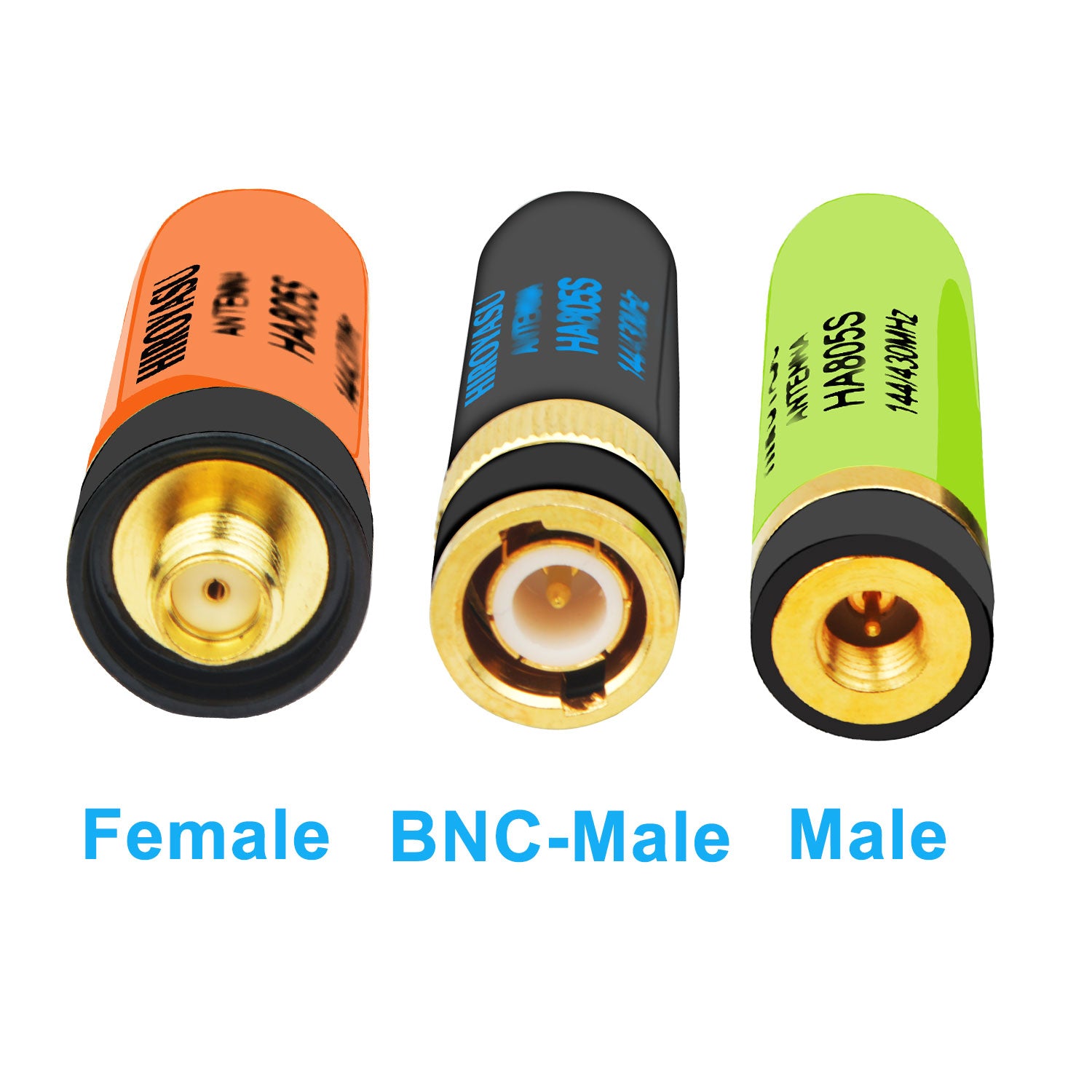

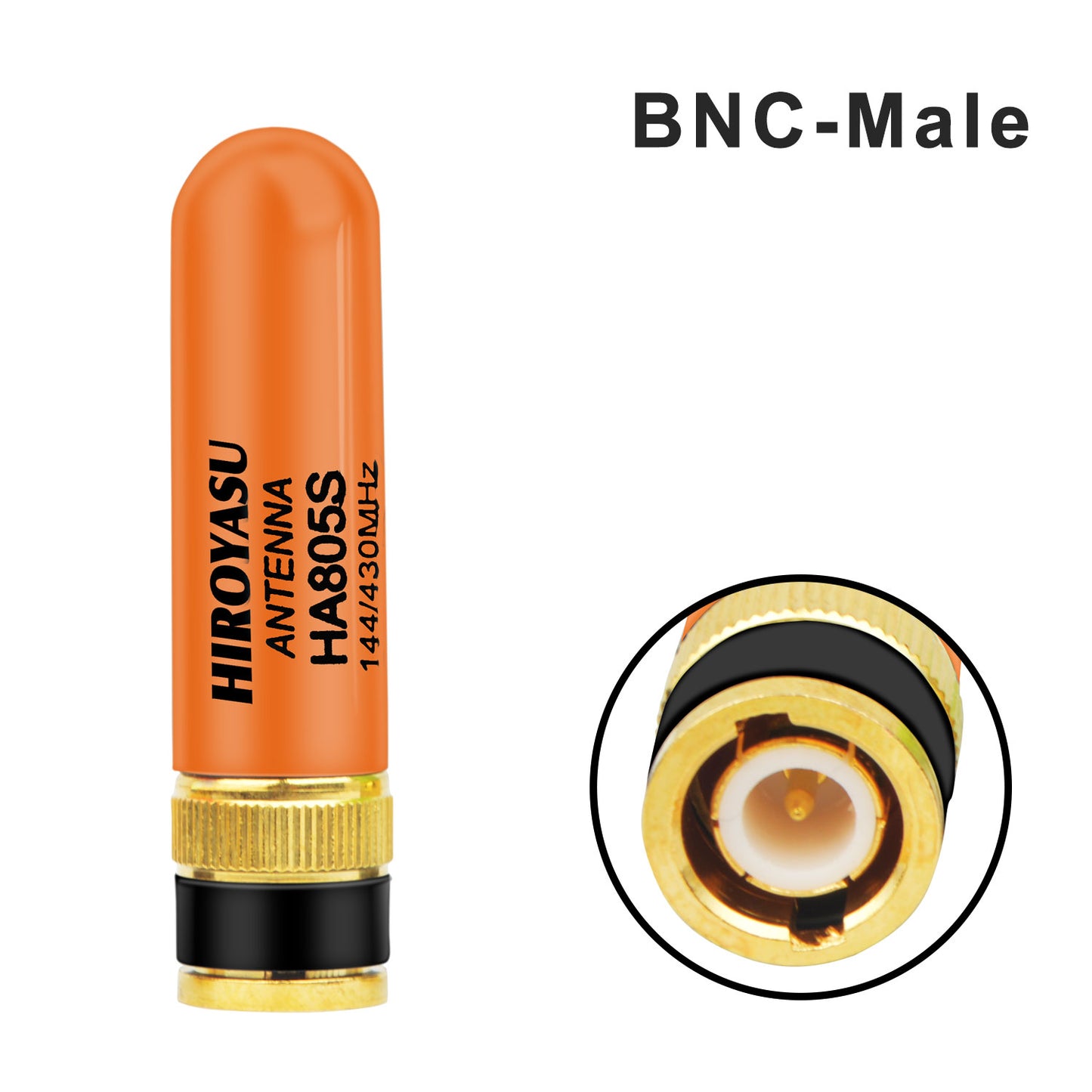

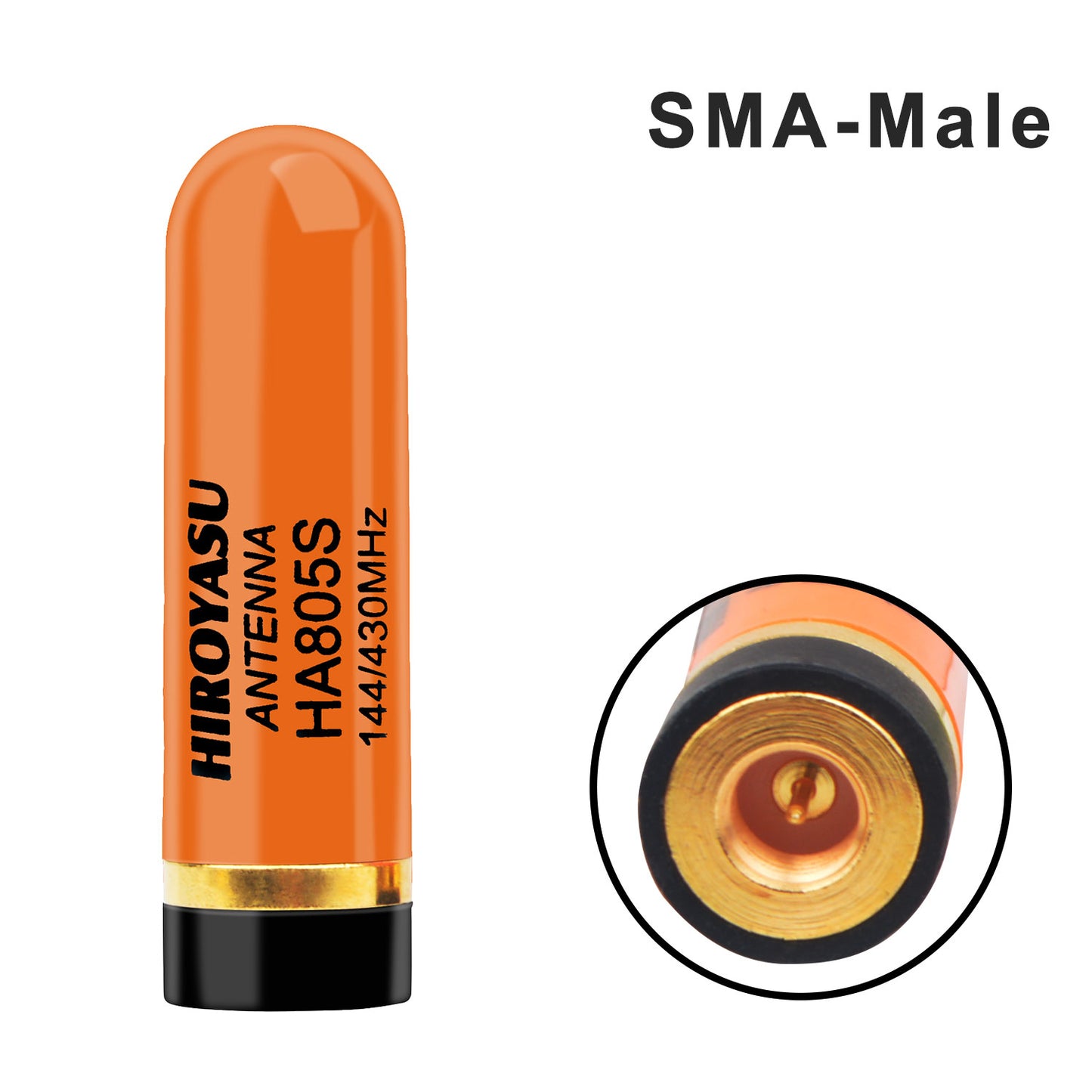

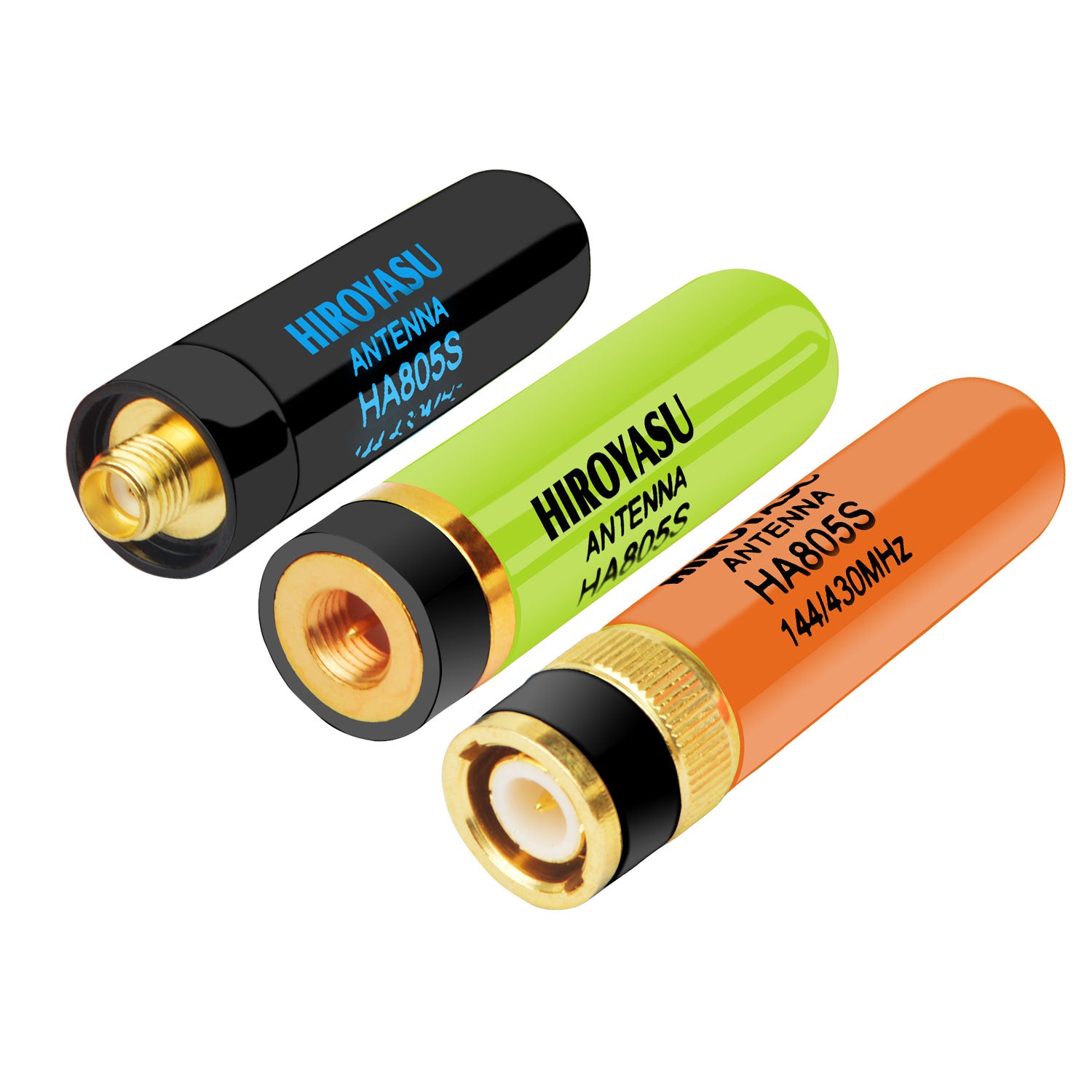

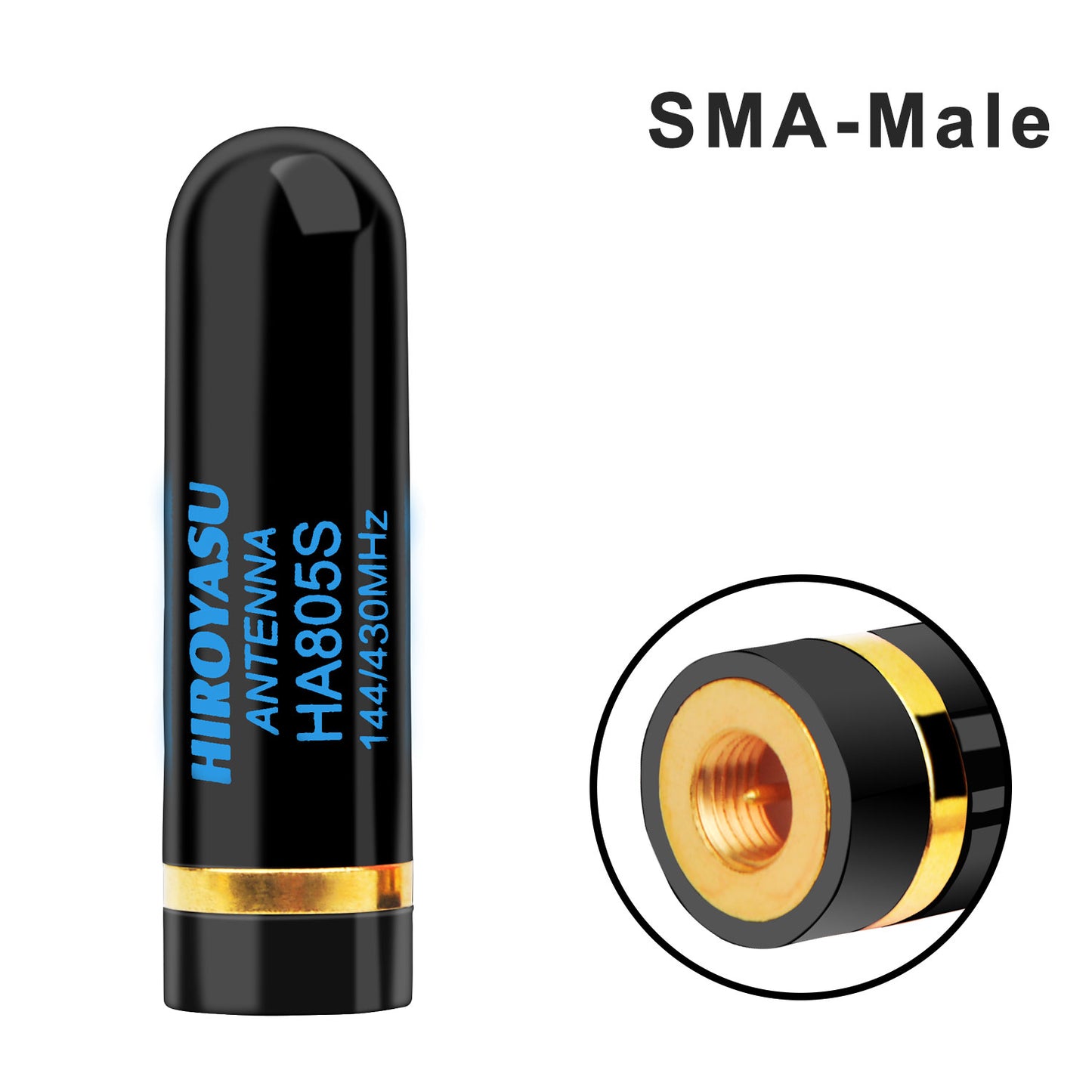

Connector for Option: SMA-Female, SMA--Male, BNC
Package Contains:
1× HIROYASU HA805S Antenna
