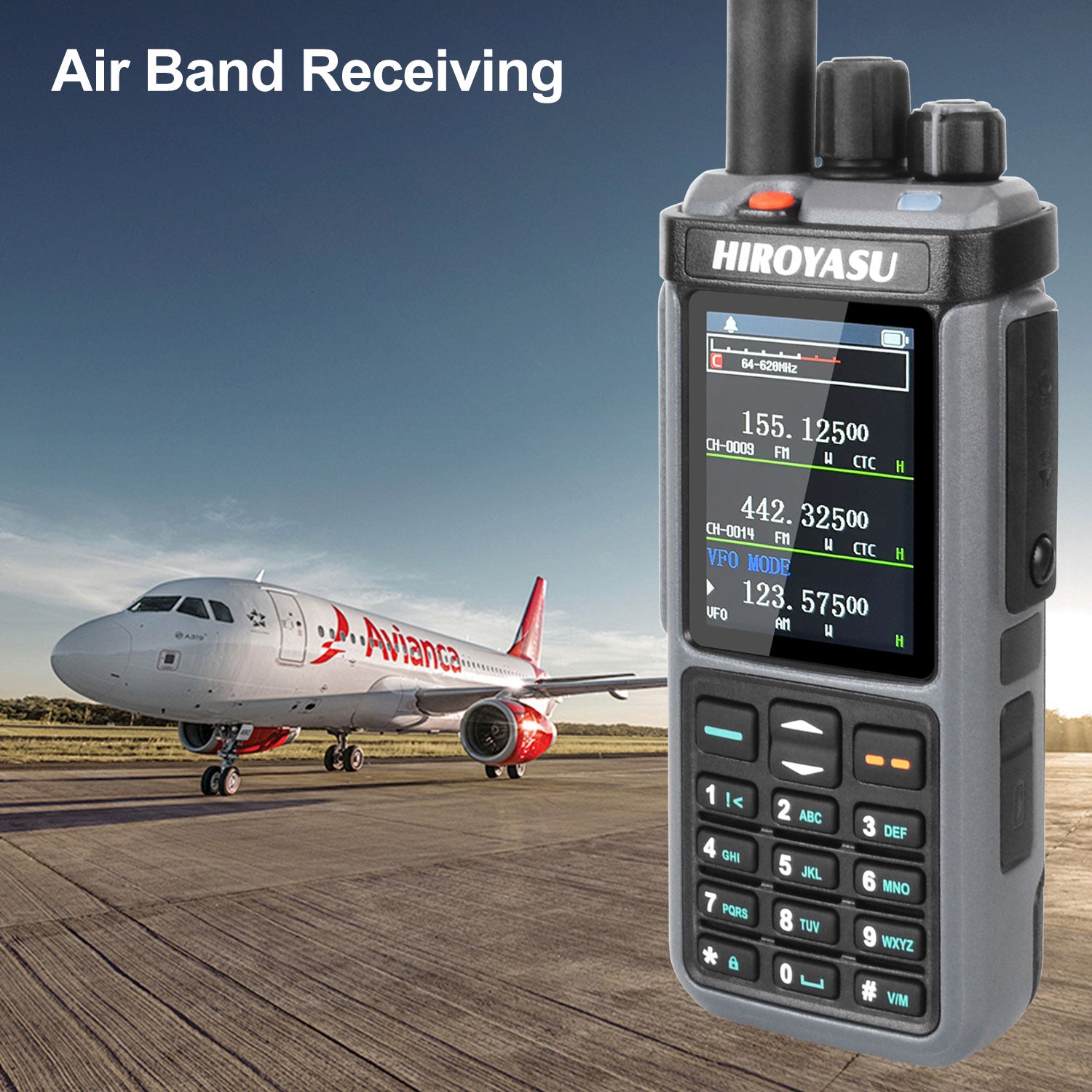

HIROYASU HW-UV938 HF Walkie Talkie SW MW LW 18-620MHz 840-1000MHz Air Band Full Band Cross-Band Repeater Scrambler NoAA AM/FM Rx

$65.00 USD

Sale Sold out

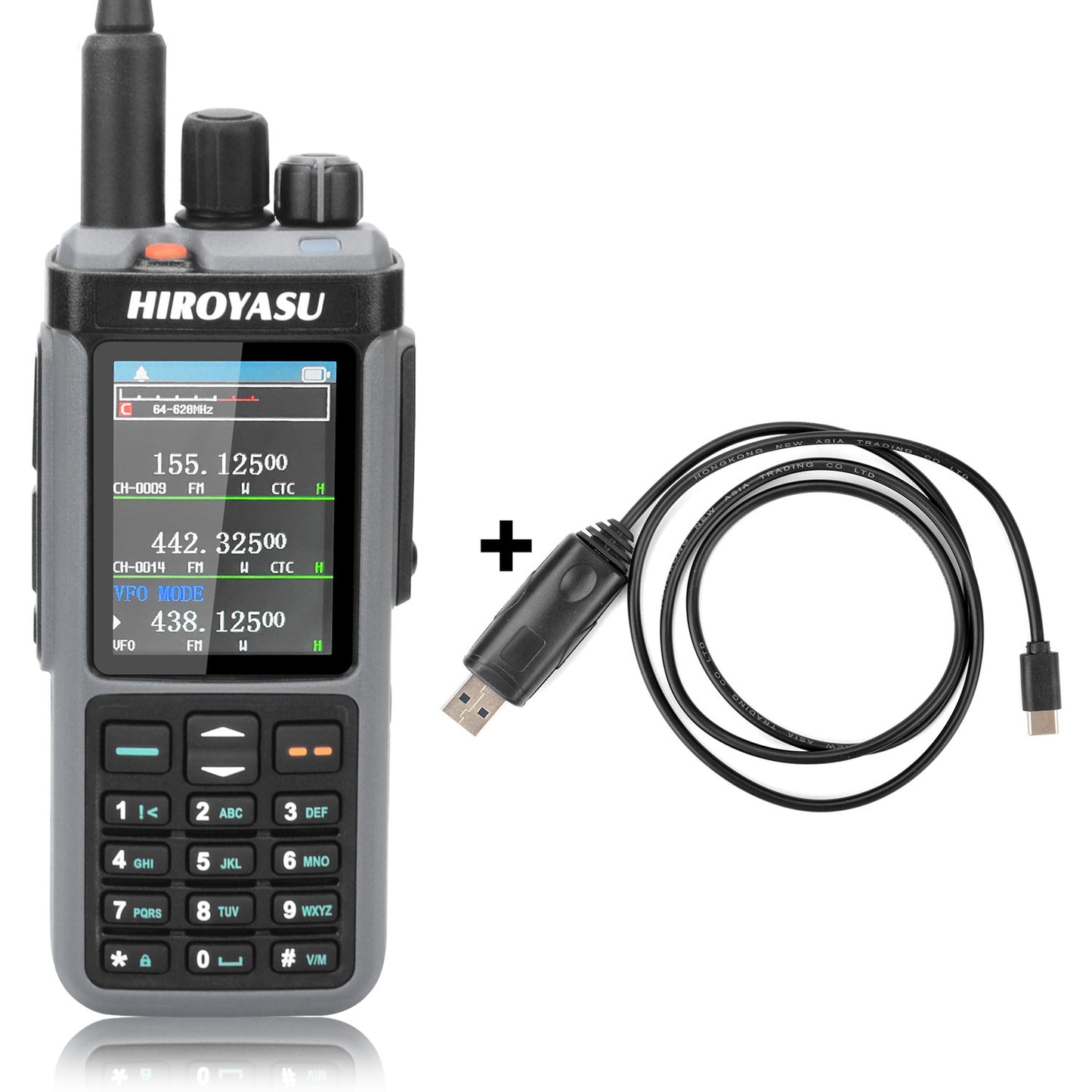

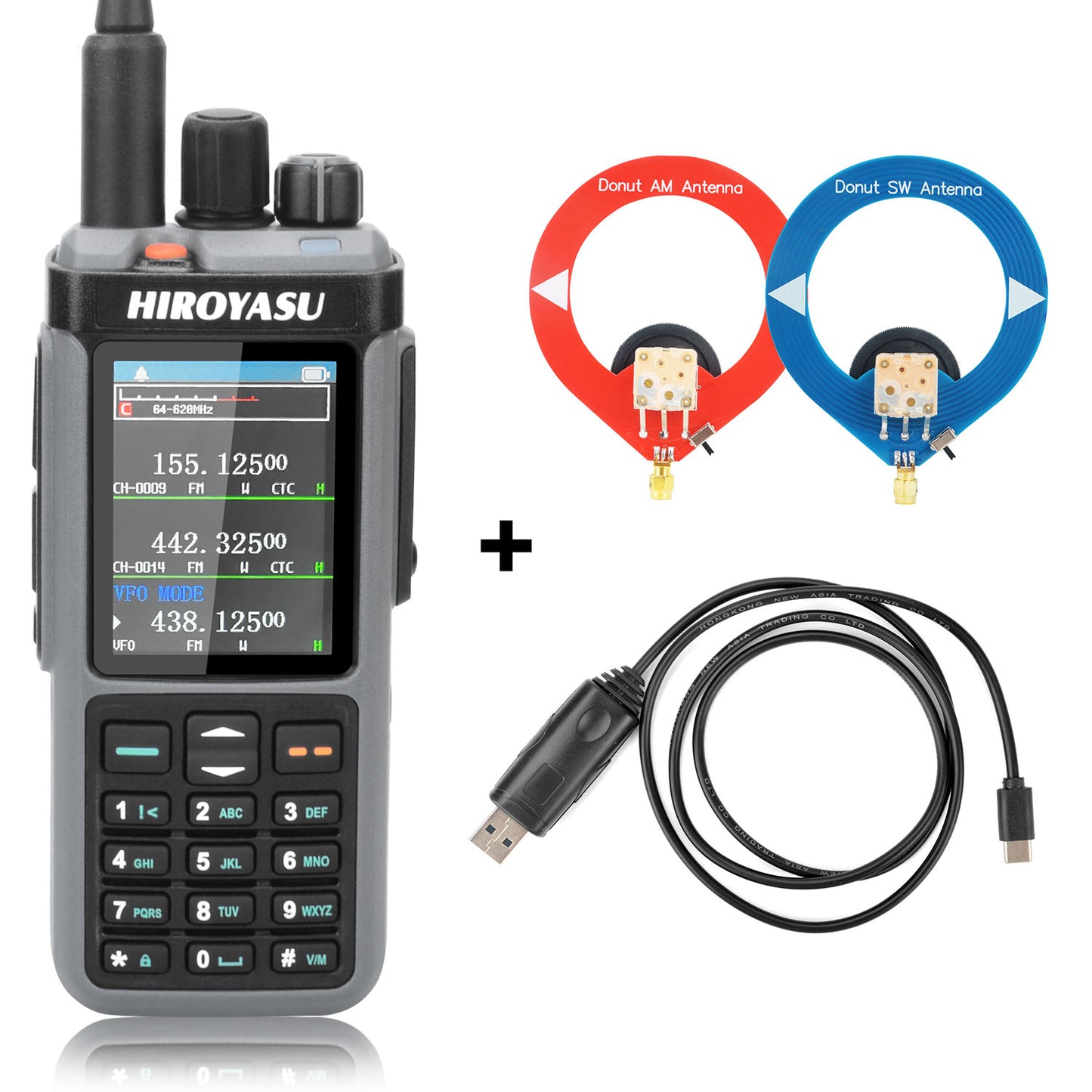

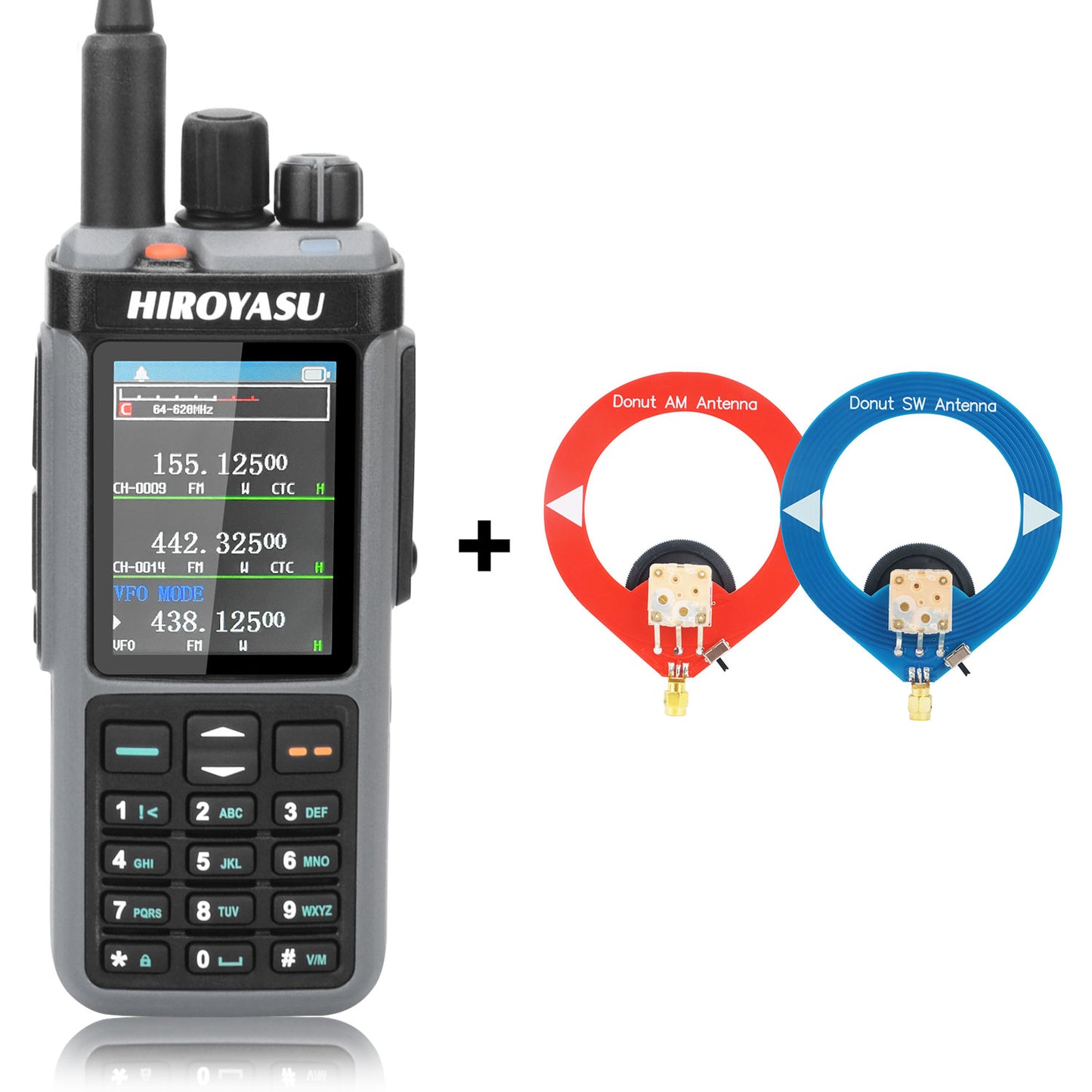

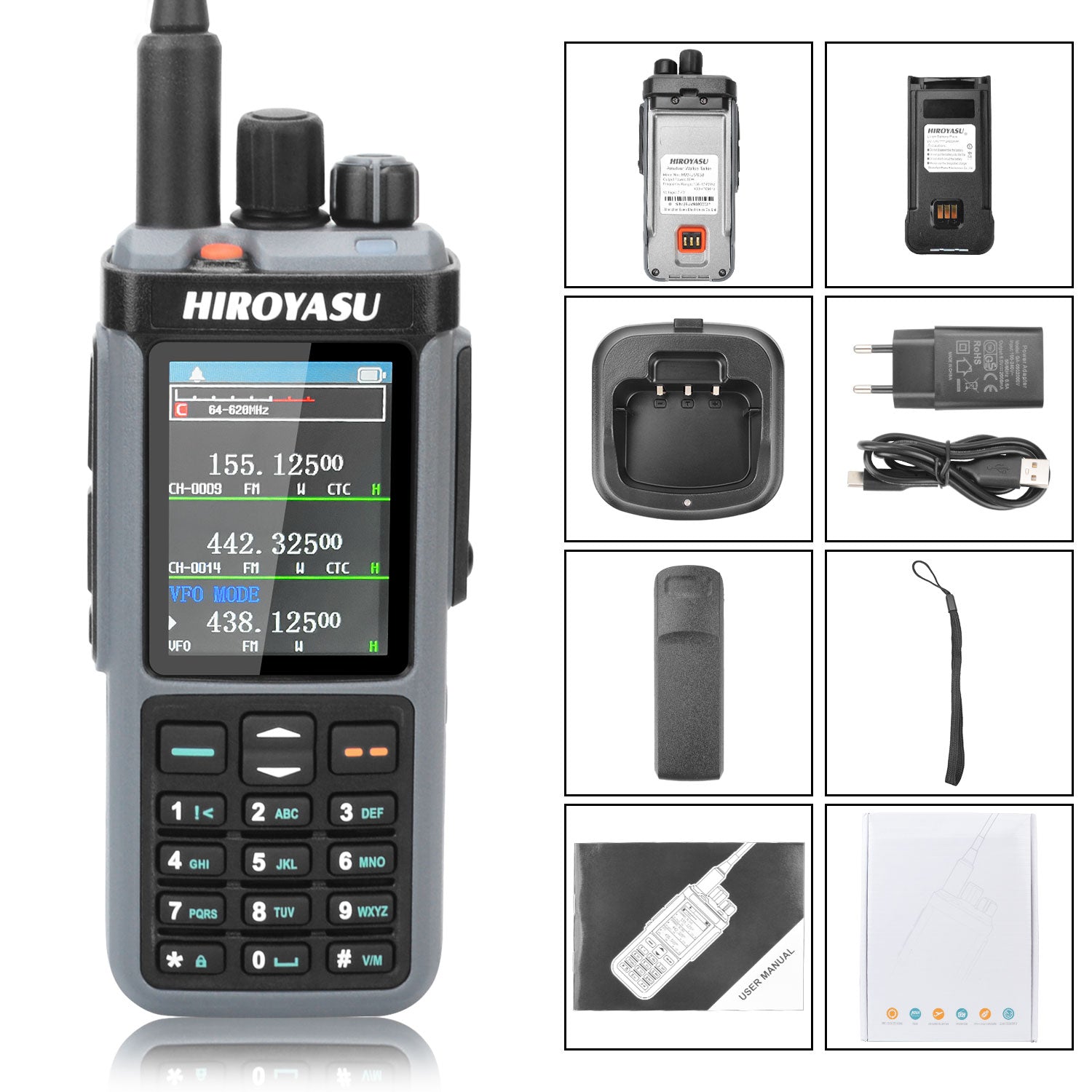

Product Type Standard Package With SW Antenna With Programming cable with SW Antenna and programming cable

Quantity

HIROYASU HW-UV938 HF Walkie Talkie SW MW LW 18-620MHz 840-1000MHz Air Band Full Band Cross-Band Repeater Scrambler NoAA AM/FM Rx Frequency Copy

Features:

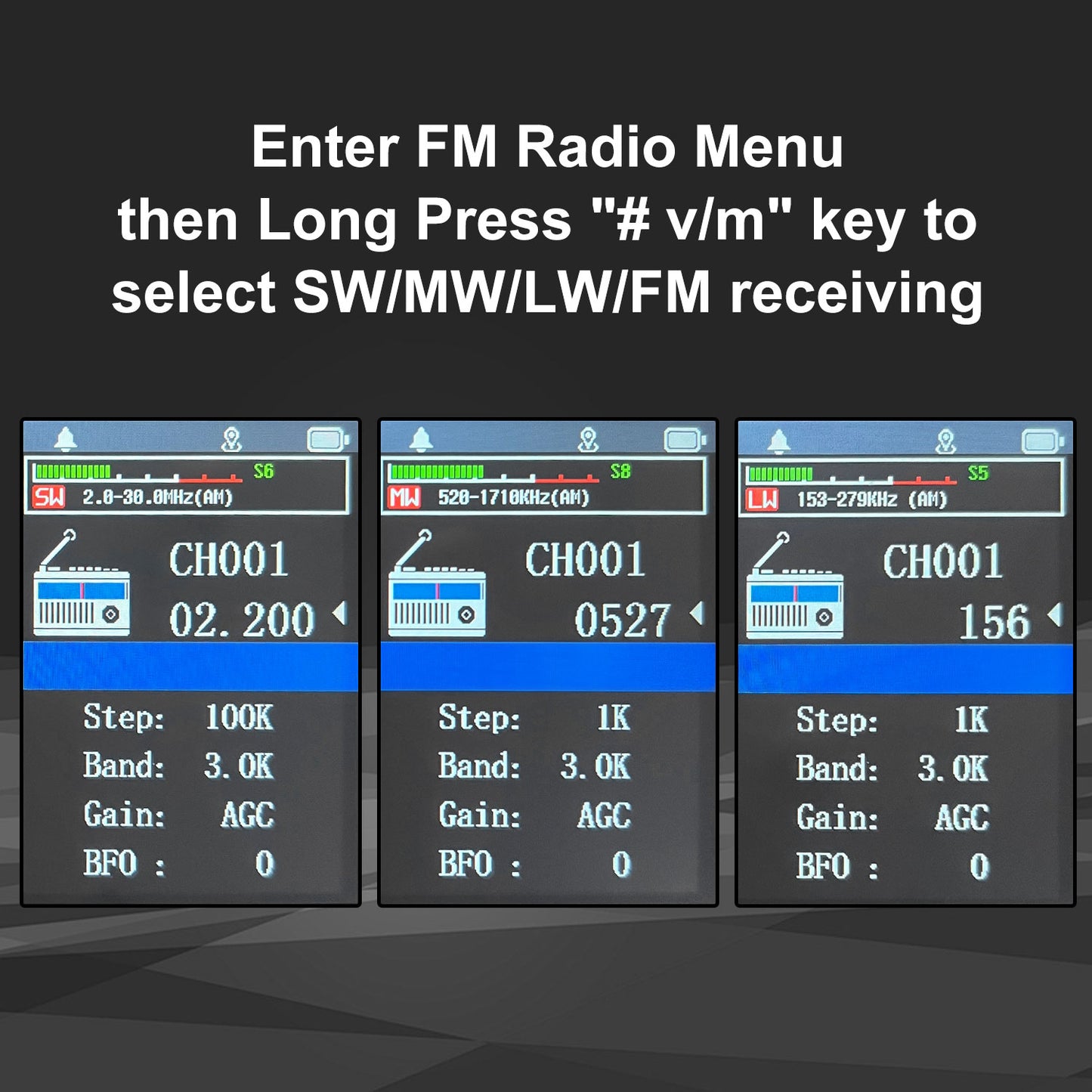

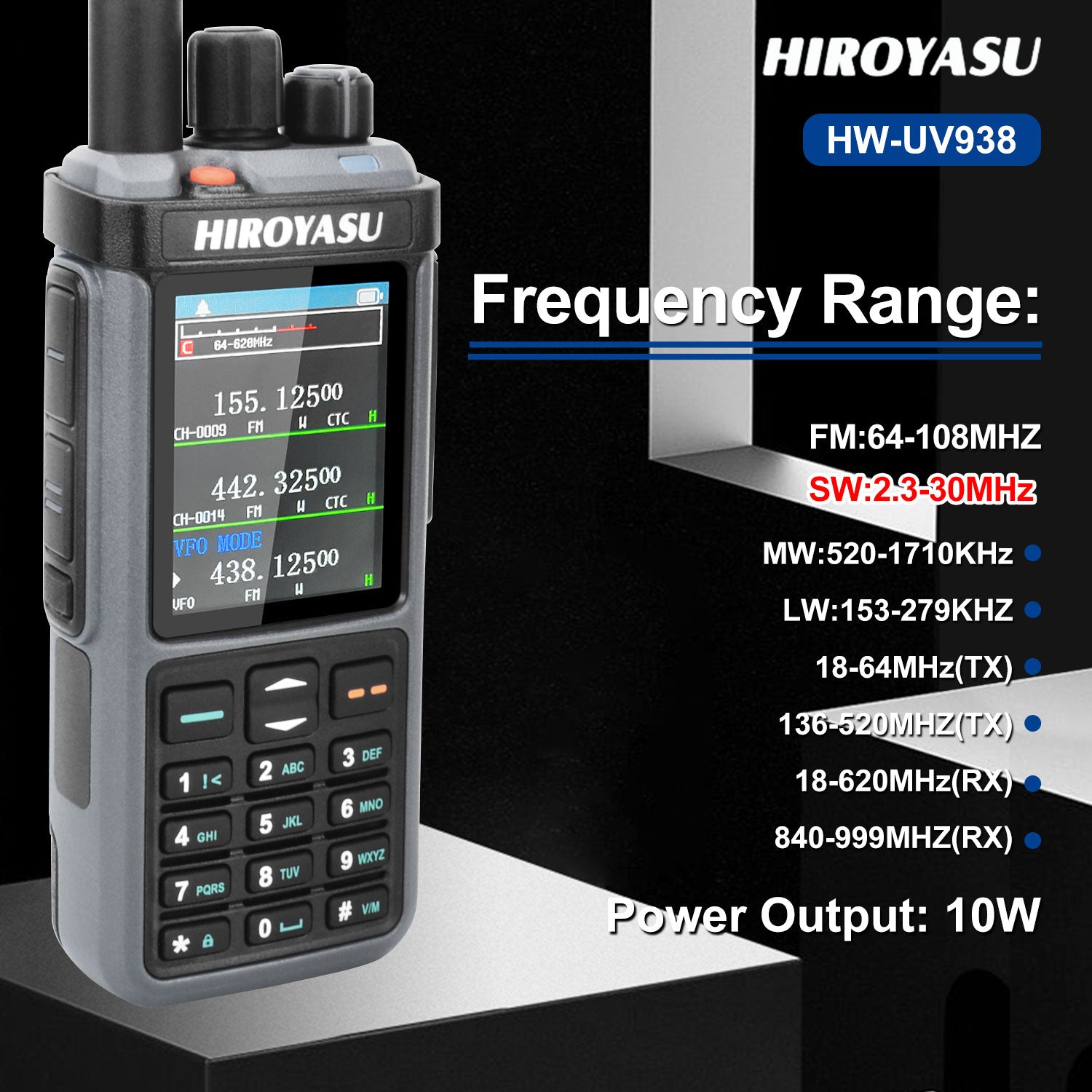

Frequency Range:

FM:64-108MHz (RX)

SW:2.3-30MHz (RX AM)

MW:520-1710KHz (RX AM)

LW:153-279KHz (RX AM)

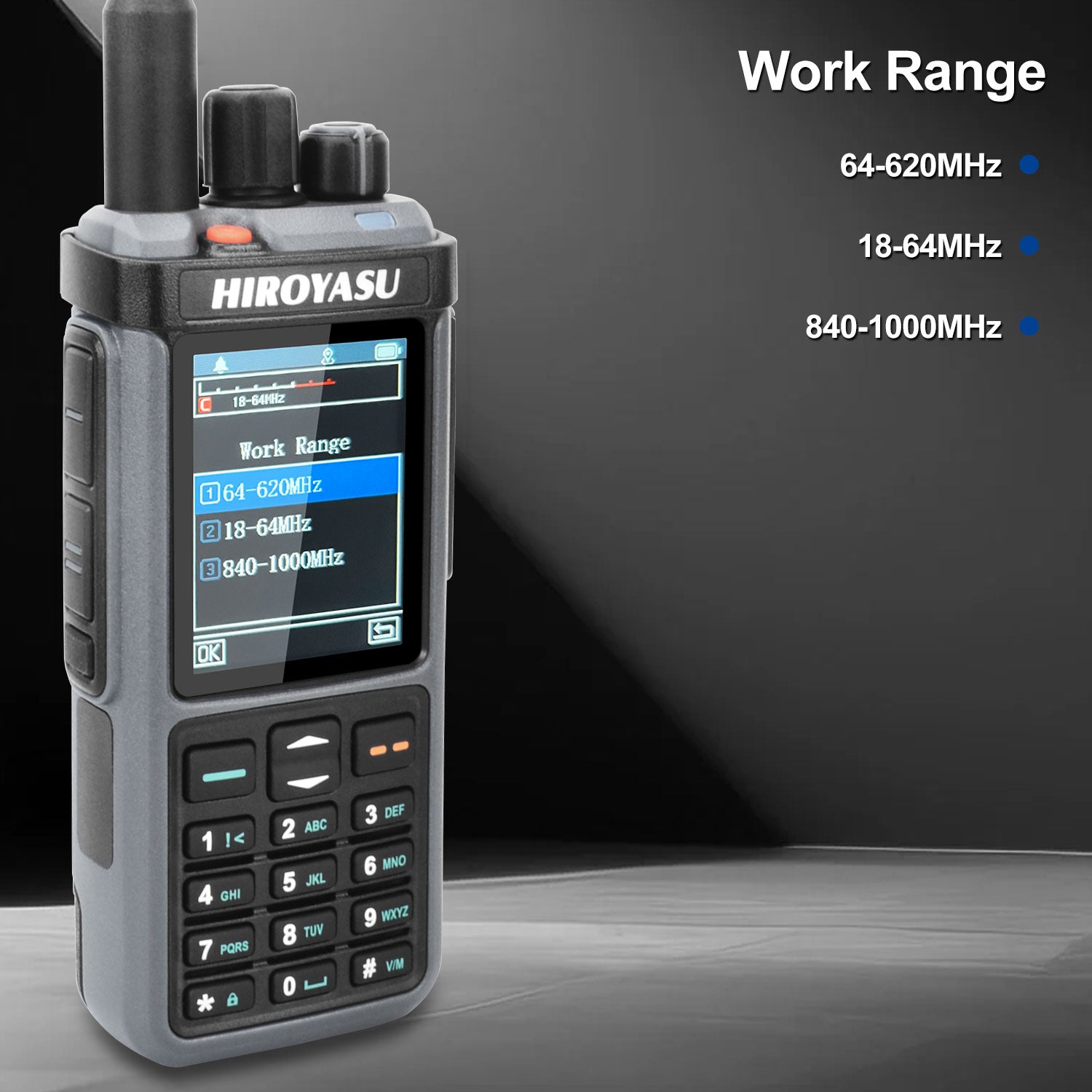

Rx: 18-620MHz,840-1000MHz

Tx:18-32MHz 136-174mhZ 400-520MHz

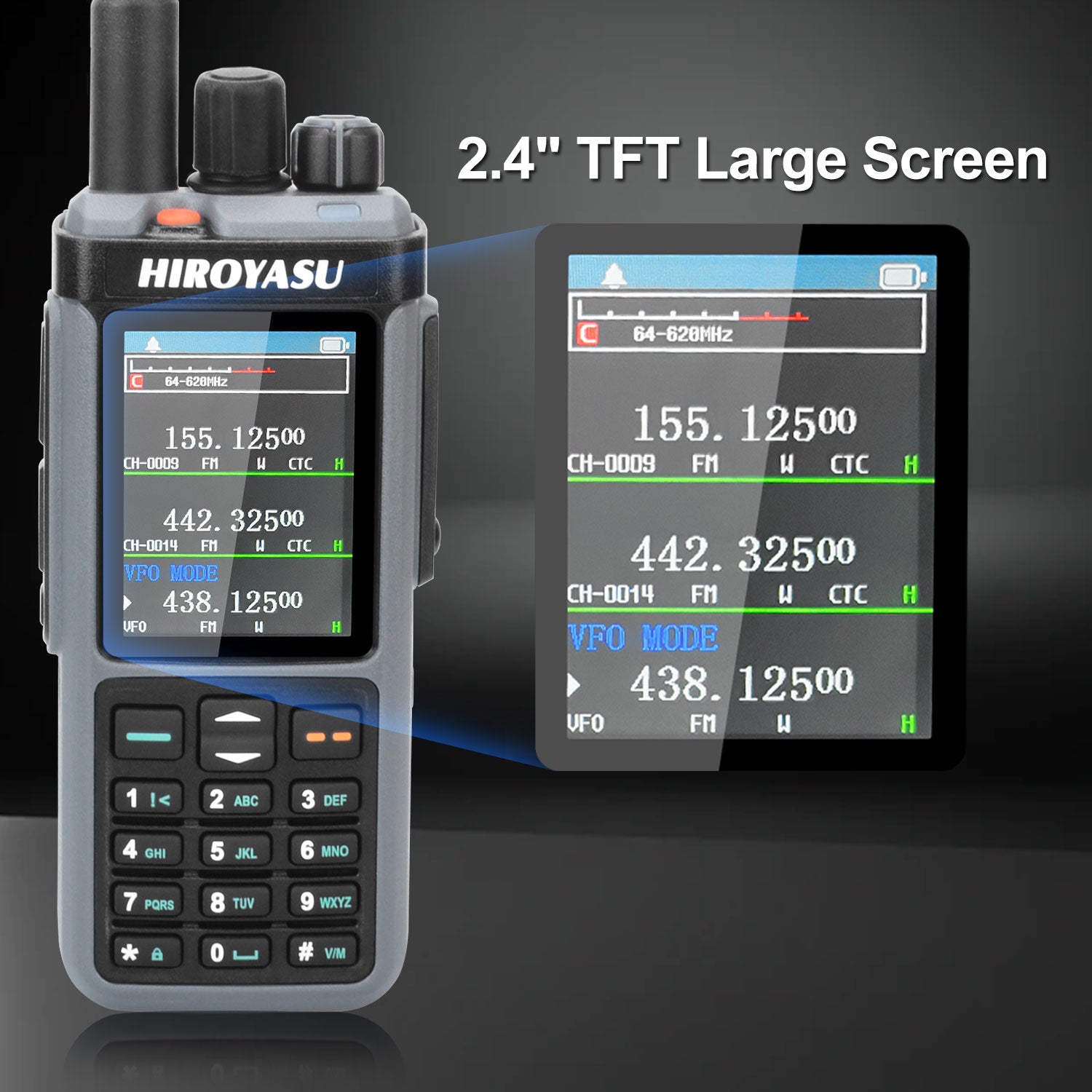

2.4 inch TFT Color LCD

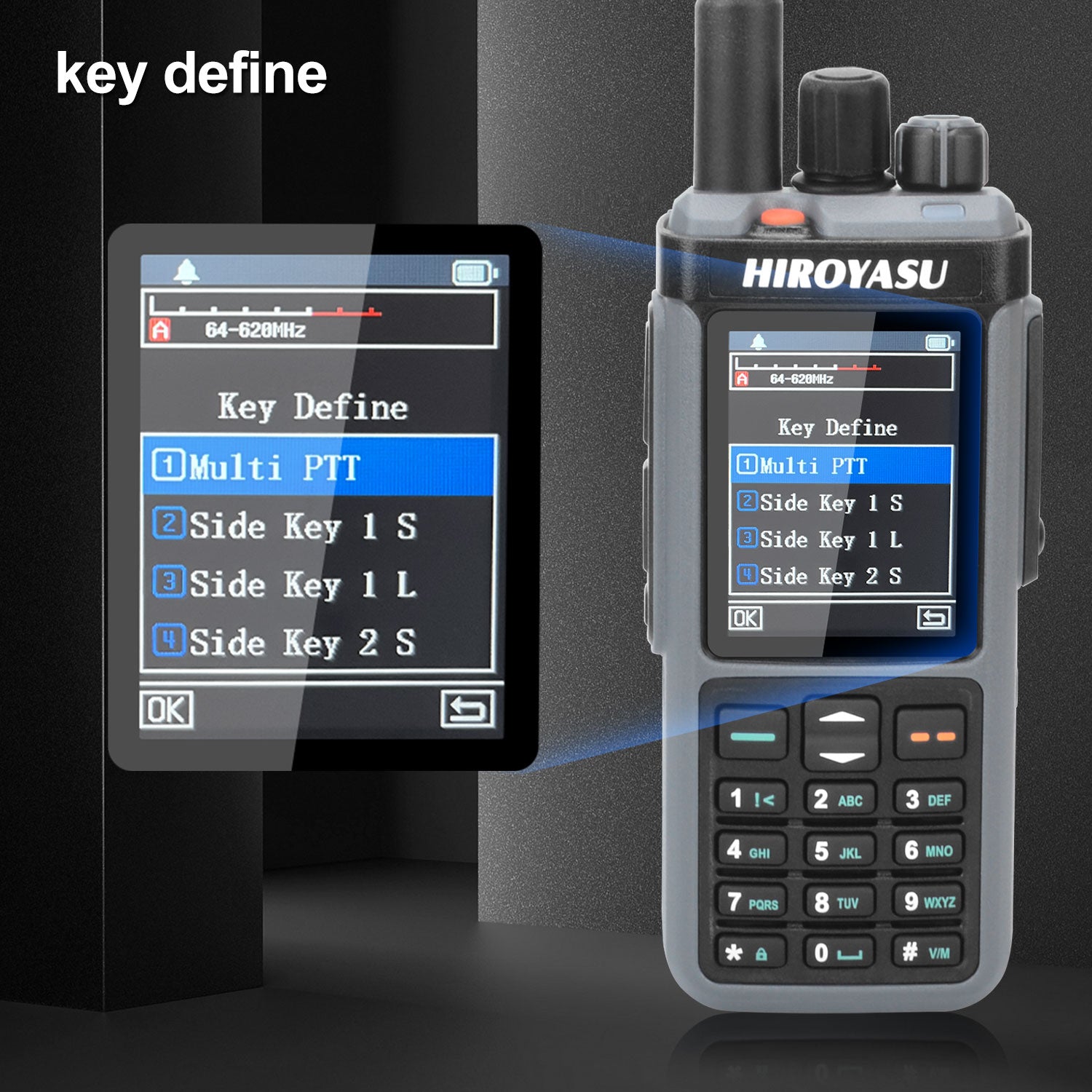

Key define, three PTT Switches

10Watt Output

1024CH

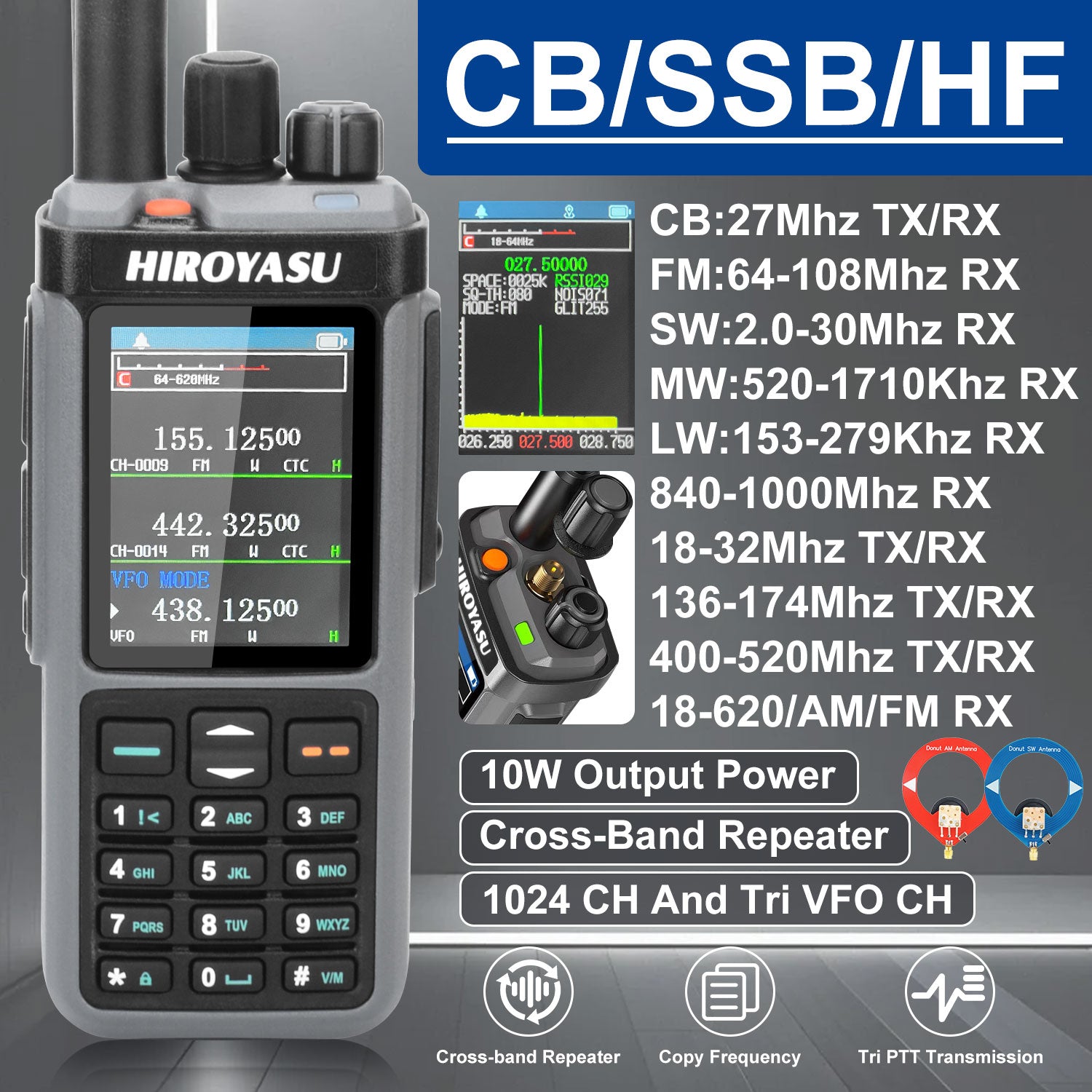

CB/SSB/HF

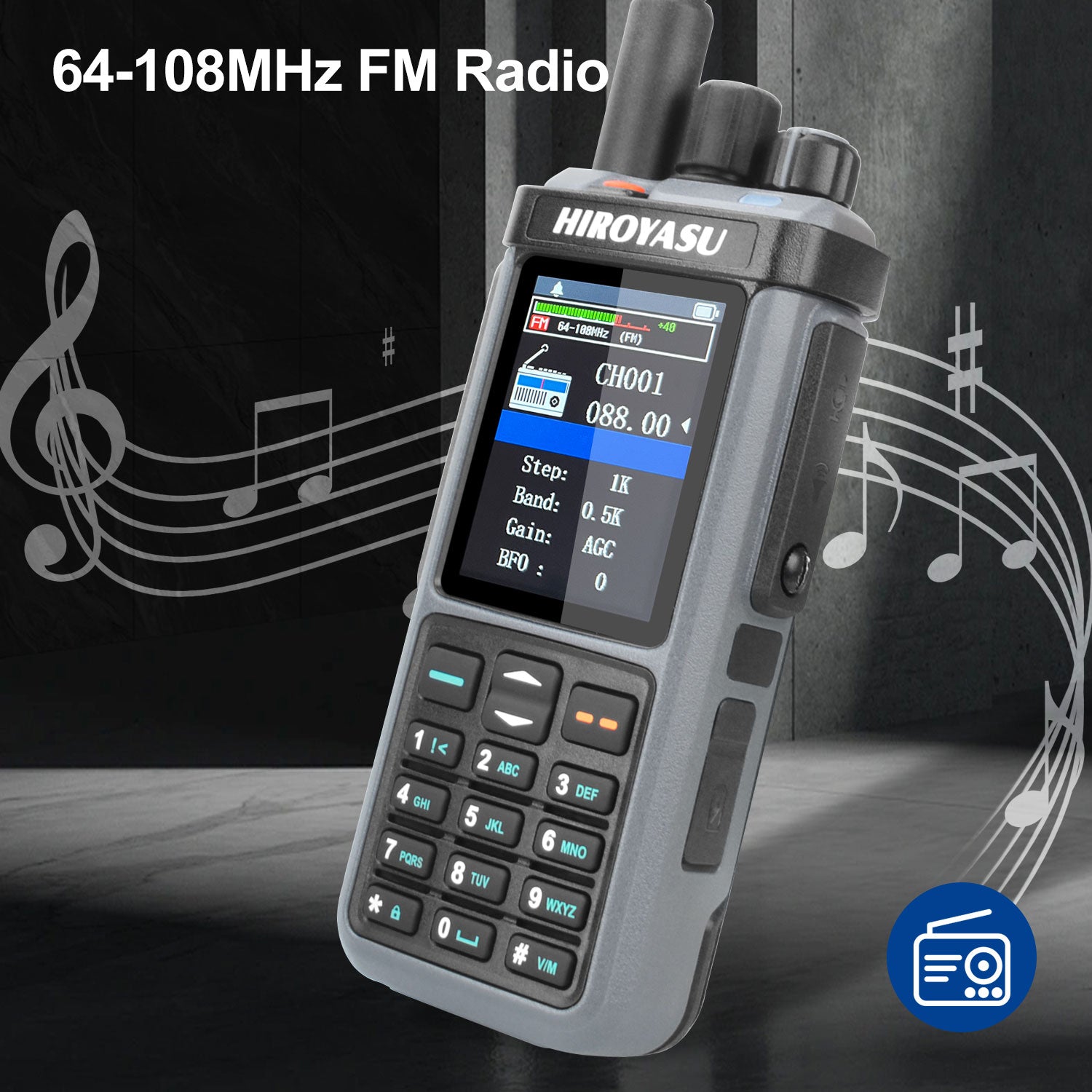

FM radio

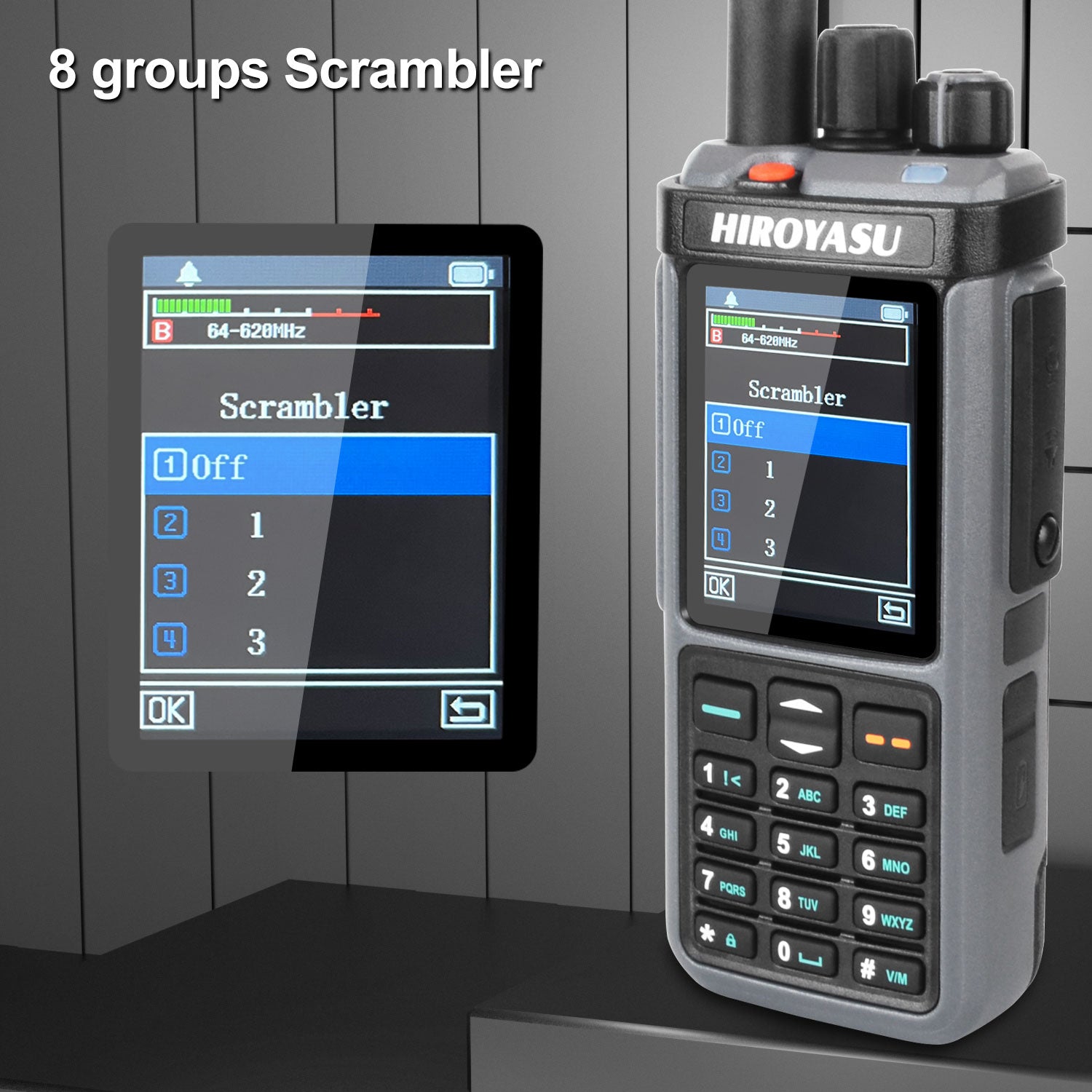

8 groups of Scramblers

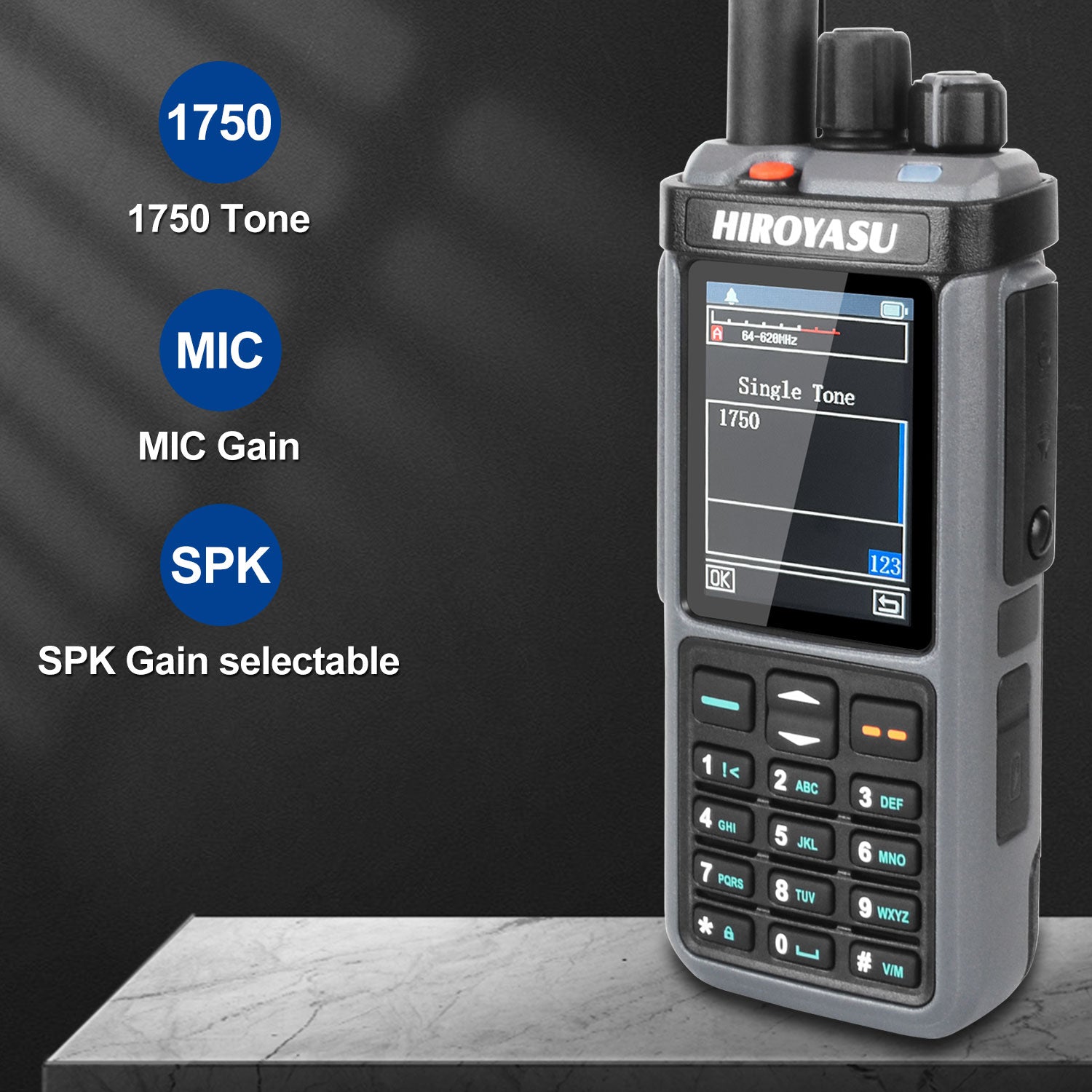

1750 Tone

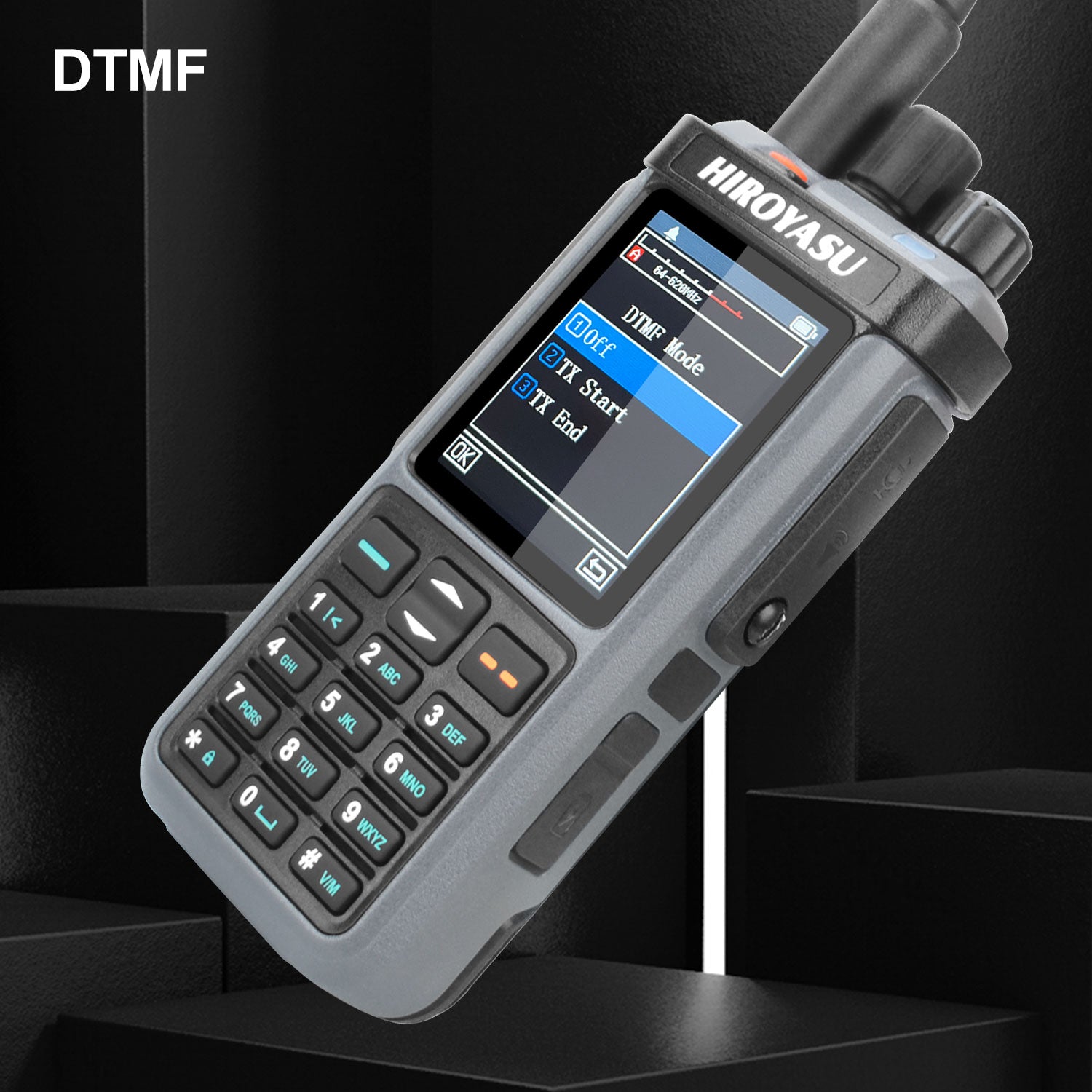

DTMF

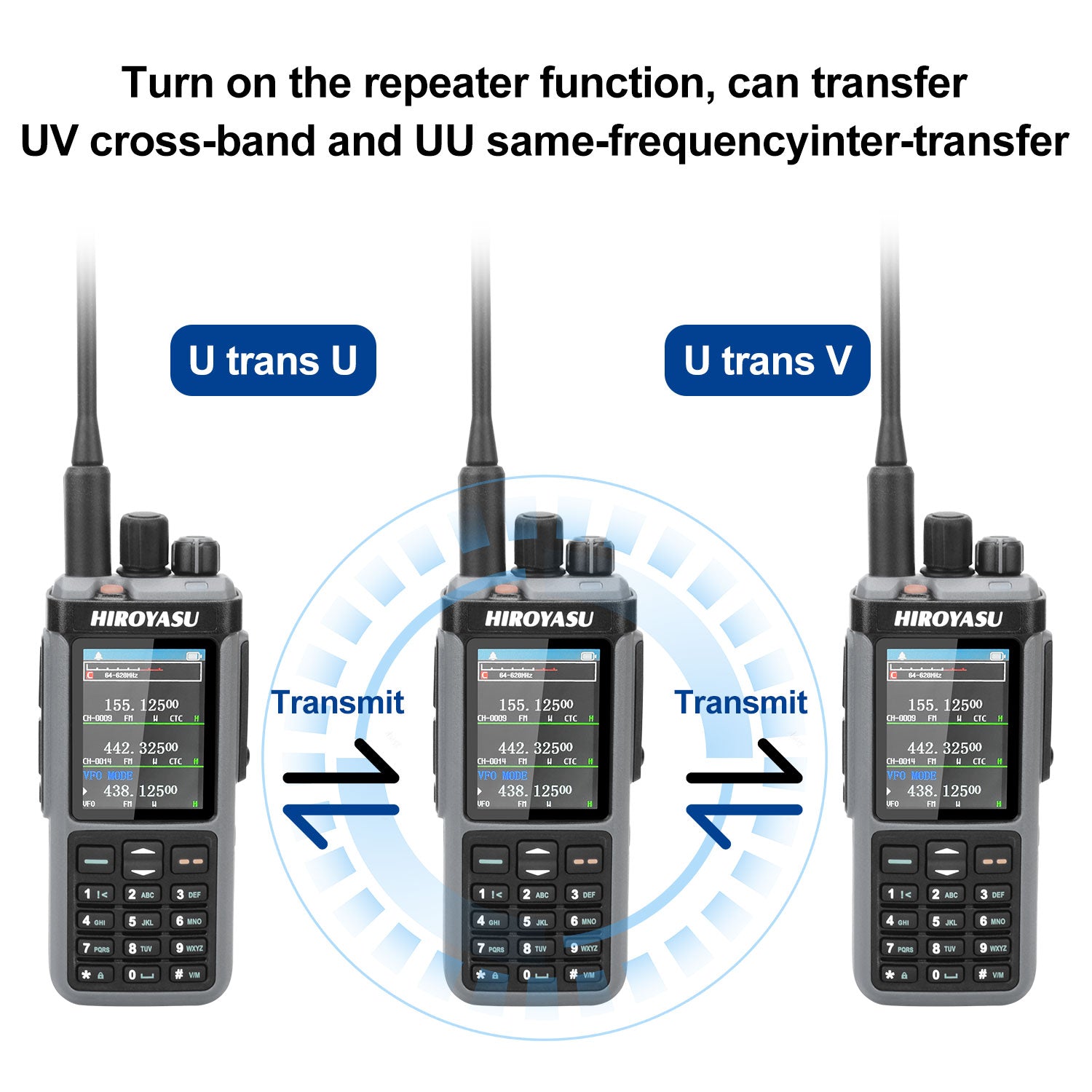

Cross Band Repeater

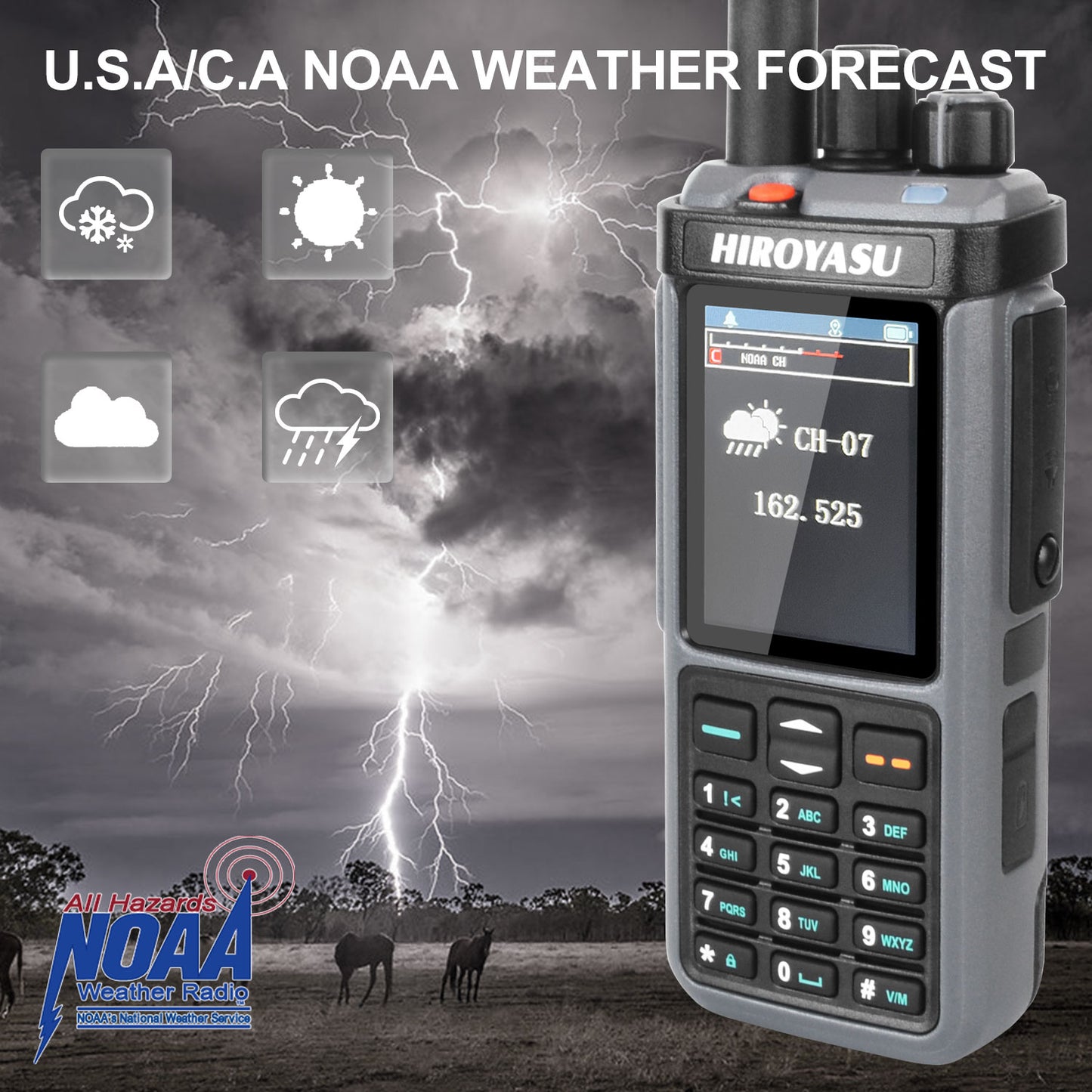

NOAA Weather forecast

MIC/Speaker Gain Adjustable

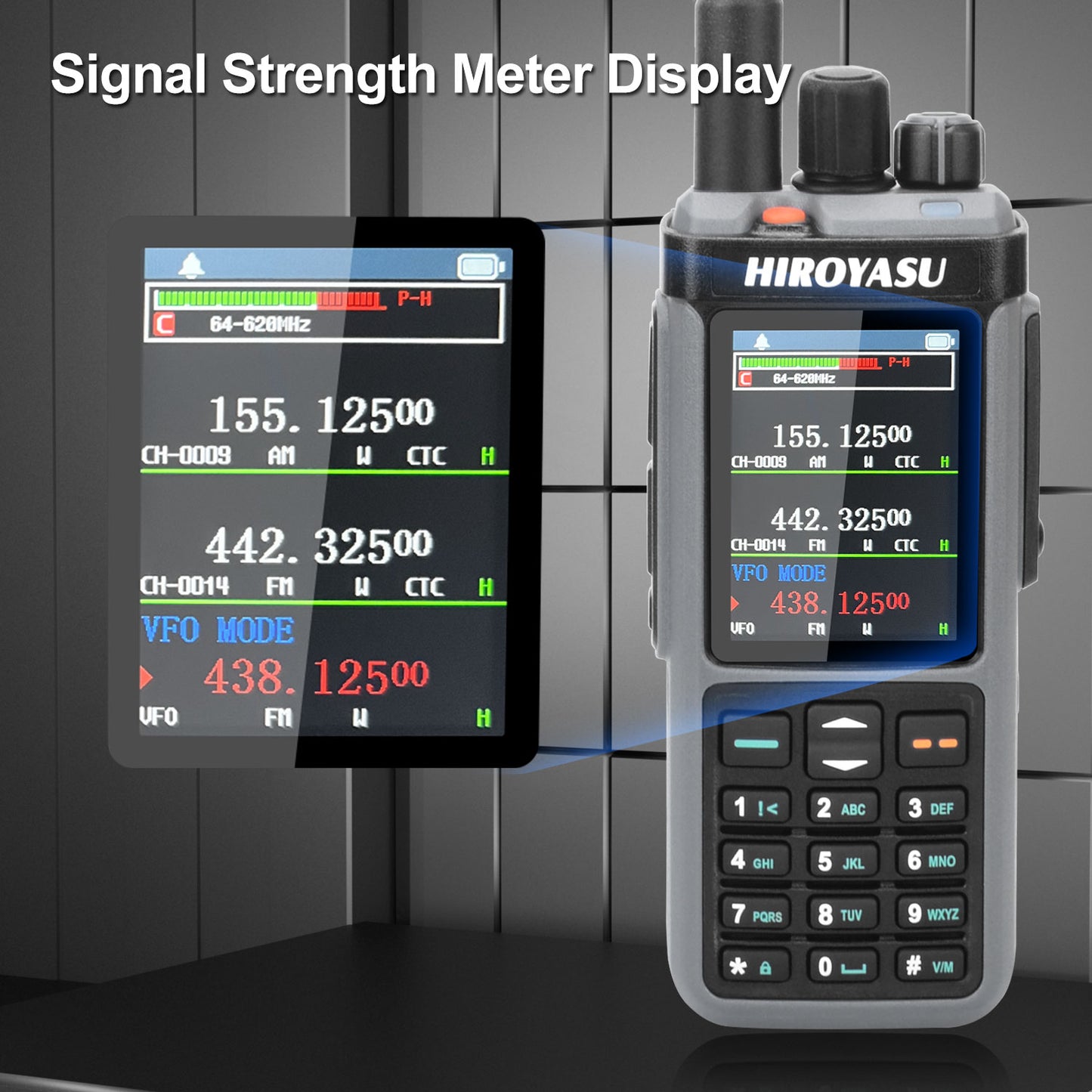

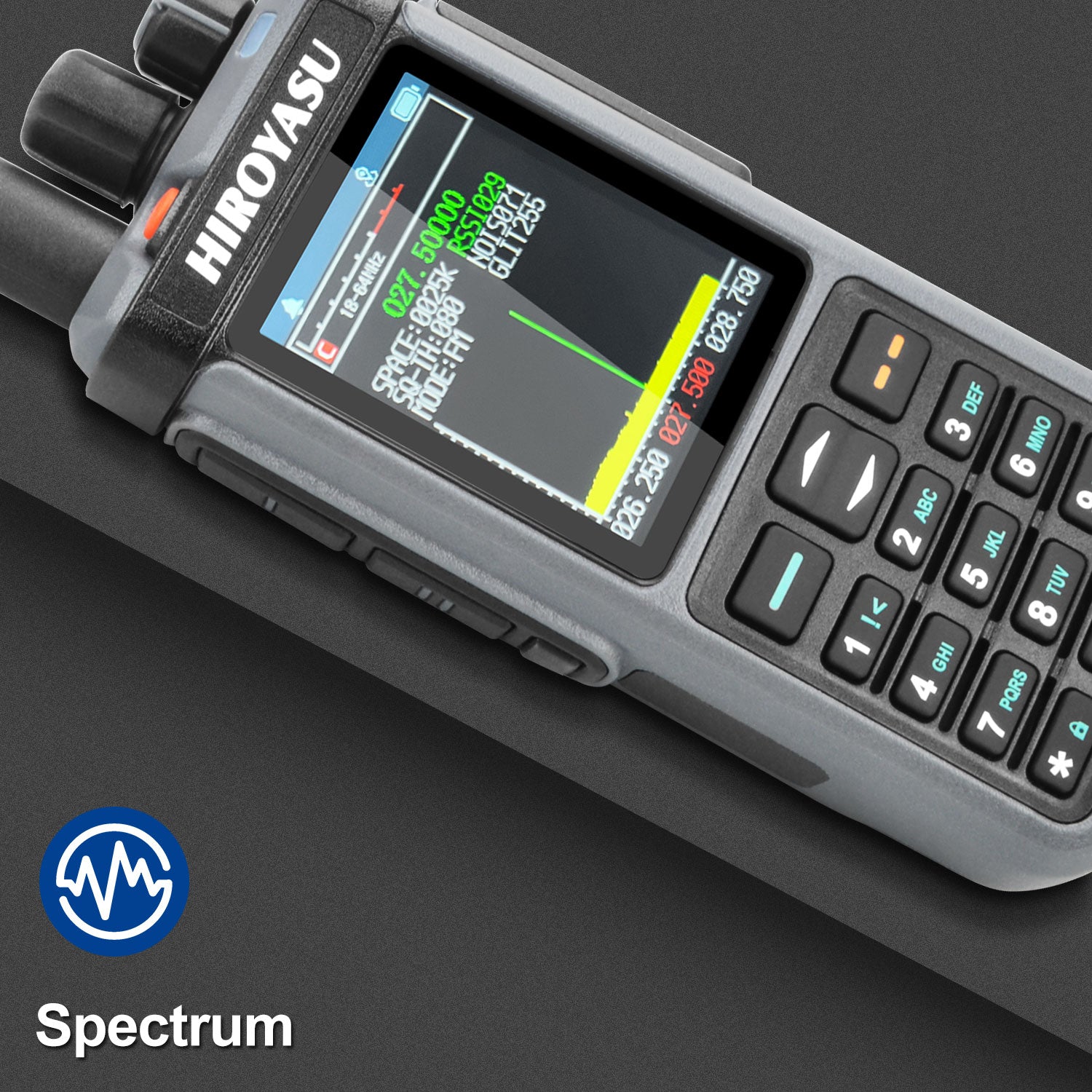

Spectrum Analyzer display

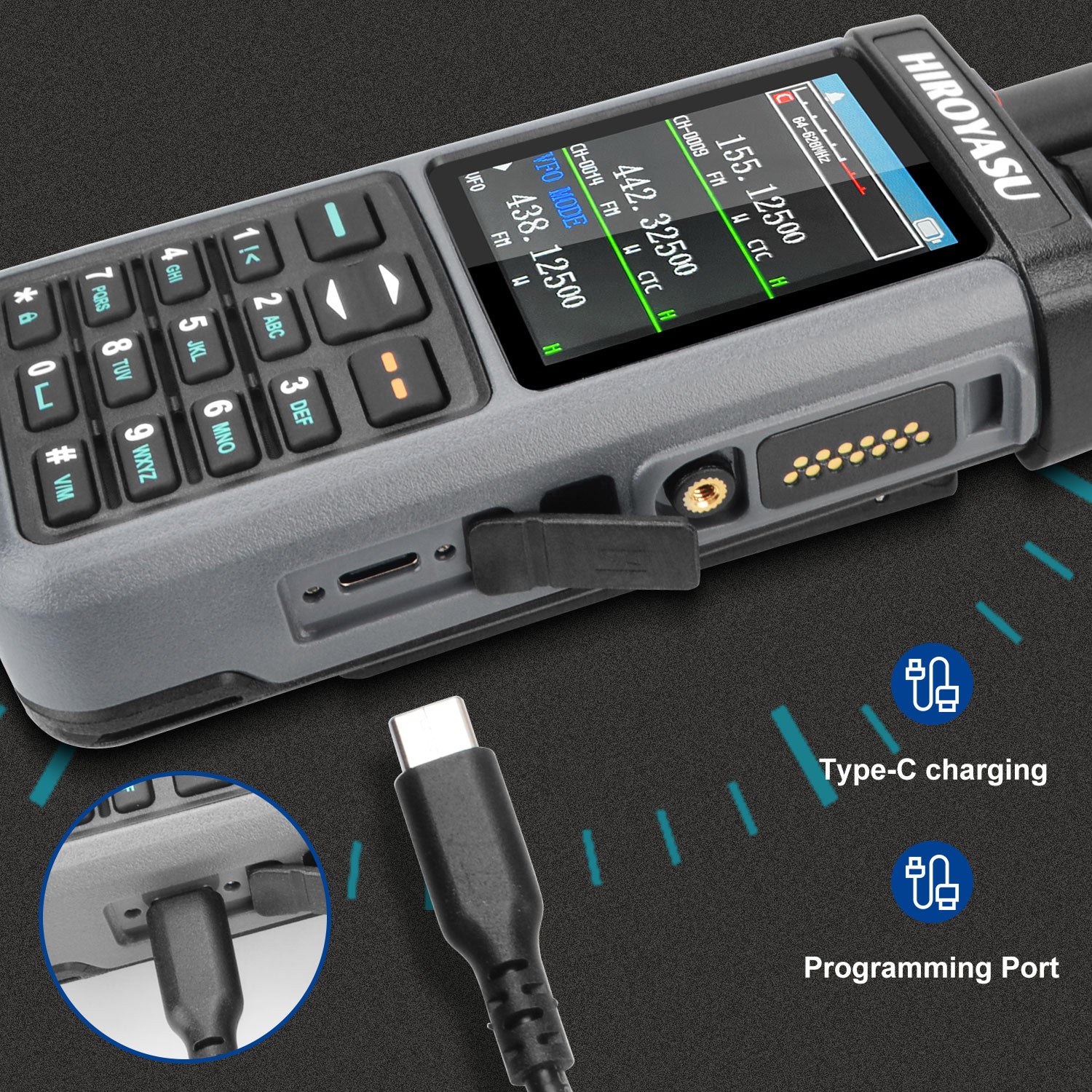

Type-C charging

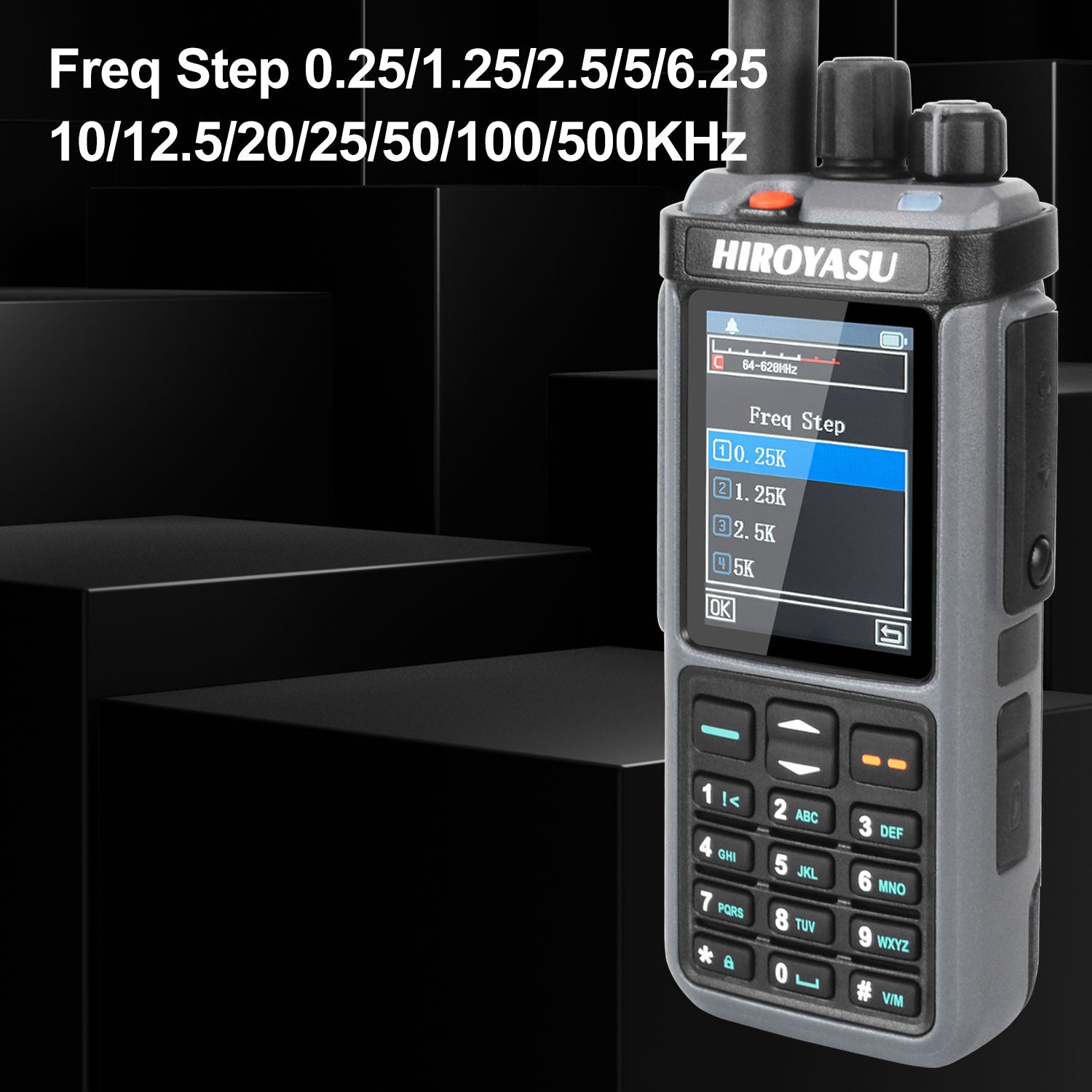

0.25K/1.25K/2.5K/5K/6.25K/10K/12.5K/20K/25K/50K/100K/500K/1M/5M/ Frequency Step

Multi Standby

Talkaround

Scan

Vox

Roger Beep

Frequency Detect

CTC/DCS Scan

AM/FM Rx

DCS Encryption

TOT

APO

Specifications:

General
Freq Range	FM:64-108MHz SW:2.3-30MHz MW:520-1710KHz LW:153-279KHz Rx: 18-620MHz,840-1000MHz Tx: 18-32MHz,136-174MHz,400-520MHz
Channel Capacity	1024Channels+3 VFO Channels
Channel Spacing (W/N)	Analog:25kHz/12.5kHz,Digital:12.5K

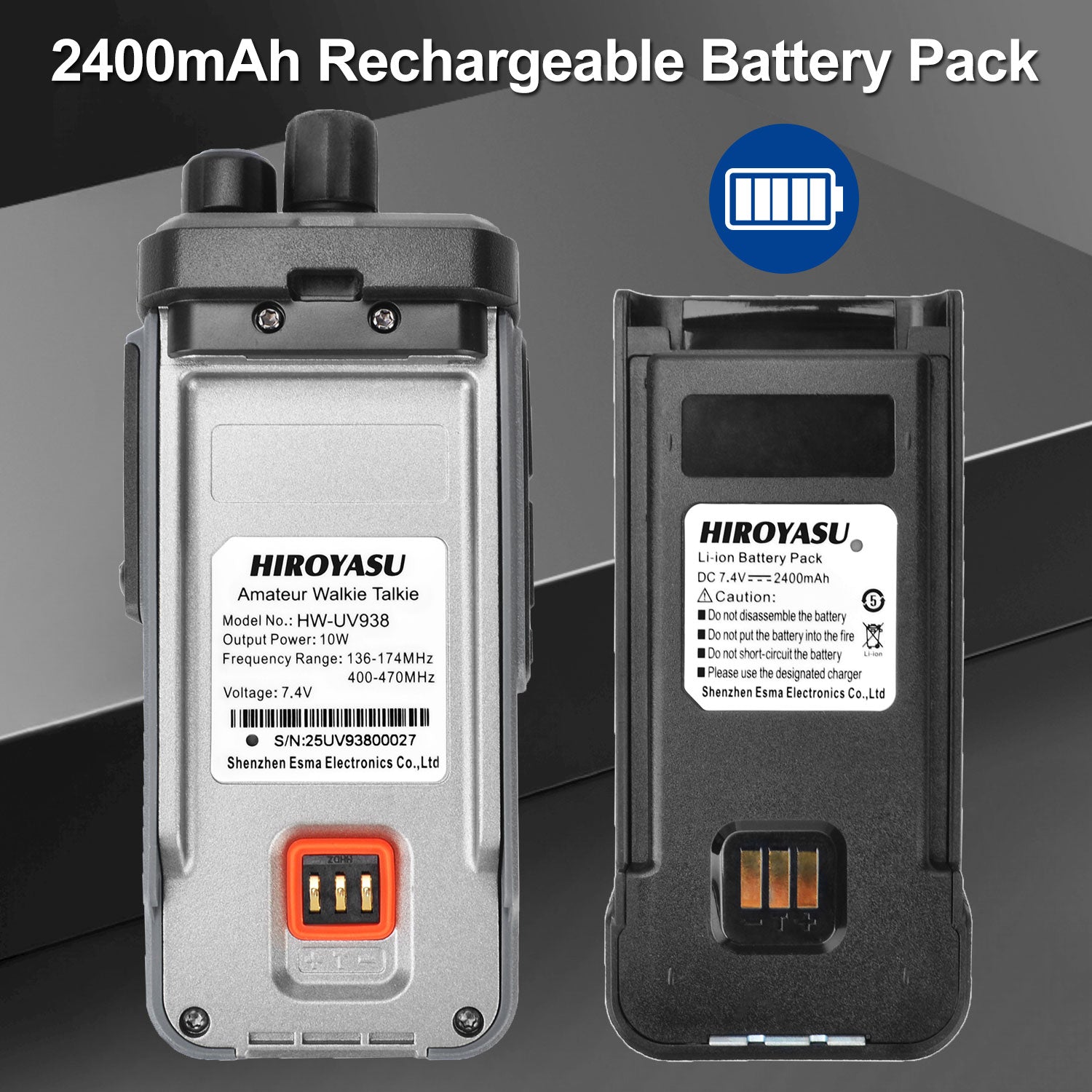

Voltage	7.4V DC
Working Mode	Same Frequency simplex,different frequency simplex
Antenna	Removable Antenna
Frequency Stability	±2.5ppm
Working Temperature	-20°c~60°c

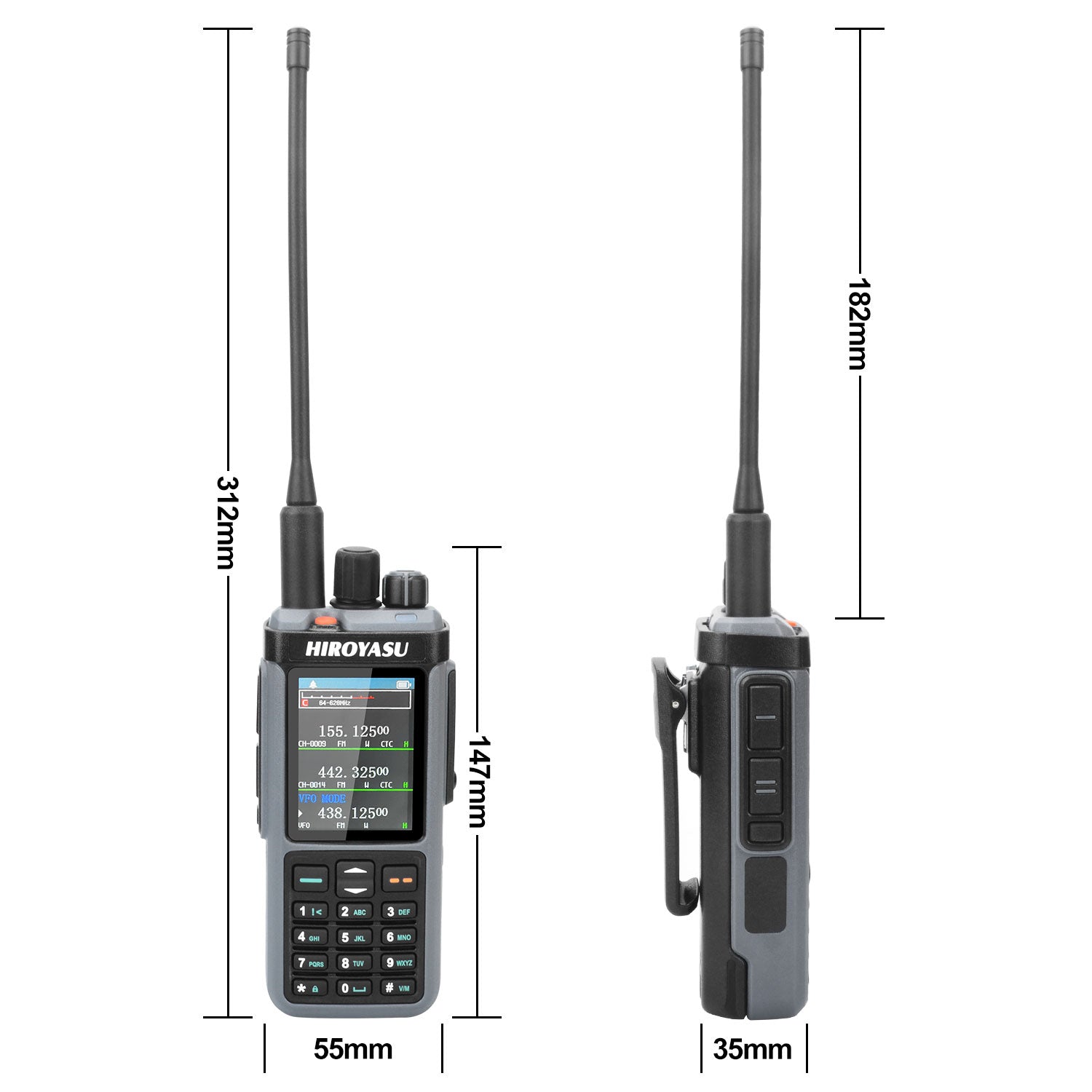

Dimension	1496437mm
Weight	About 307g
Transmitting
Power	≤10W
Modulation Mode	F3E
Maximum Deviation (W/N)	≤5KHz/≤2.5KHz
SNR(W/N)	-45dB/-40dB
Tx Current	≤3000mA
Receiving
Sensitivity(W/N)	0.22uV/0.25Uv 12dB SINAD
Inter Modulation (W/N)	65dB/60dB
Audio Distortion	<5%
Audio Output Power	≤1W(16ohm)
RX Current	≤350mA
Standby Current	≤100mA
Note: The above parameters are subject to change due to technical improvement without prior notice or liability.
