HIROYASU IC-980Pro Max 2m/70cm VHF UHF 144/430MHz FM/AM Dual Band DTMF 1750Hz Scrambler Vox Amateur Mobile Radio
It is an upgraded Edition of HIROYASU IC-980Pro Mobile Radio.
Please send us your email address for sending CPS.

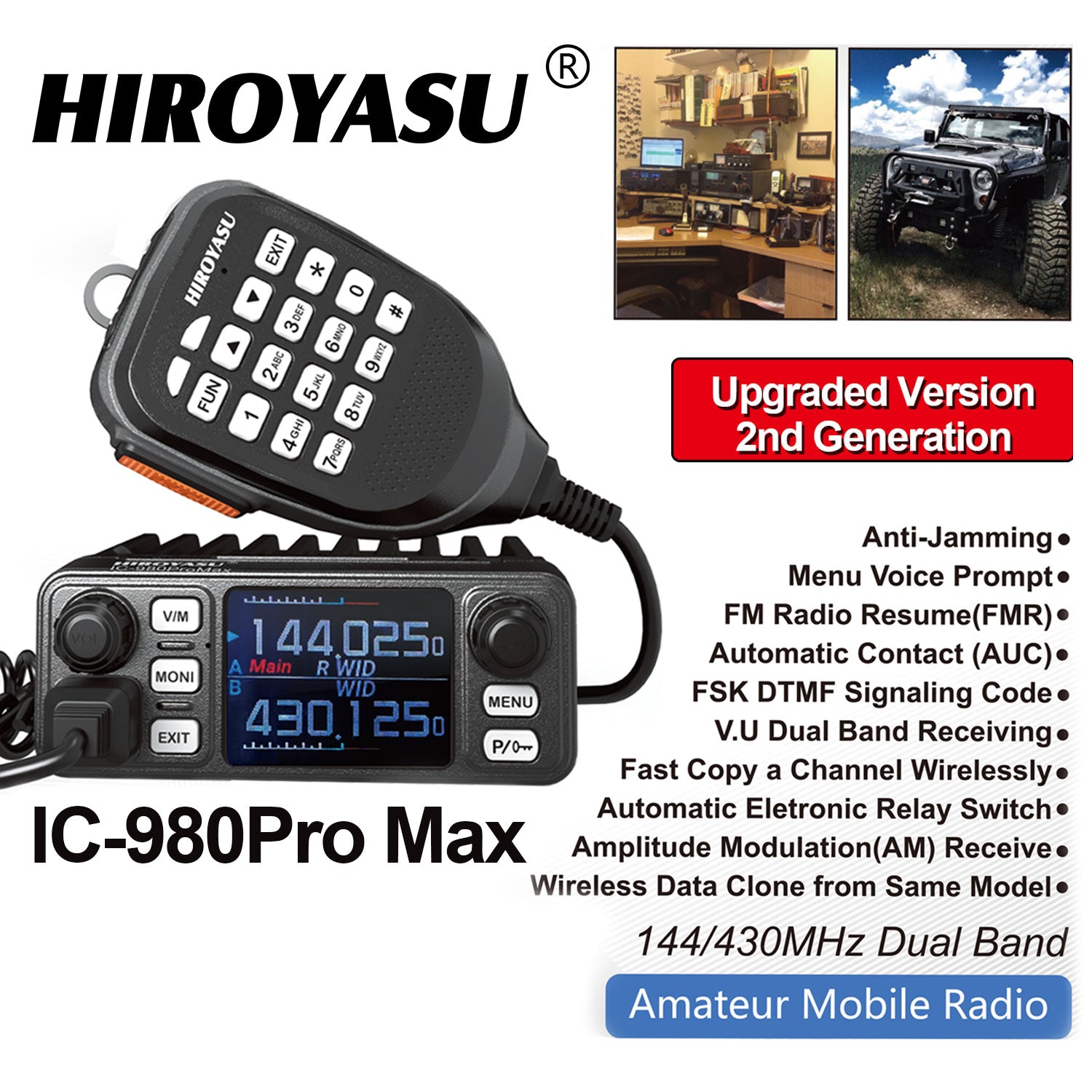

Upgraded Features:

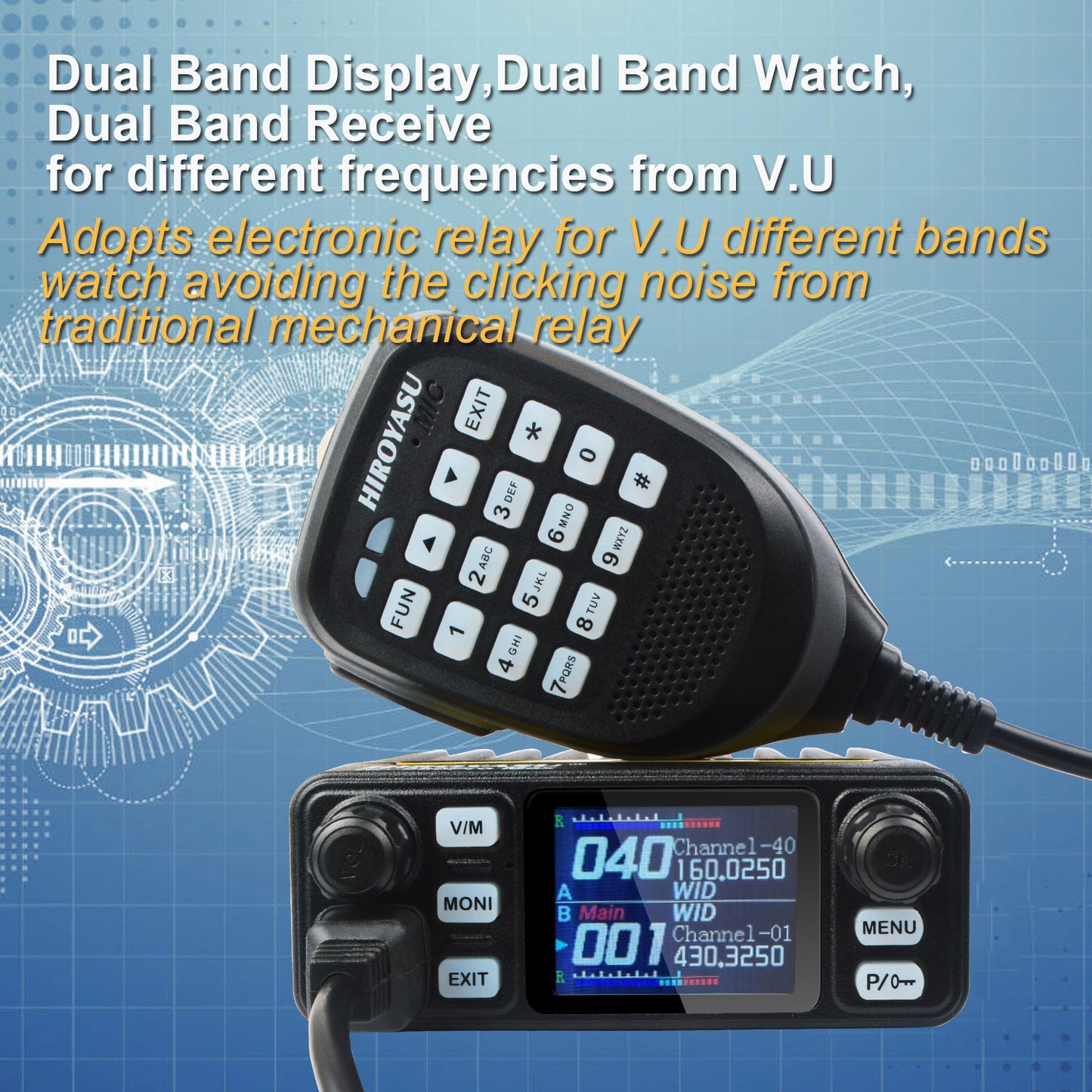

1. Electronic relay (without any clicking noise in dual watch mode)
2. Dual Receiving for V.U different bands
Dual Band Display,Dual Band Watch,Dual Band Receive for different frequencies from V.U Bands

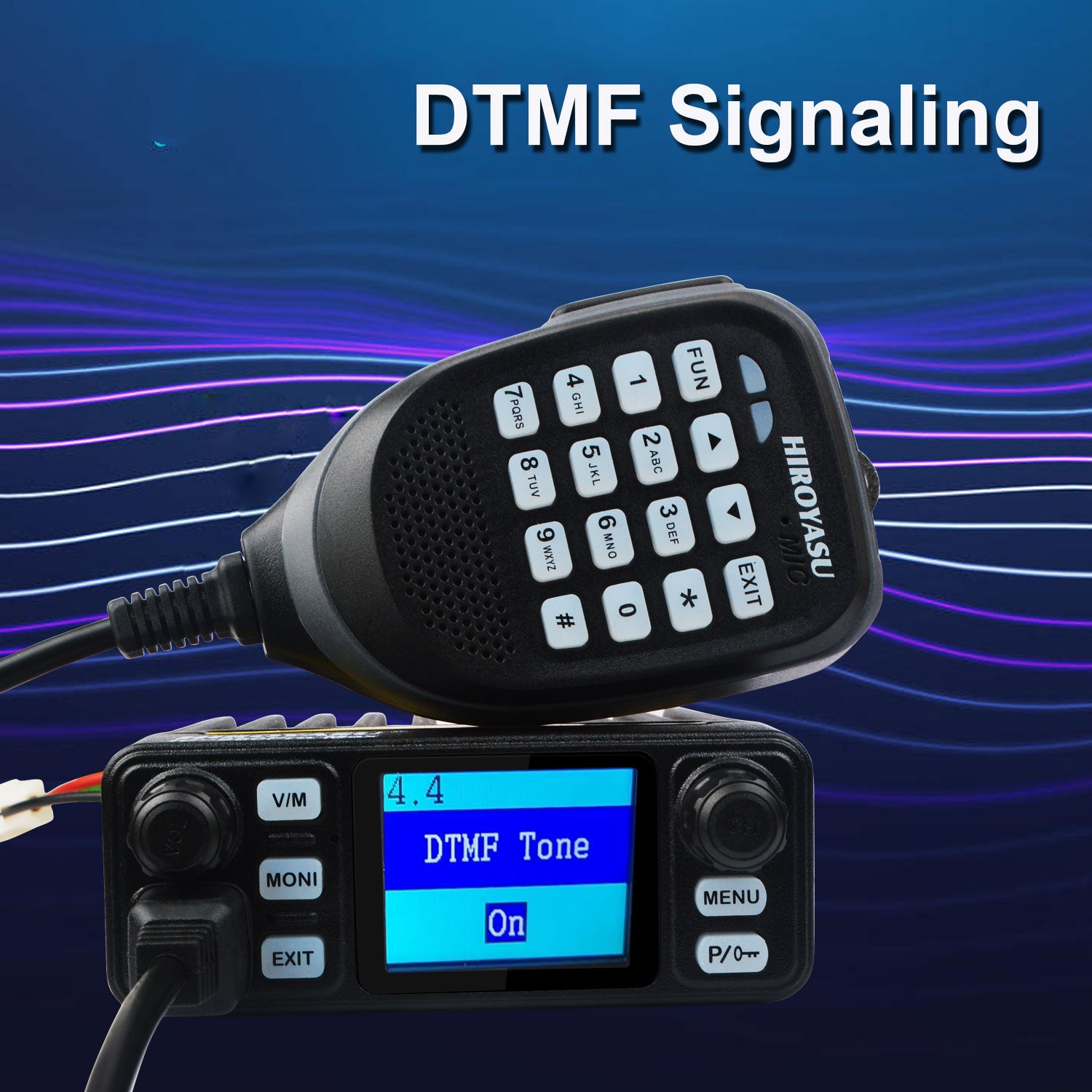

3. FSK DTMF Signaling

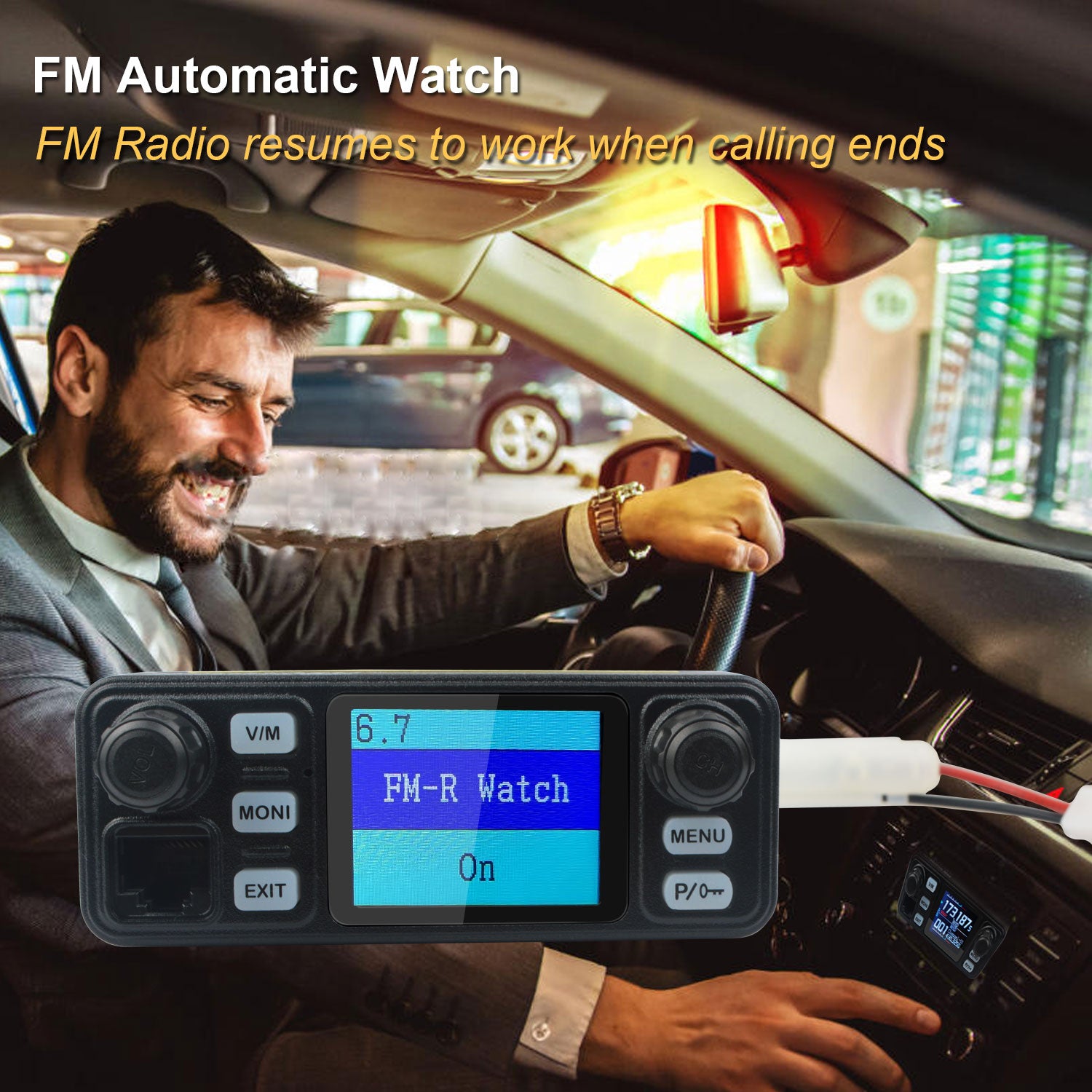

4. FM Radio Resume (FMR)
FM Radio resumes to work when calling ends.

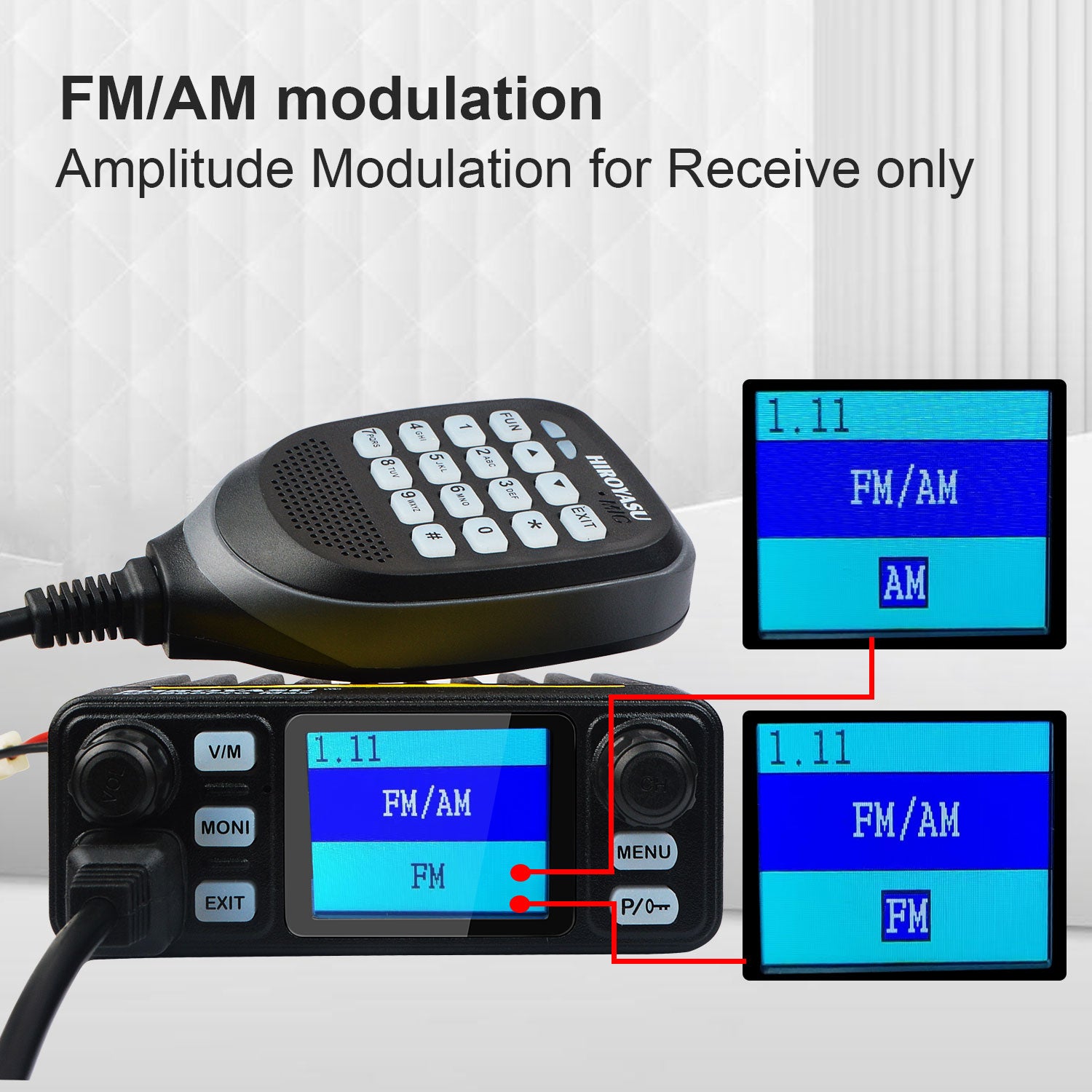

5. FM/AM Modulation
Amplitude Modulation for Receive only

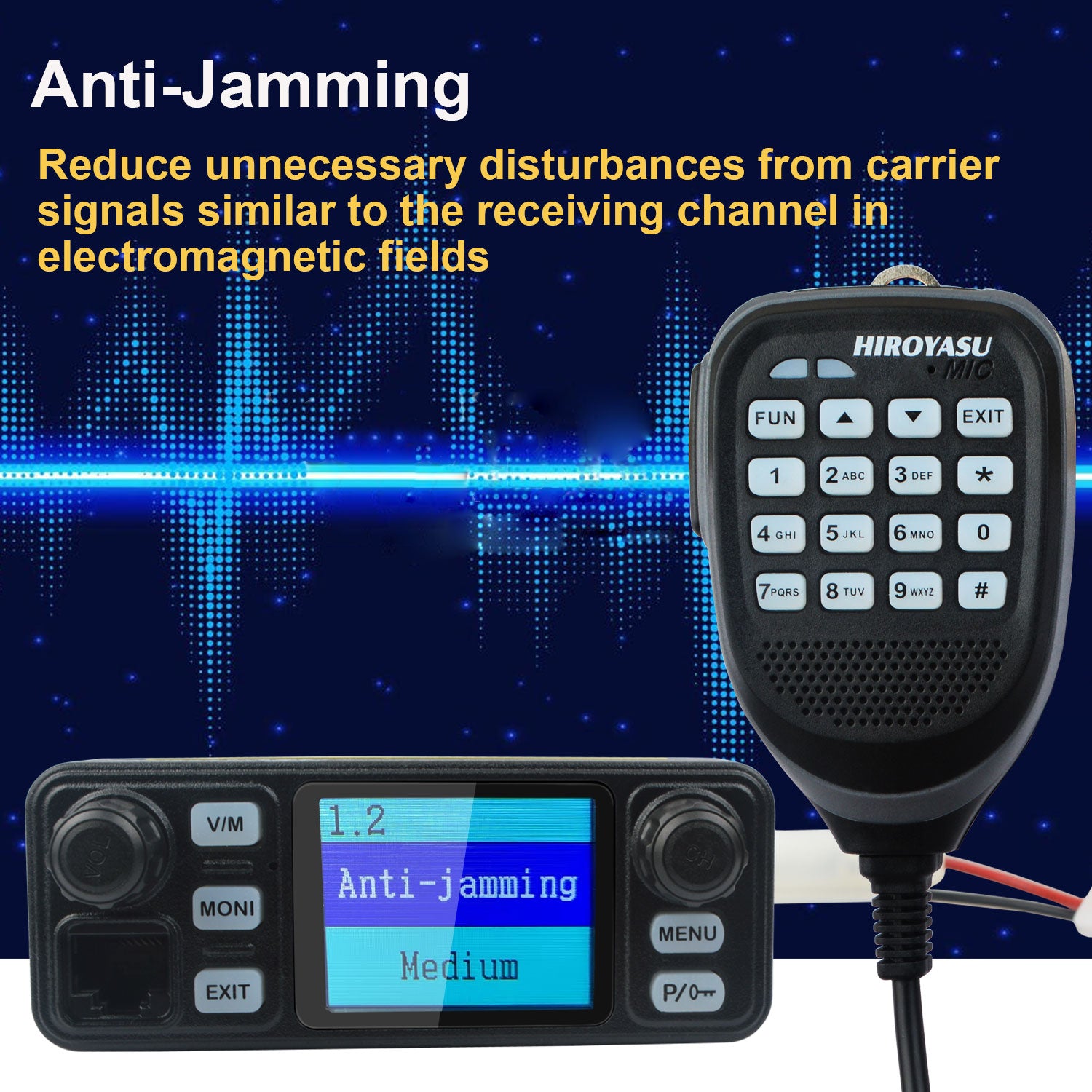

6. Anti-Jamming
Reduce unnecessary disturbances from carrier signals similar to the receiving channel in electromagnetic fields

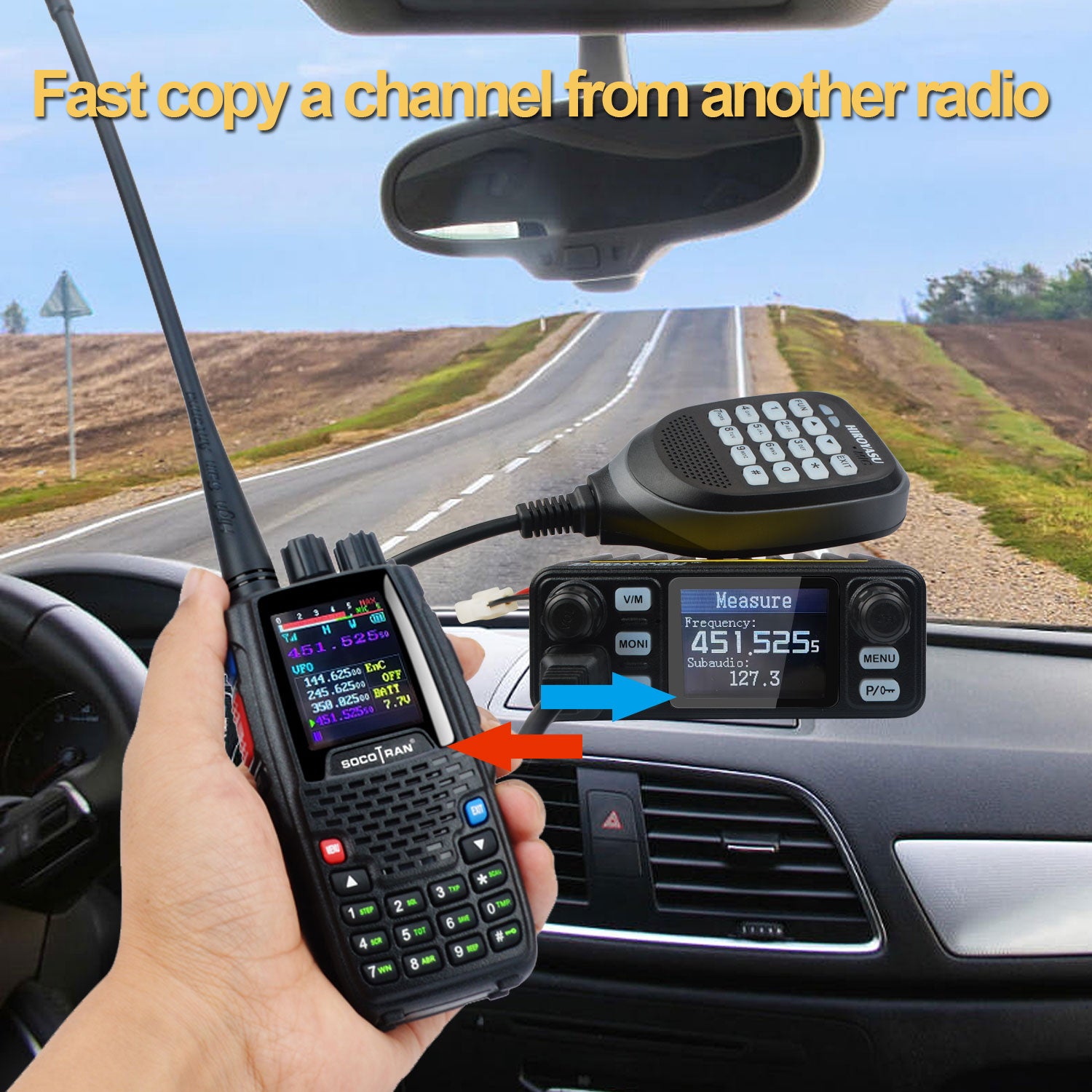

7. Fast copy a channel wireless from other radios

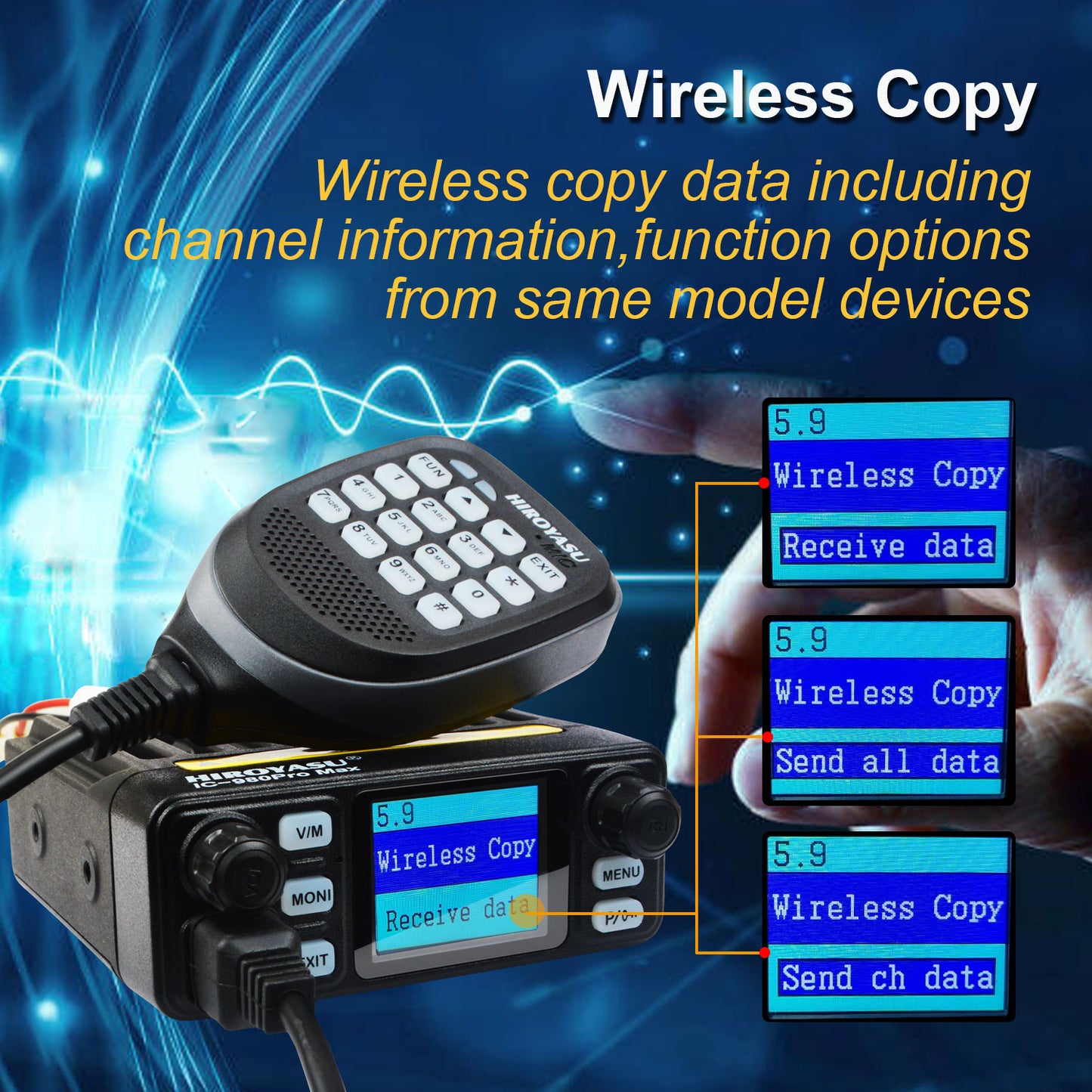

8. Wireless Clone from same model radio
Wireless copy data including channel information,function options from same model devices

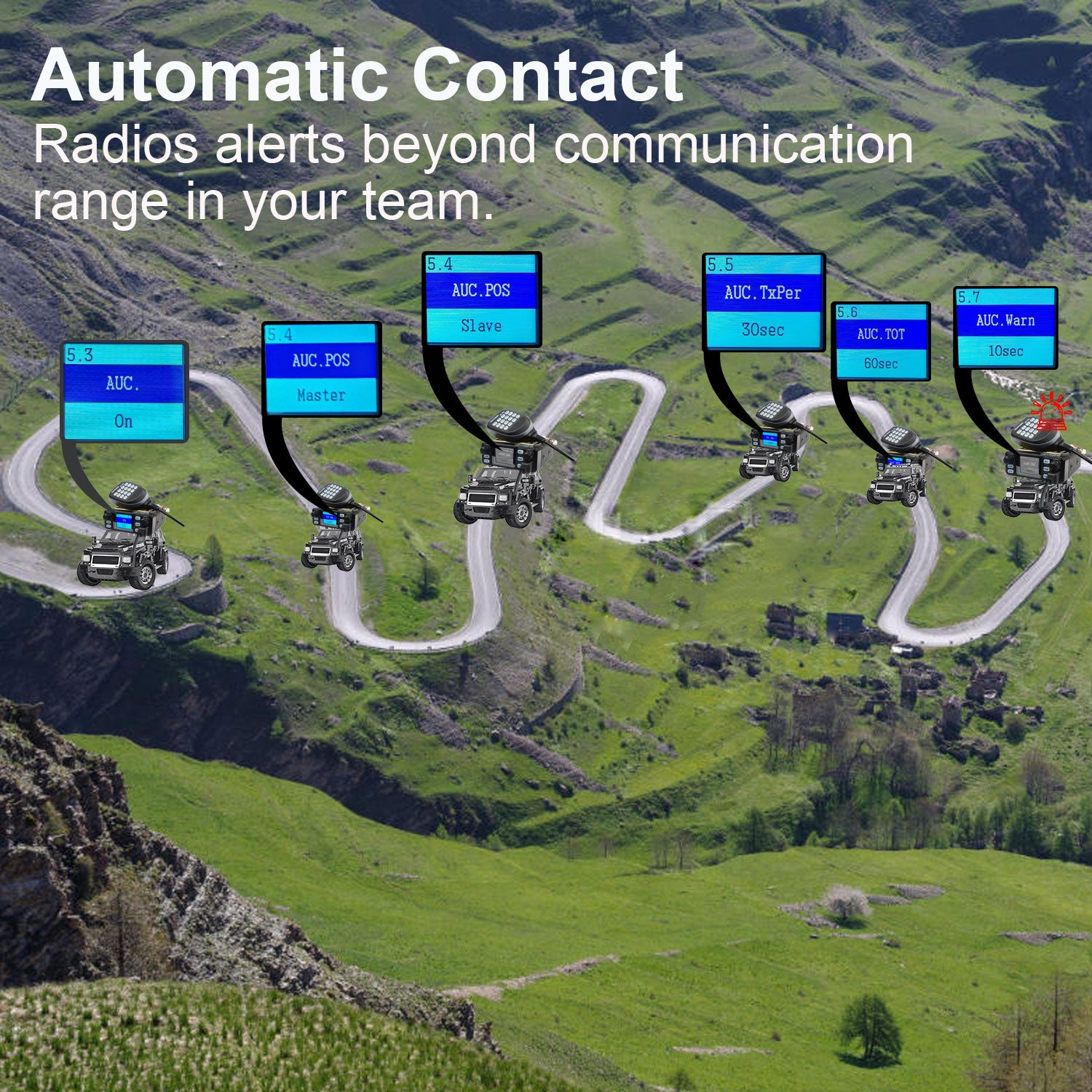

9. Automatic contact (AUC)
radios alerts beyond communication range in your team.
10. Menu Voice Prompt

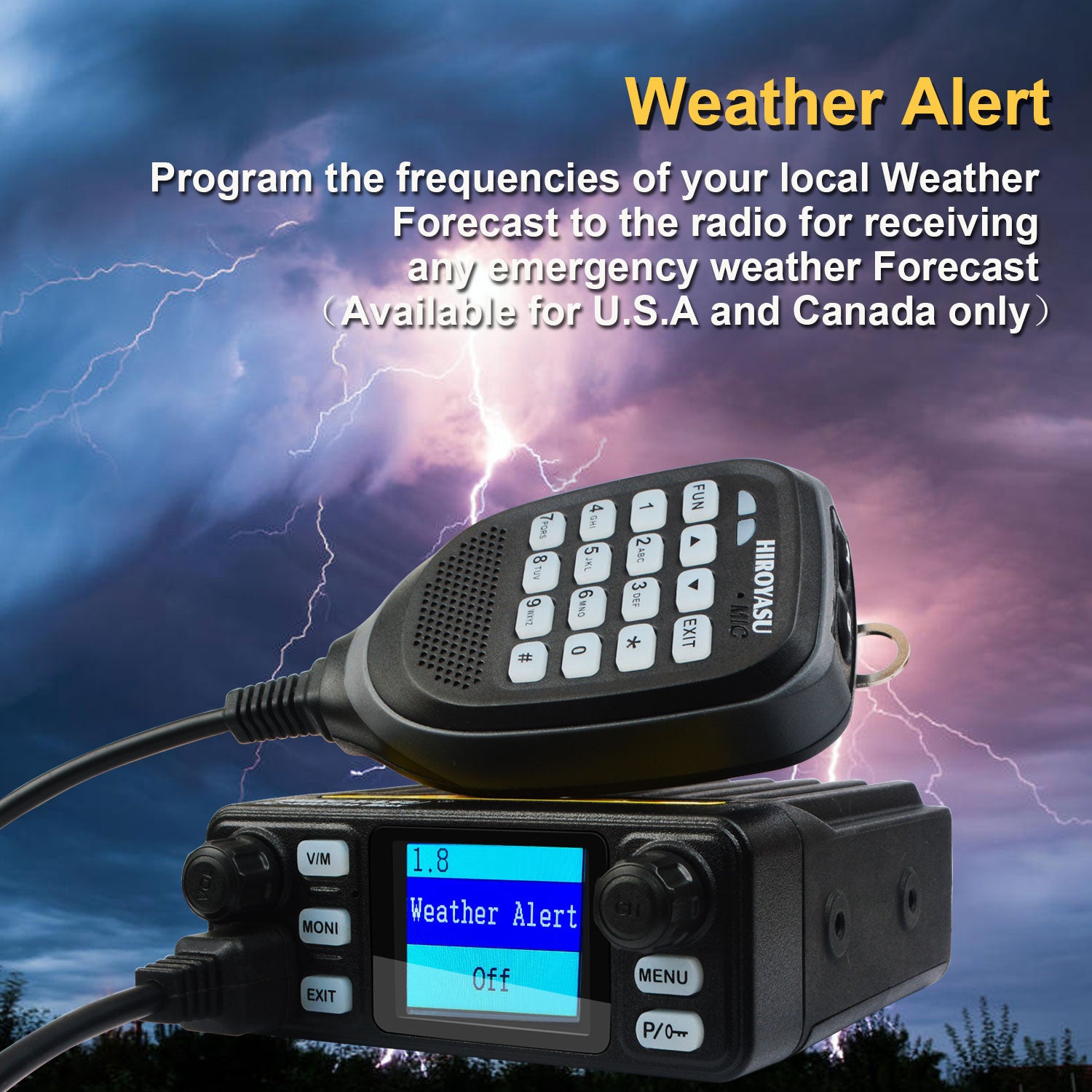

11. Weather Forecast Channels for U.S.A and CA
12. Program the frequencies of your local Weather Forecast to the radio for receiving any emergency

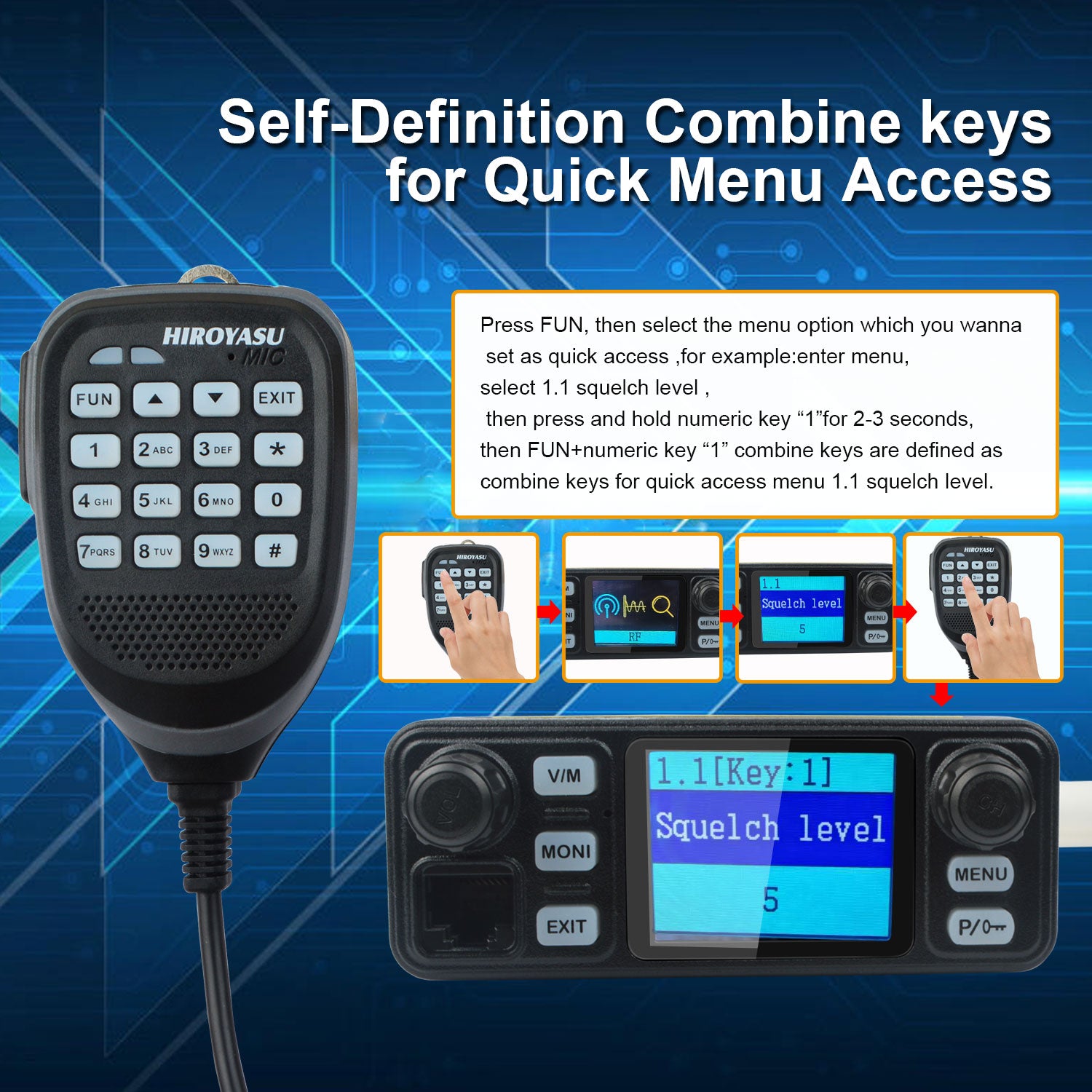

13. Self-Definition Combine keys for Quick Menu Access
Other features:
-

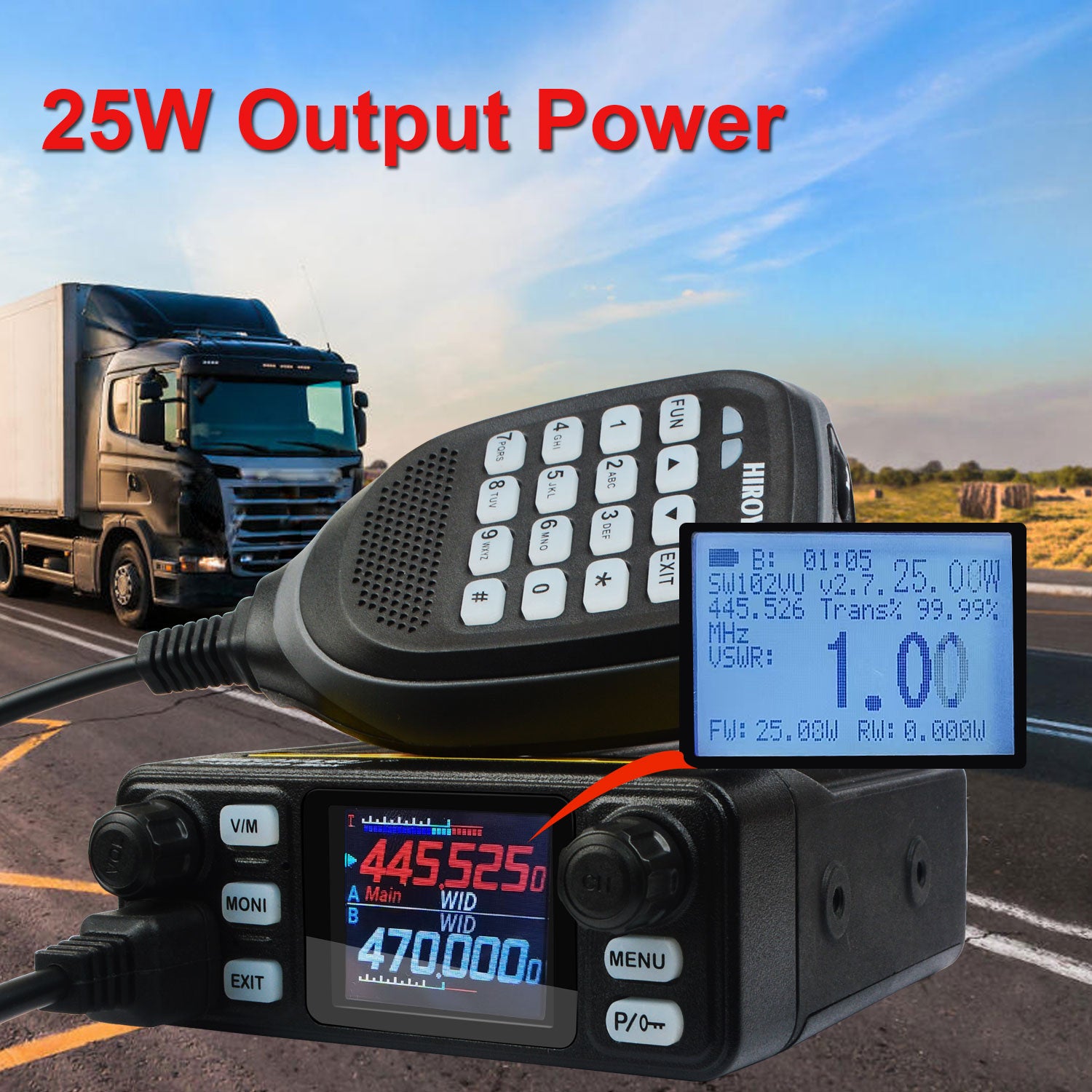

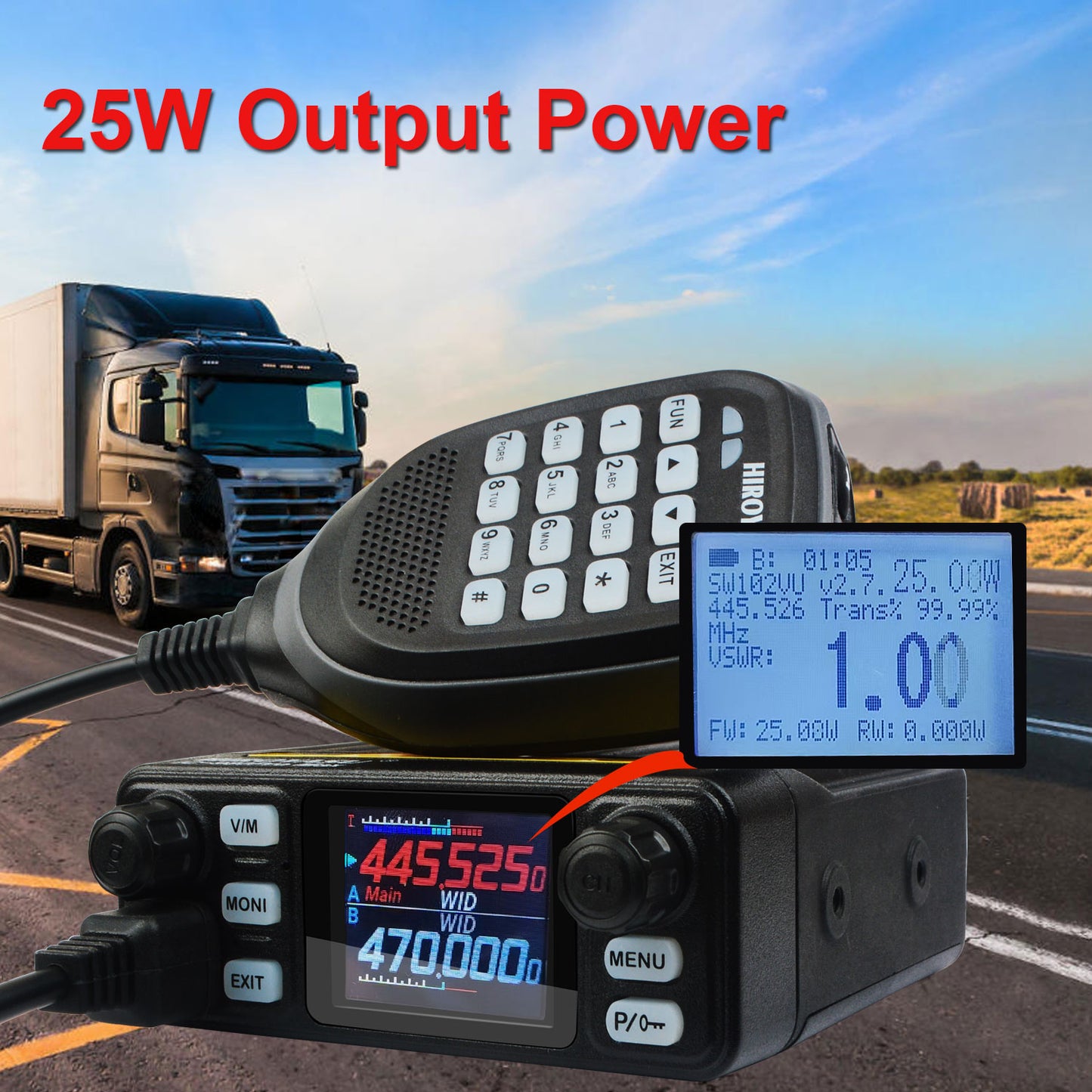

25W Output Power

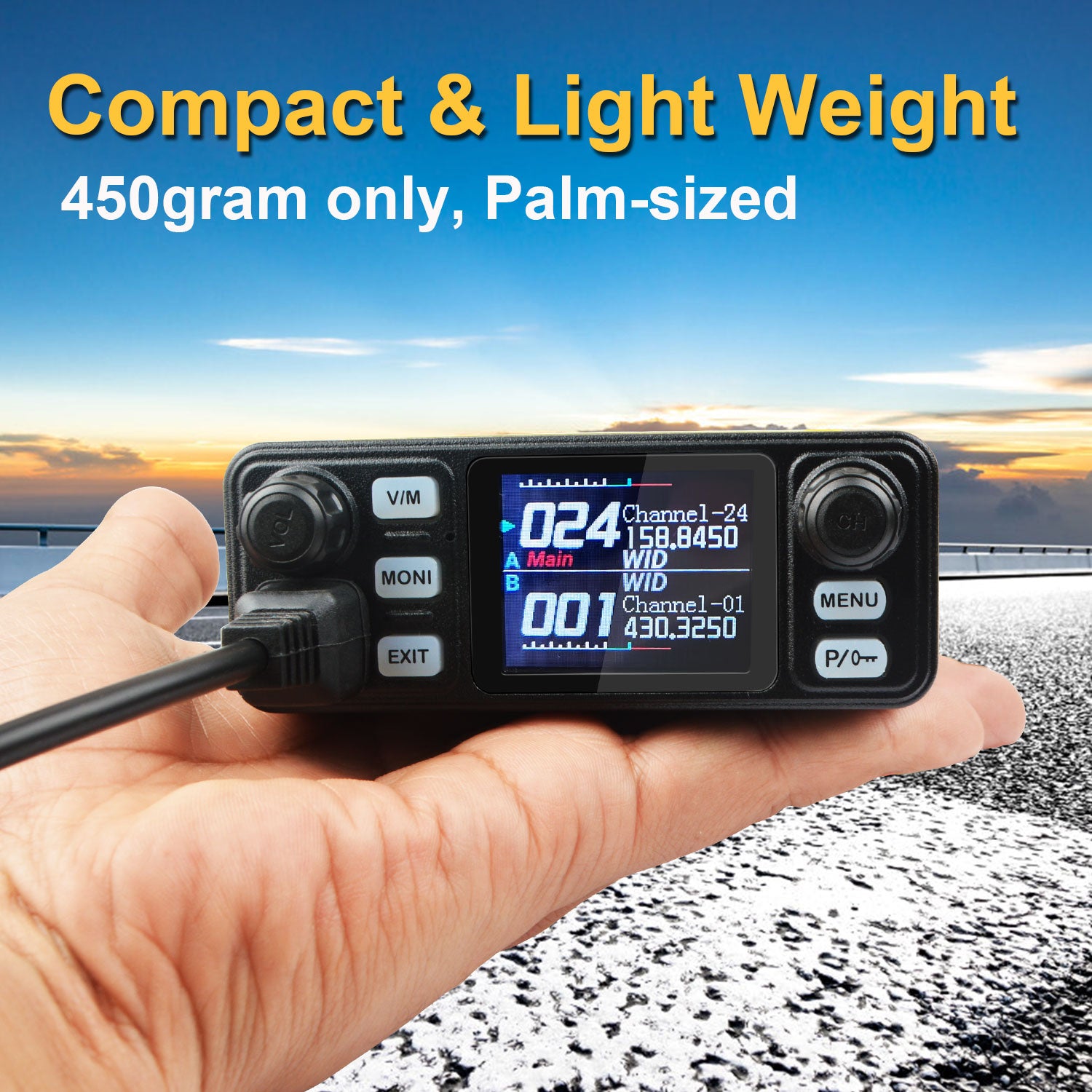

- Compact & Light Weight , 450gram,palm-sized mini size
- Device host mic and Hand speaker Mic (dual-Mic Design)

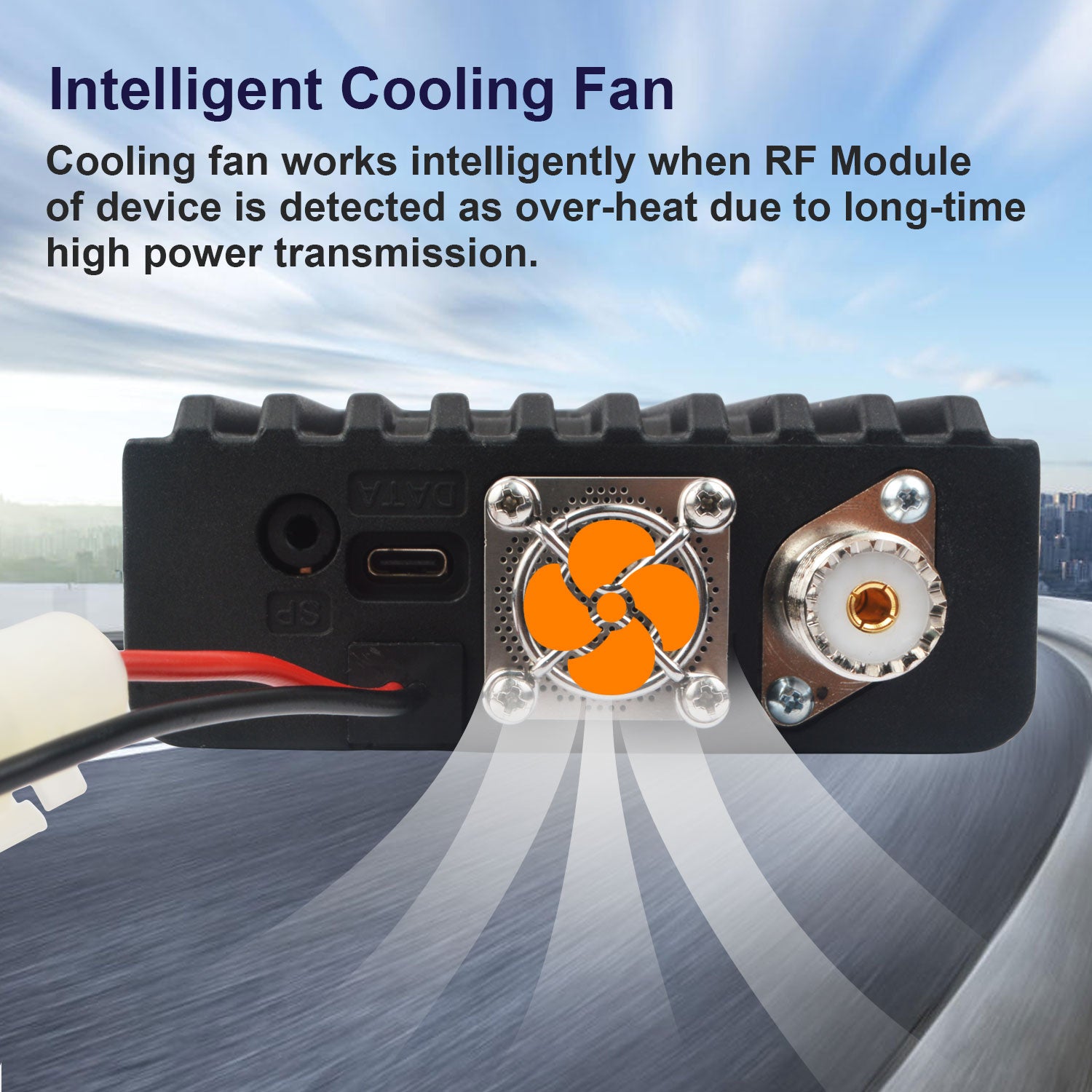

- Intelligent Cooling Fan

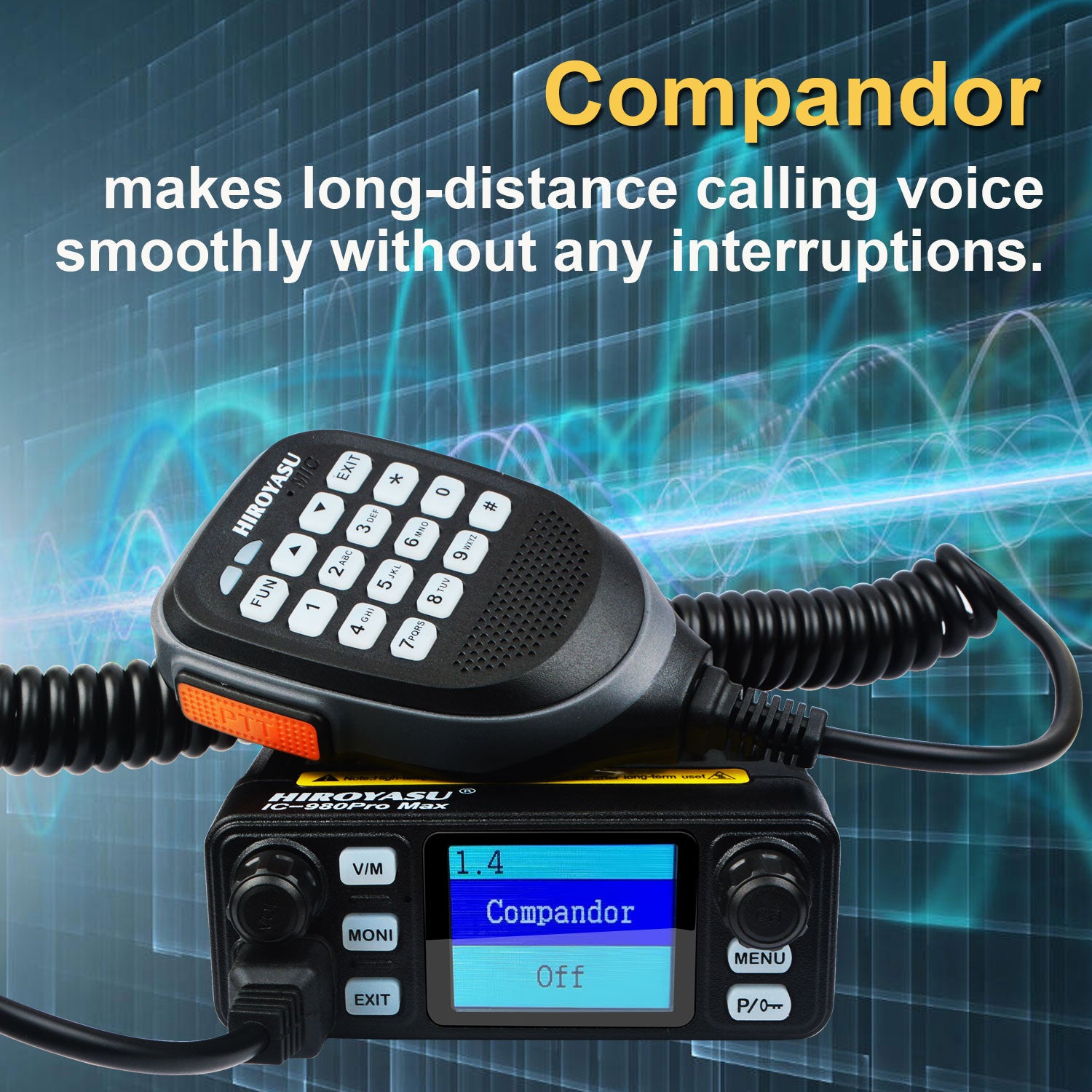

- Compandor makes long-distance calling voice smoothly without any interruptions.

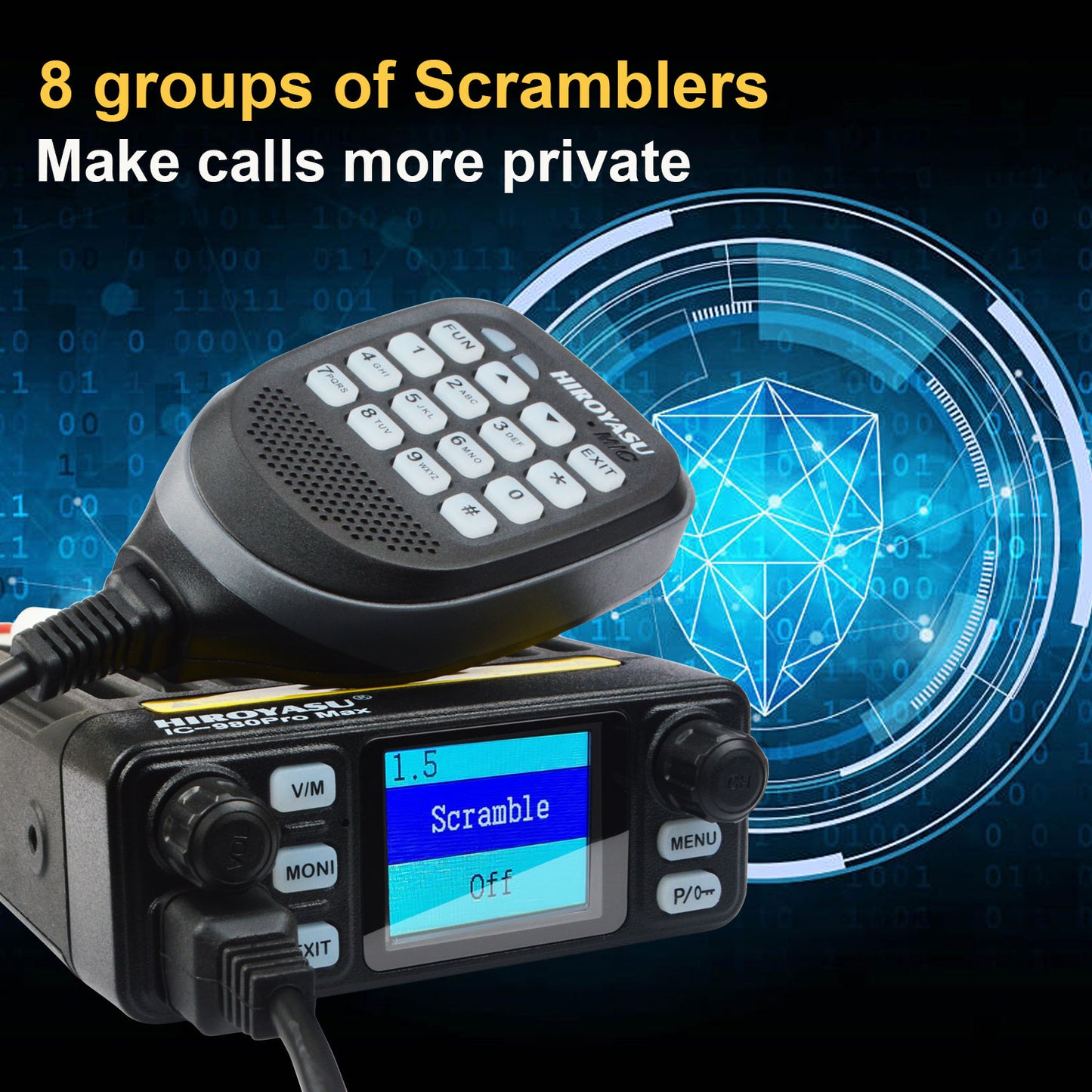

- 8 groups of Scramblers makes calls more private
- VOX (Voice -Operated Transmission) free your hands for a safe driving

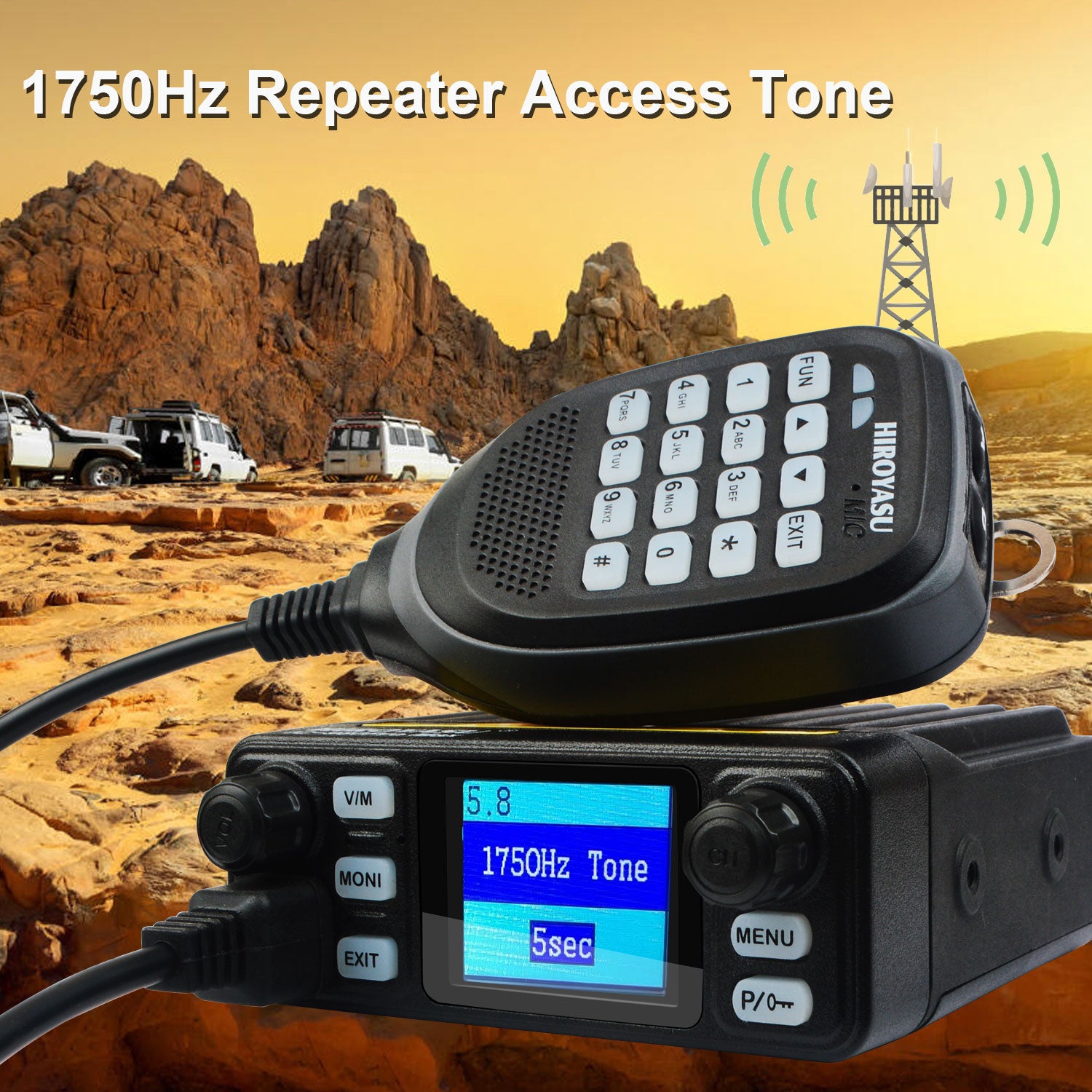

- 1750Hz Repeater Access Tone

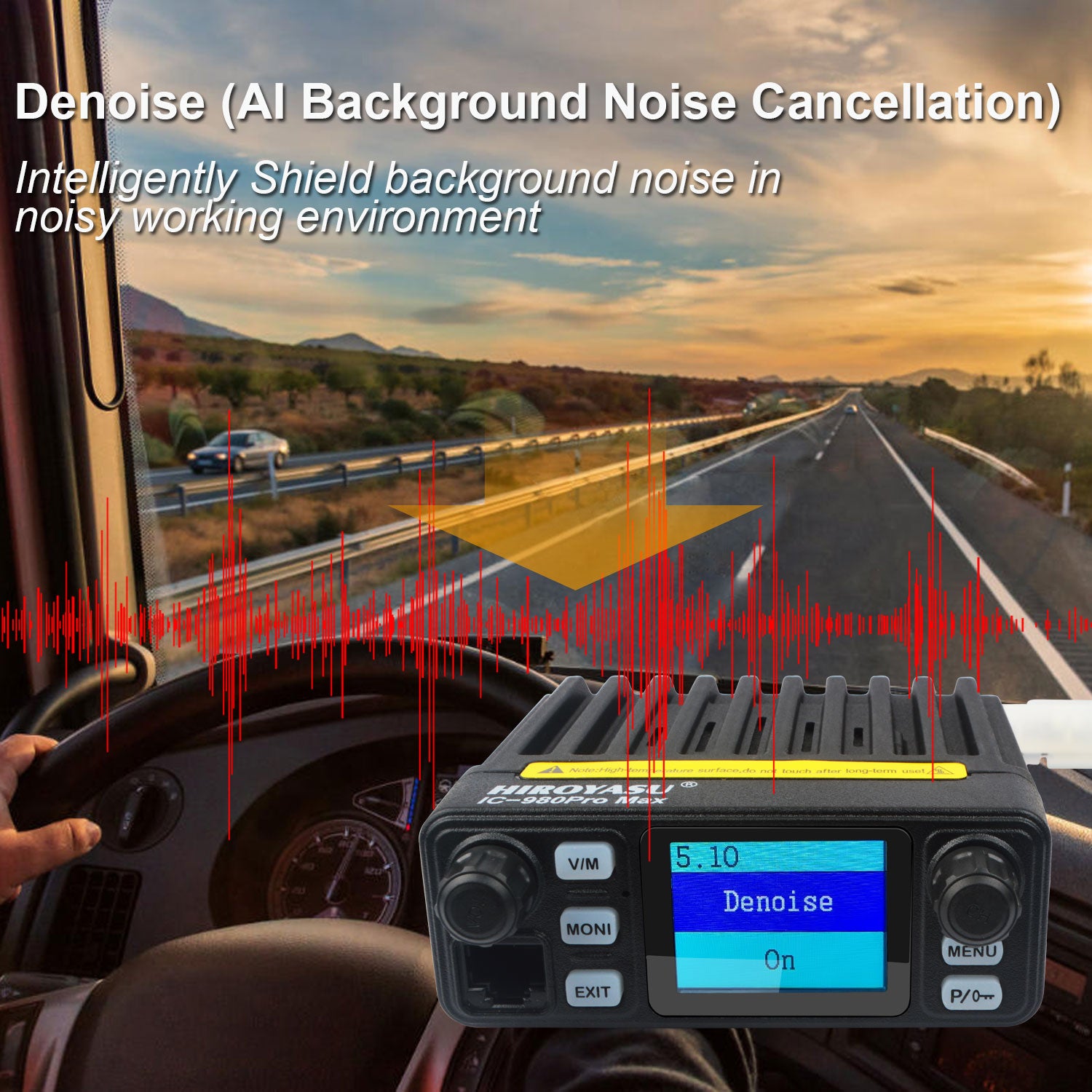

- Denoise (AI Background Noise Cancellation) Intelligently Shields background noise in noisy working environment
- Dual Band Display,Dual Band Watch,Dual Band Receive for different frequencies from V.U Bands
- 76-108MHz FM Radio
Technical Specifications:
|
General
|
|
Frequency Range
|
EU:VHF 144-146MHz,UHF 430-440MHz
U.S.A:vhf 144-148MHz, UHF:420-450MHz
|
|
Number of Channels
|
500
|
|
Channel Spacing
|
25KHz(wide band),12.5KHz(narrow band)
|
|
Phase-locked step
|
2.5KHz,5KHz,6.25KHz,10KHz,12.5KHz,20KHz,25KHz,30KHz,50KHz
|
|
Operating voltage
|
13.8VDC ±15%
|
|
Noise Suppression Mode
|
Carrier/CTCSS/DCS/CUS
|
|
Frequency Stability
|
±2.5ppm
|
|
Operating Temperature
|
-20°c to 60°c
|
|
Dimensions
|
108mm*40mm*102mm
|
|
Weight
|
450g
|
|
Receiver
|
|
|
Broadband
|
Narrowband
|
|
Sensitivity
|
≥0.2uV
|
≥0.14uV
|
|
Adjacent Channel Selectivity
|
≥70dB
|
≥60dB
|
|
Inter-modulation
|
≥65dB
|
≥60dB
|
|
Spurious response
|
≥70dB
|
≥70dB
|
|
Signal-to-noise ratio
|
≥45dB
|
≥40dB
|
|
Audio distortion
|
≤5%
|
|
Audio Output Power
|
≥2W±10%
|
|
Transmission
|
|
|
Broadband
|
Narrowband
|
|
Output Power
|
25W/20W(VHF/UHF)
|
|
Modulation
|
16KΦF3E
|
11KΦF3E
|
|
Adjacent Channel Power
|
≥70dB
|
≥60dB
|
|
Signal-to-noise ratio
|
≥40dB
|
≥40dB
|
|
Spurious and harmonic
|
≥60dB
|
≥60dB
|
|
Audio distortion
|
≤5%
|
All specifications may be modified without prior notice or liability
Package Contents of Each Unit:
1×IC-980 Pro Max Mni Radio Body
1× Speaker Mic
1× Bracket
1× Cigarette Light Power Cable
1× Screw Sets
1× Hook for Speaker Mic
1× ENG Manual
1× USB-C Programming Cable (Optional)
