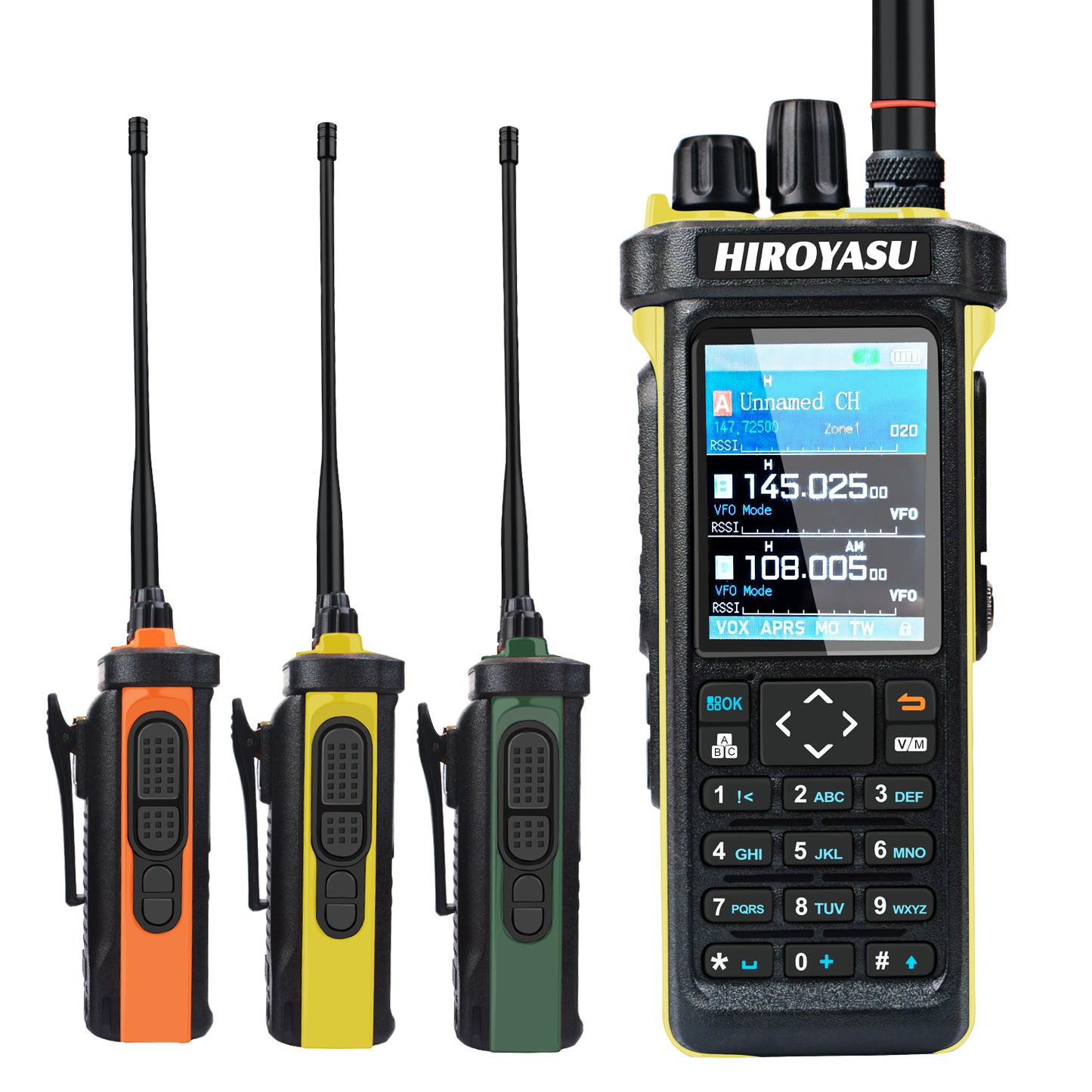

HIROYASU HI-UV850Pro FM/AM/SSB 10W Bluetooth Program GPS APRS Shortwave Multi-Band DTMF Scrambler FM Amateur Handheld Ham Walkie Talkie
Feature:
Three Modulations:
FM :64-108MHz
AM:153-279/520-1710/2300-26100KHz
SSB:150-30000KHz
Working Frequency Range:
108-136MHz Aviation Band Receive
27MHz Tx/RX FM Modulation
49-53MHz Tx/Rx
136-174MHz Tx/Rx
400-520MHz Tx/Rx

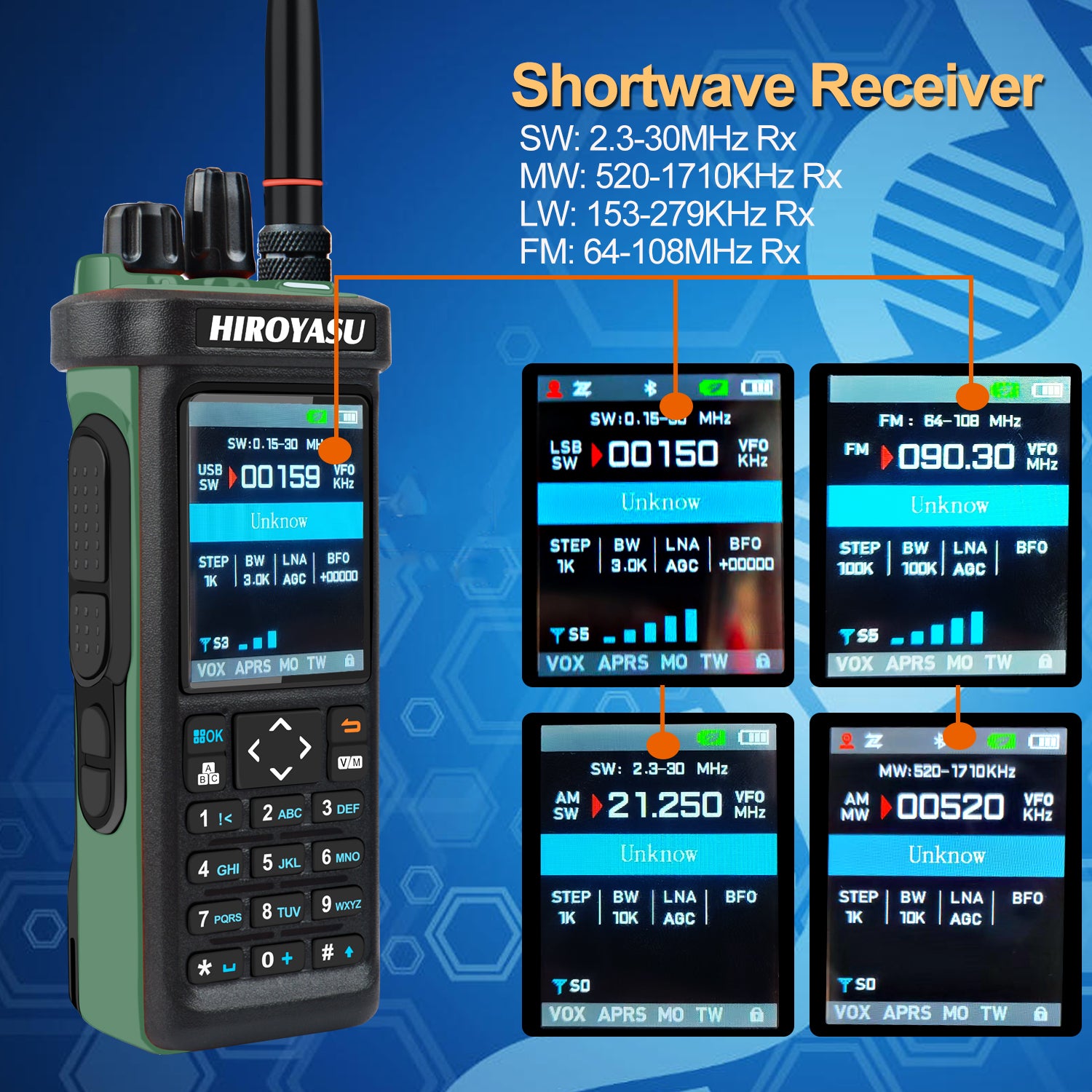

SW:2.3-30MHz Rx
MW:520-1710KHz Rx
LW”153-279KHz Rx
FM/AM/LSB/USB/CW Receiving
Frequency Step:2.5/5.0/6.25/8.33/10.0/12.5/20.0/25.0/50.0/100.0KHz

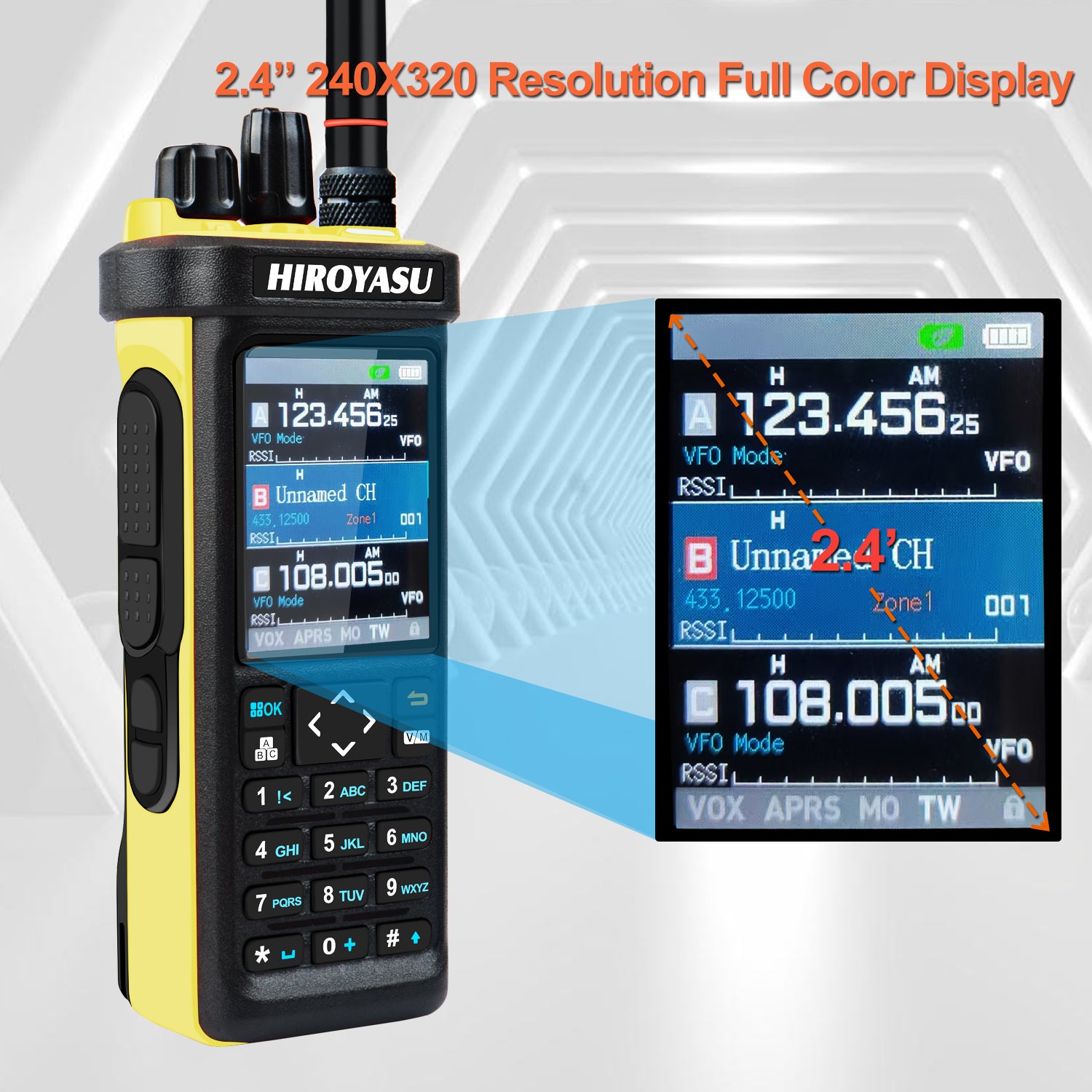

2.4’’ 240X320 Resolution Full Color Display

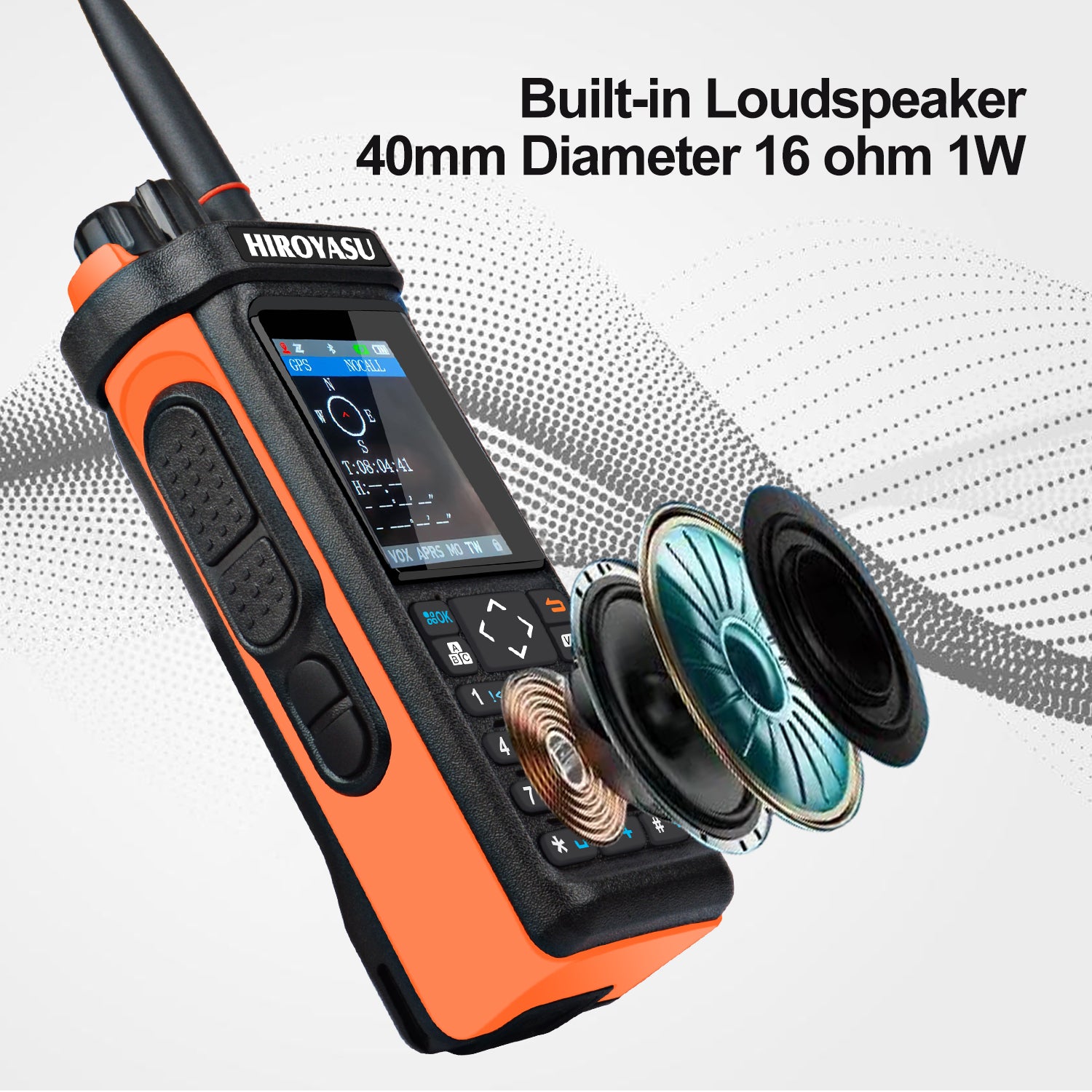

Built-in 40mm diameter 16OHM,1W loudspeaker

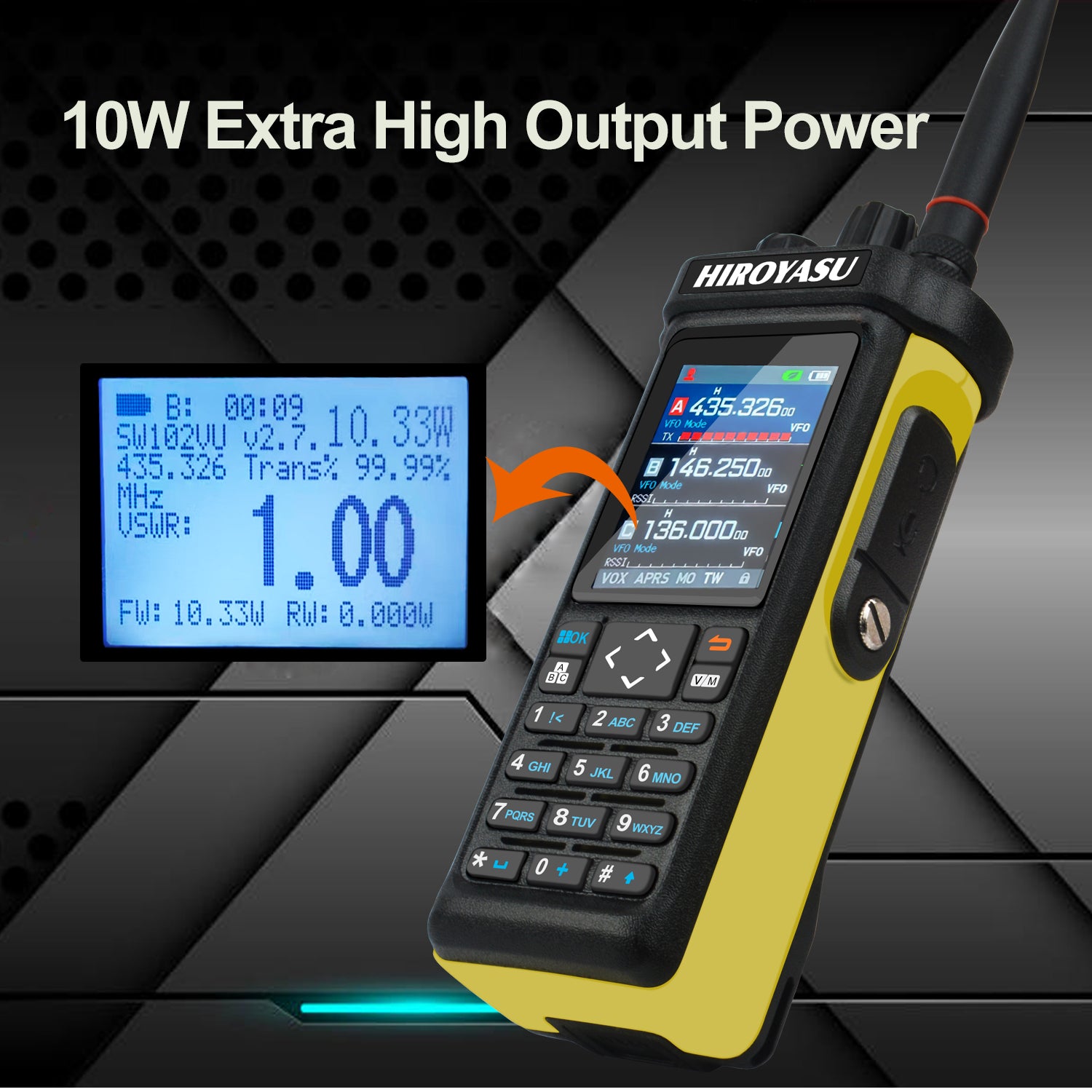

10W Output Power

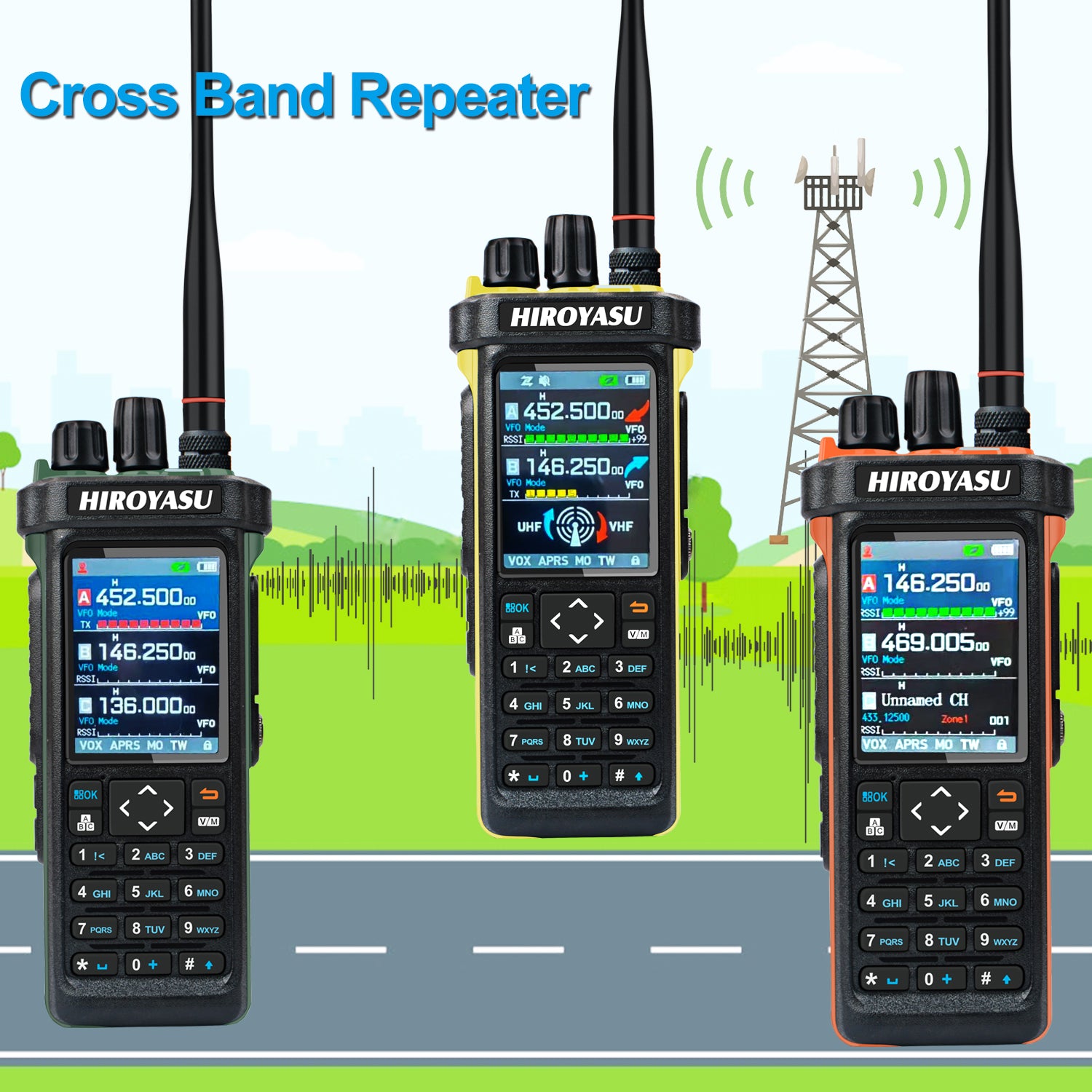

Cross Band Repeater

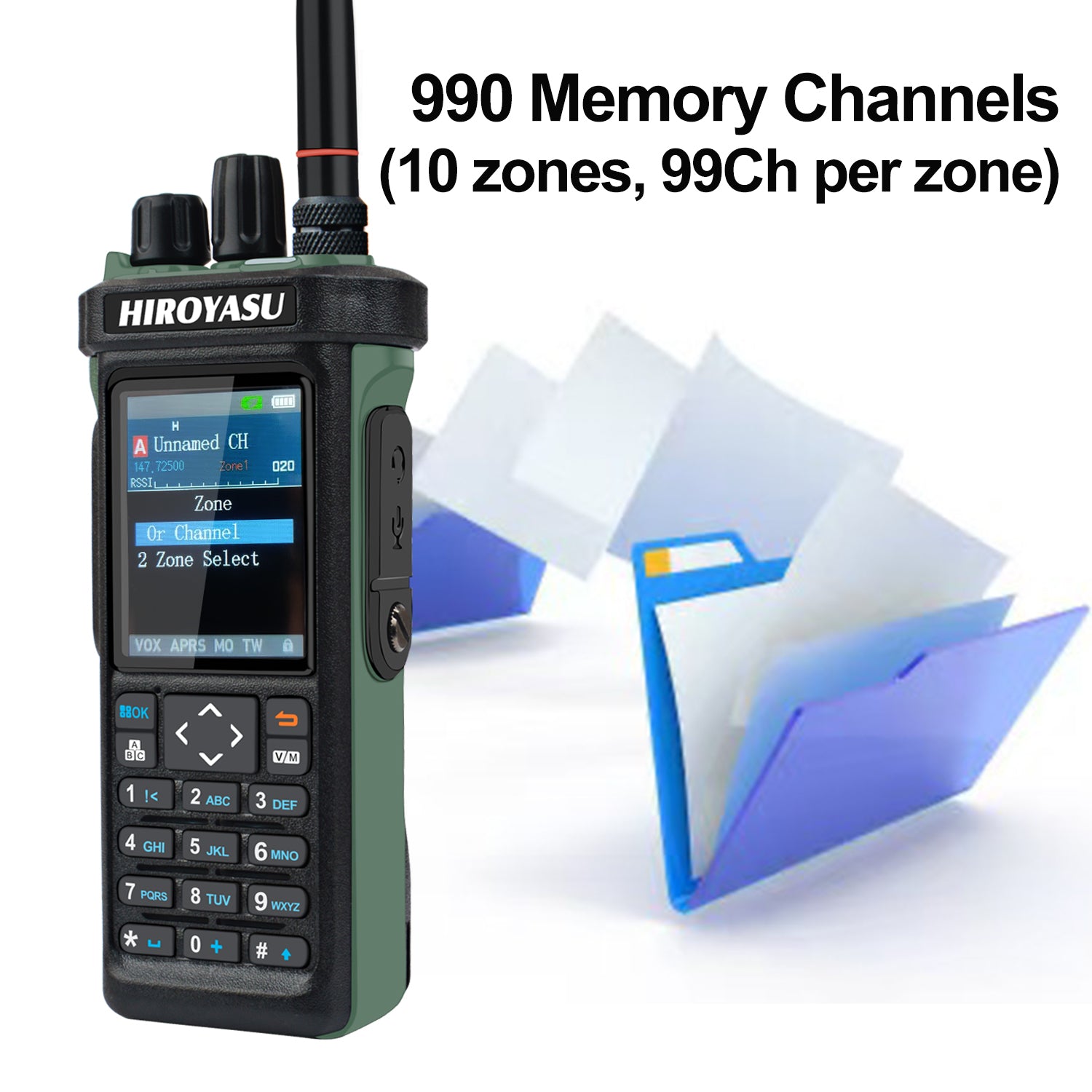

990 Memory Channels (10 zones, 99 channels per zone)
High/Middle/Low Output Power Select-able

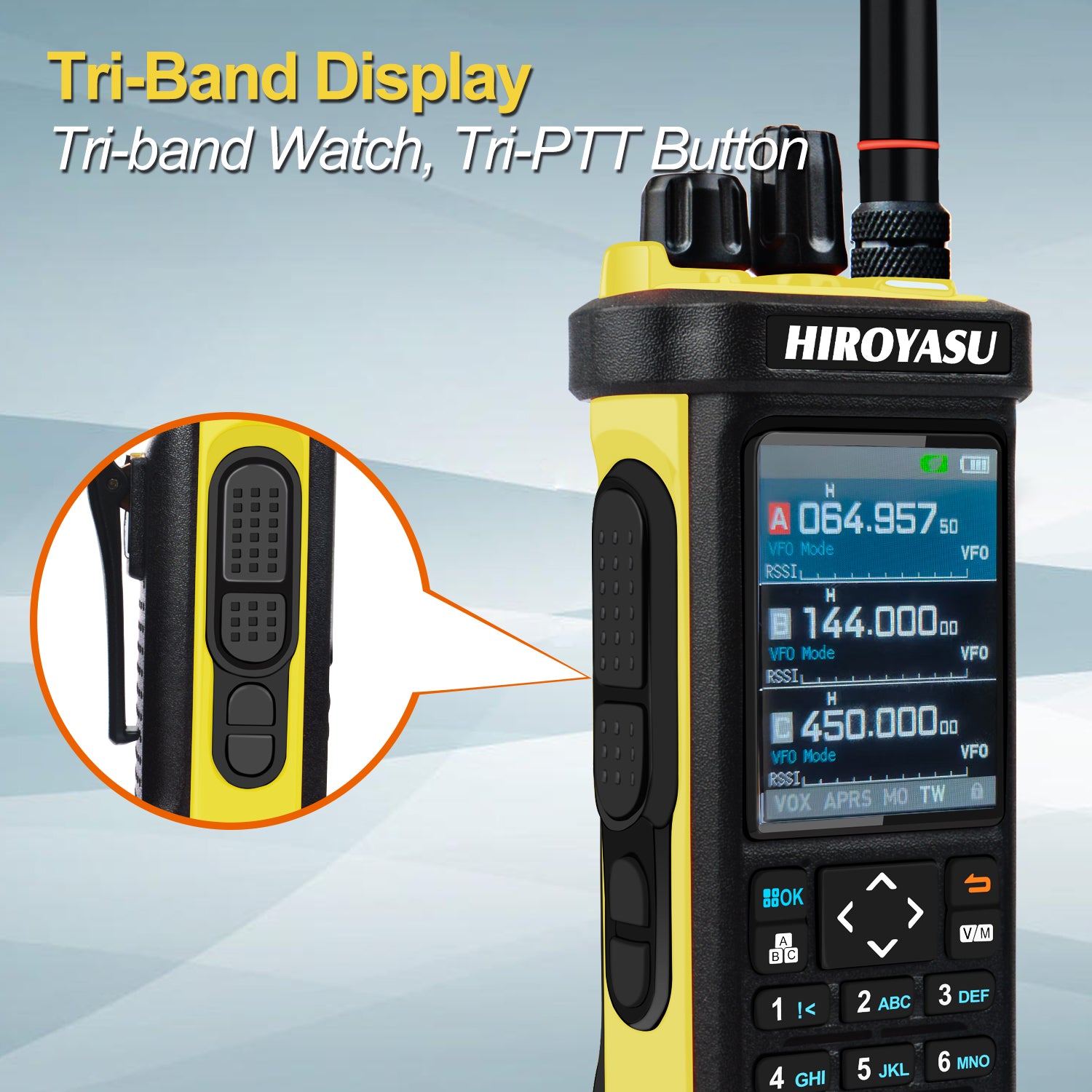

Tri-Band Display, Tri-band Watch,Tri-PTT Design

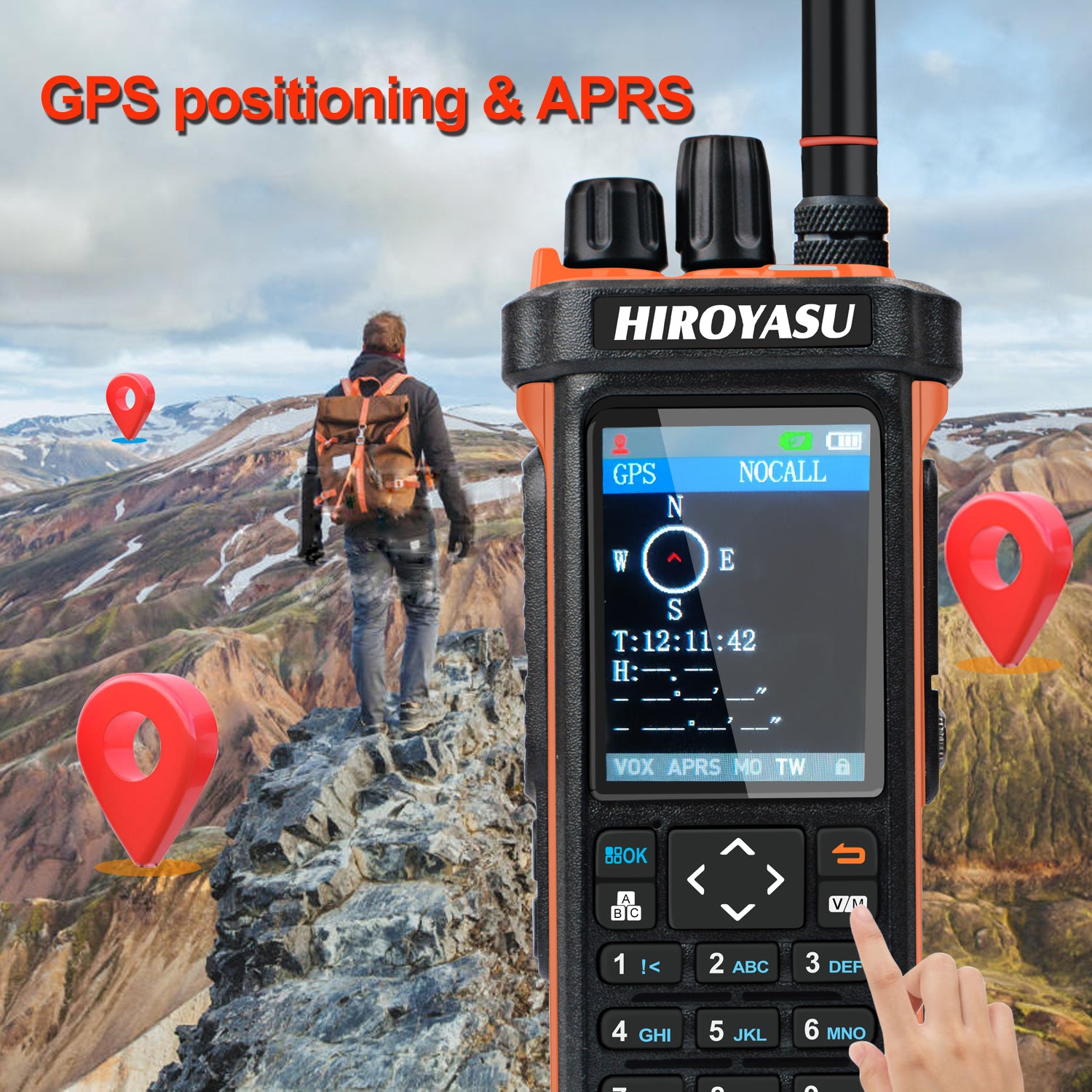

GPS Positioning & APRS

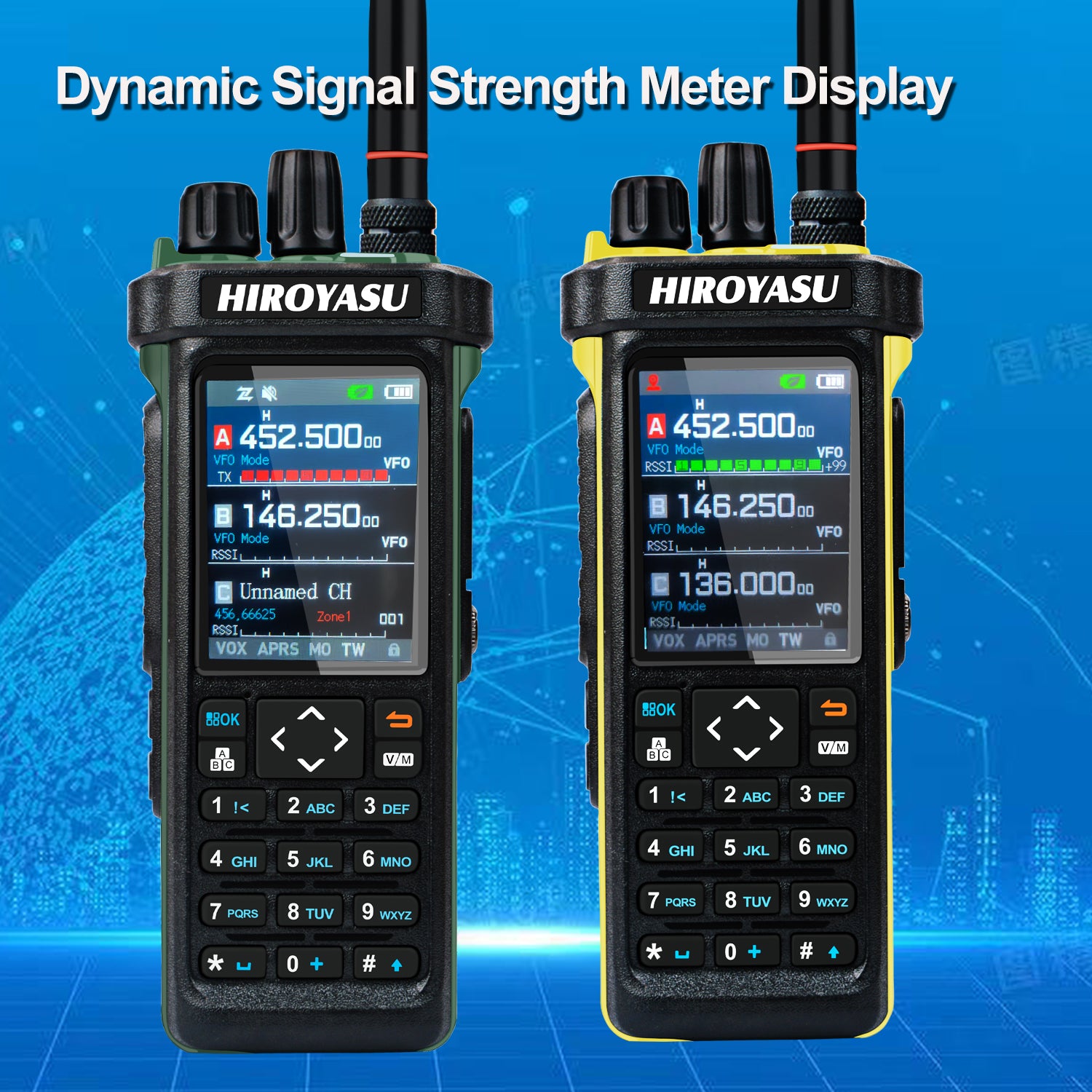

Dynamic Signal Strength Meter Display

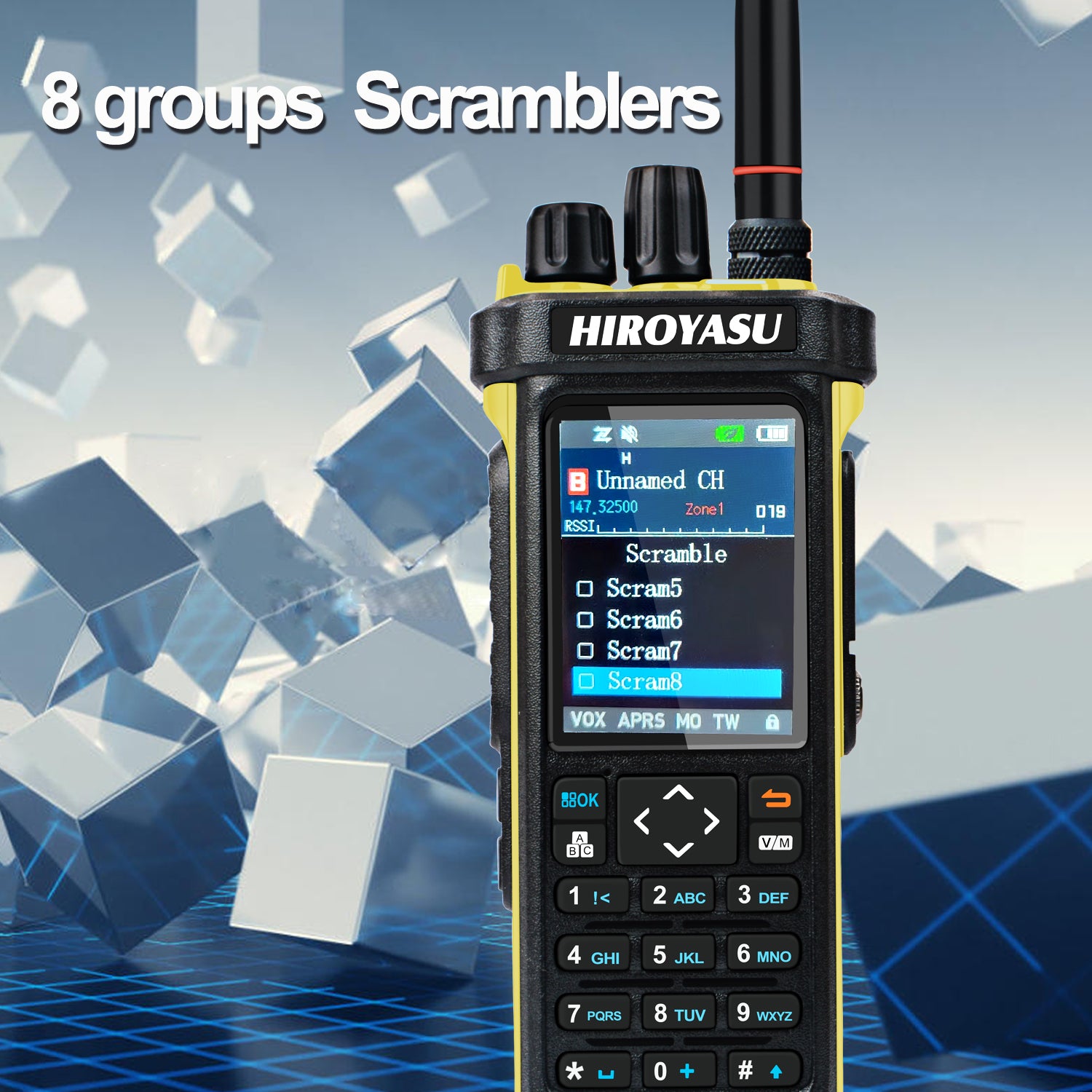

8 groups of Scramblers

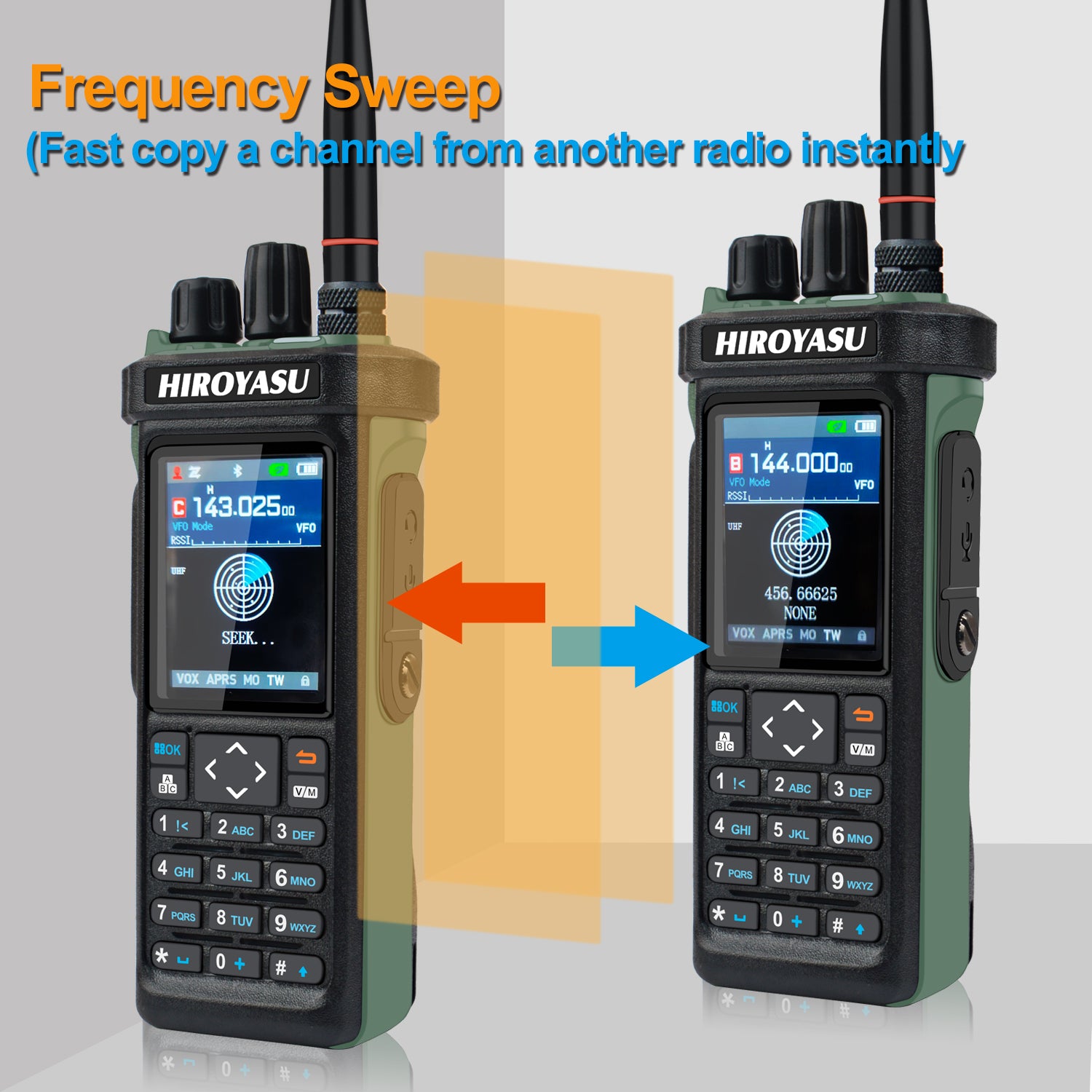

Frequency Sweep (Fast copy a channel from another radio instantly)
Subcode Sweep
Vox (Voice-operated Transmission)
On site/Send Sound/send code Three SOS Modes
Low/Middle/High Three levels Mic Gain Adjustable

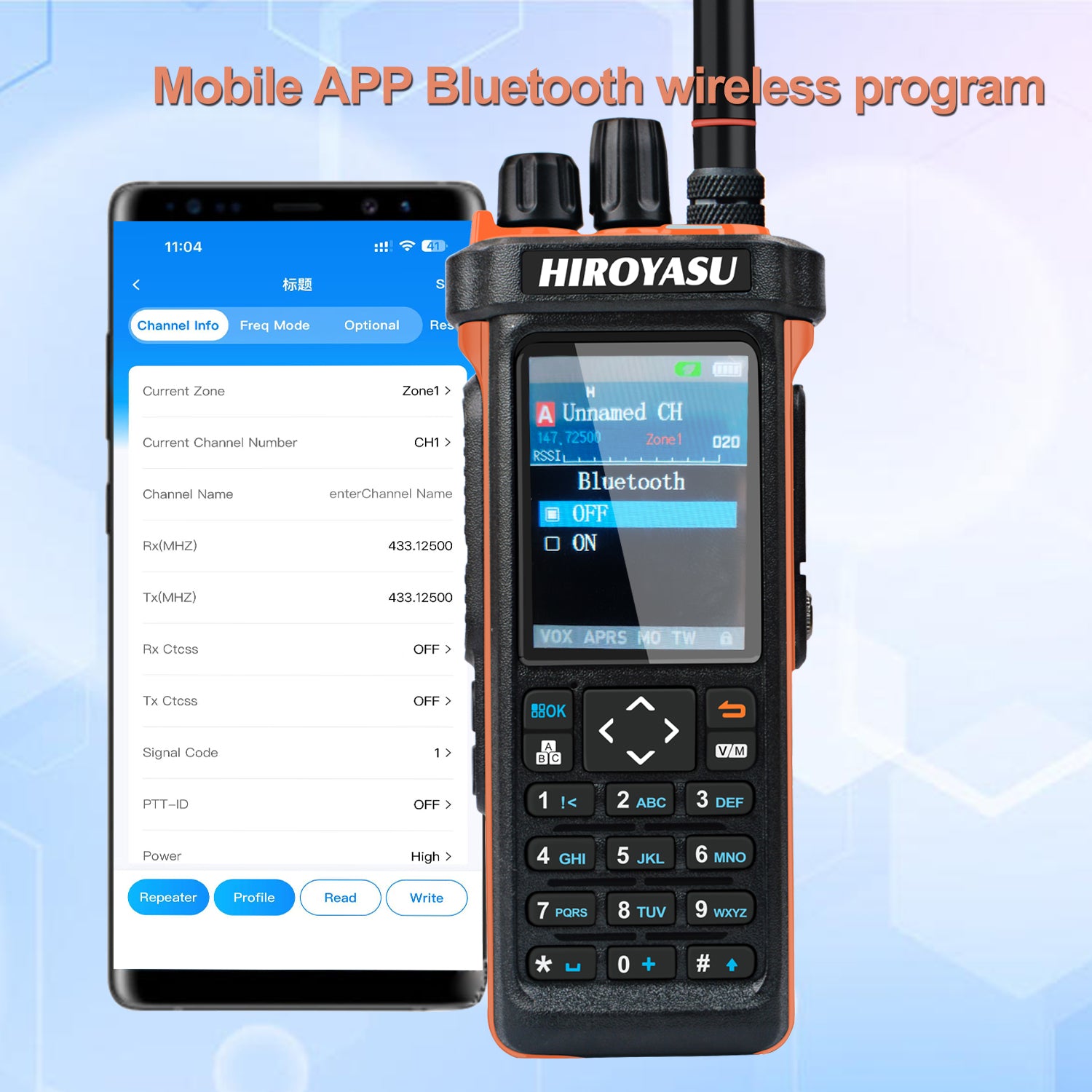

Mobile APP Bluetooth wireless program

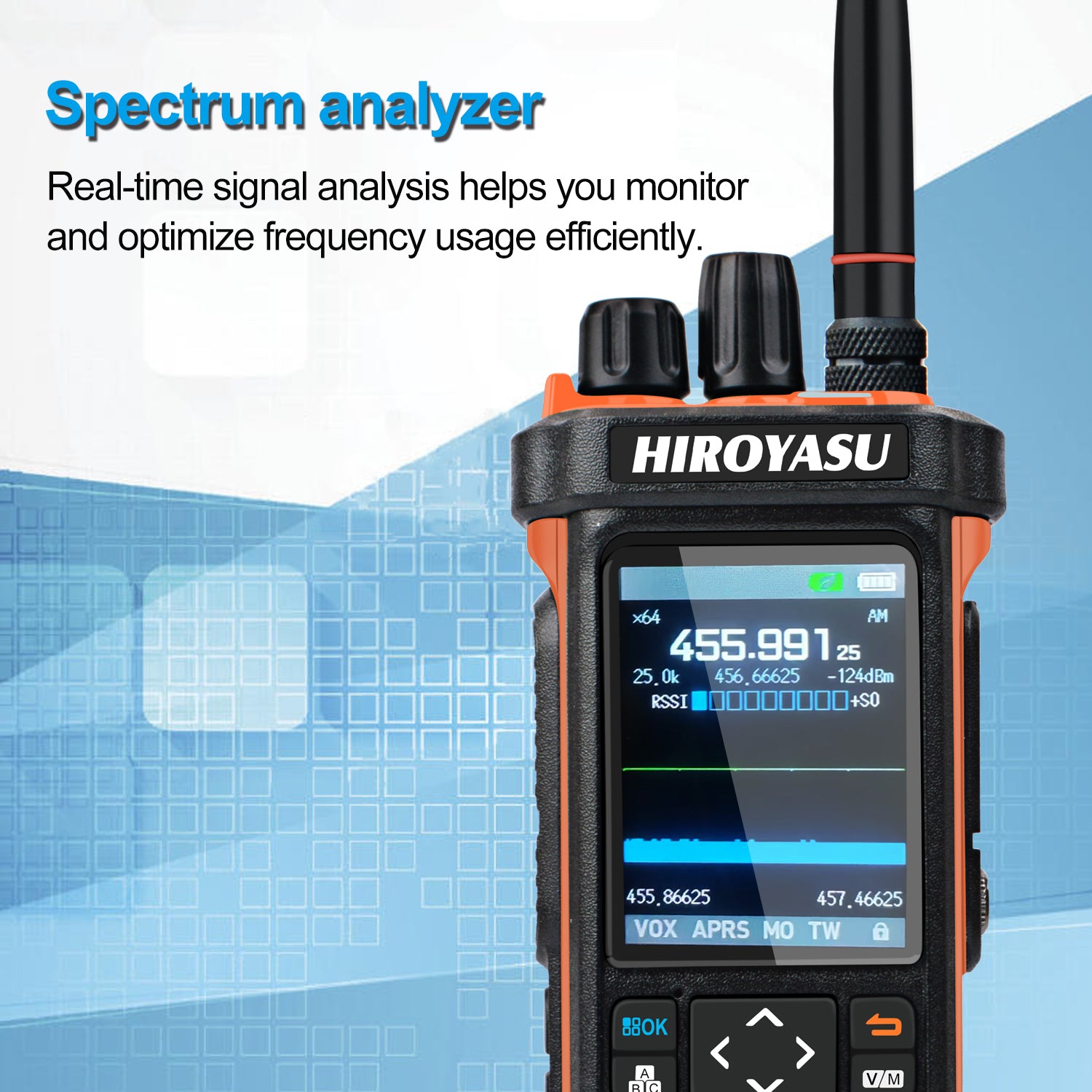

Integrated Spectrum Analyzer
Real-time signal analysis helps you monitor and optimize frequency usage efficiently.

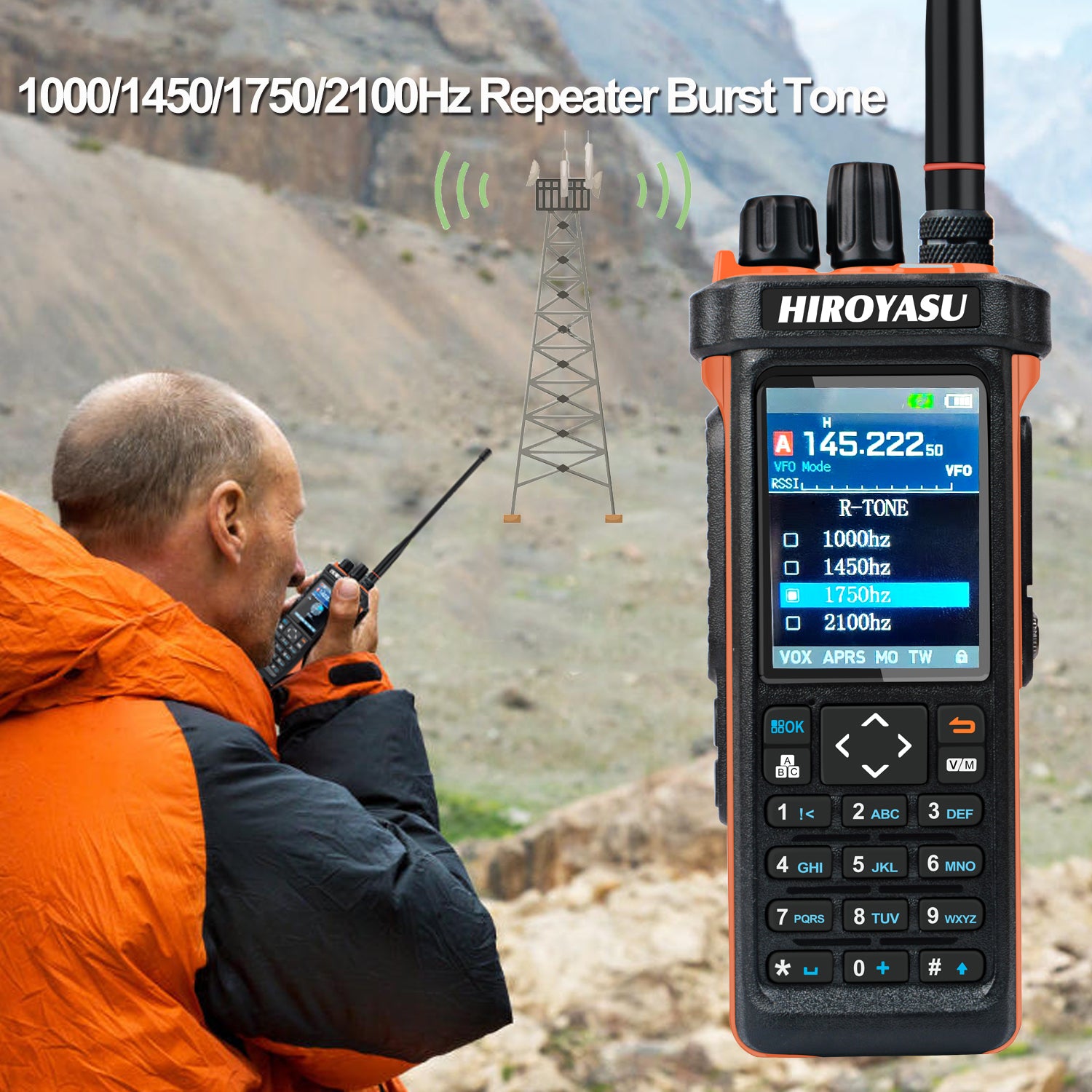

1000/1450/1750/2100Hz Repeater Burst Tone

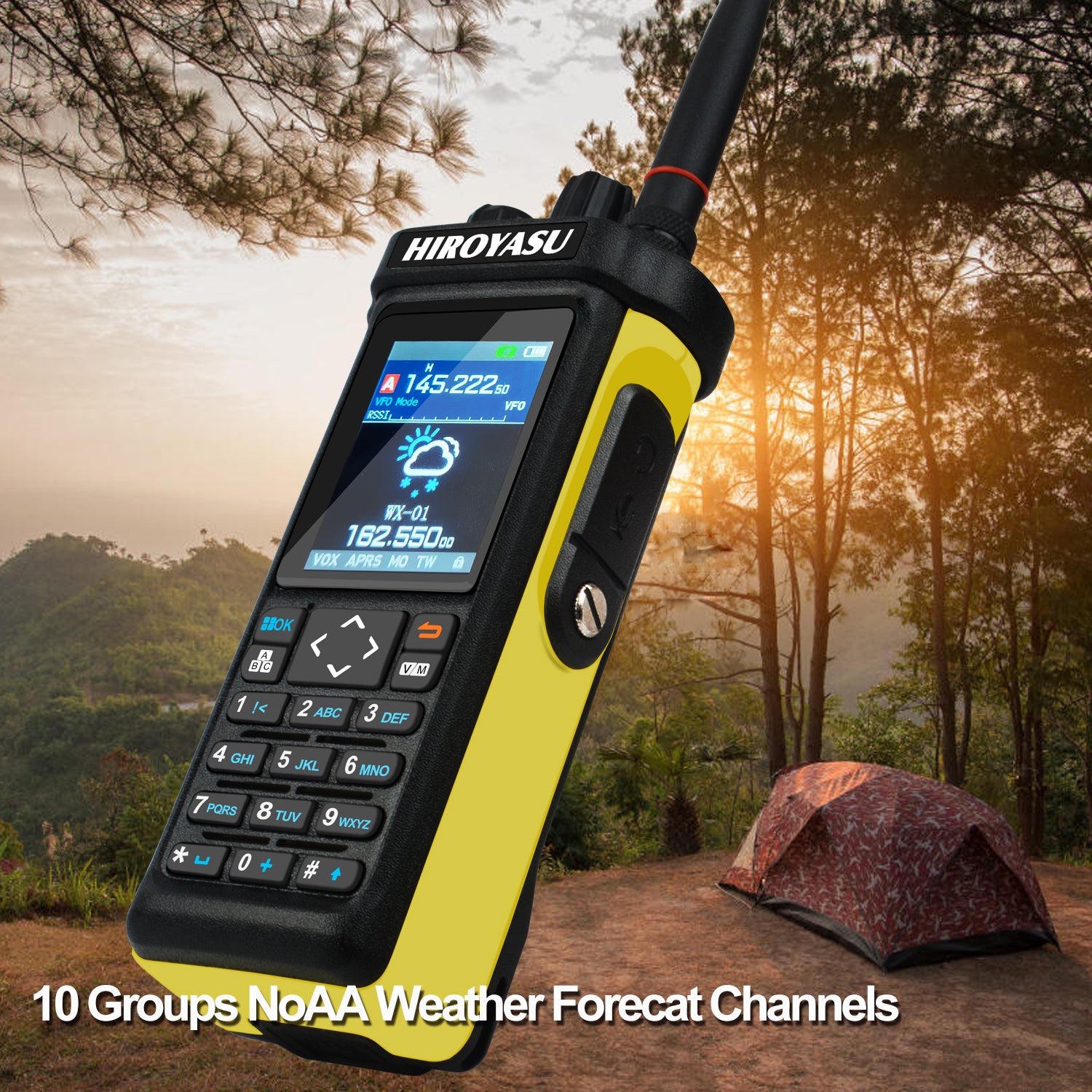

10 NoAA weather Forecast Channels
DTMF Signaling

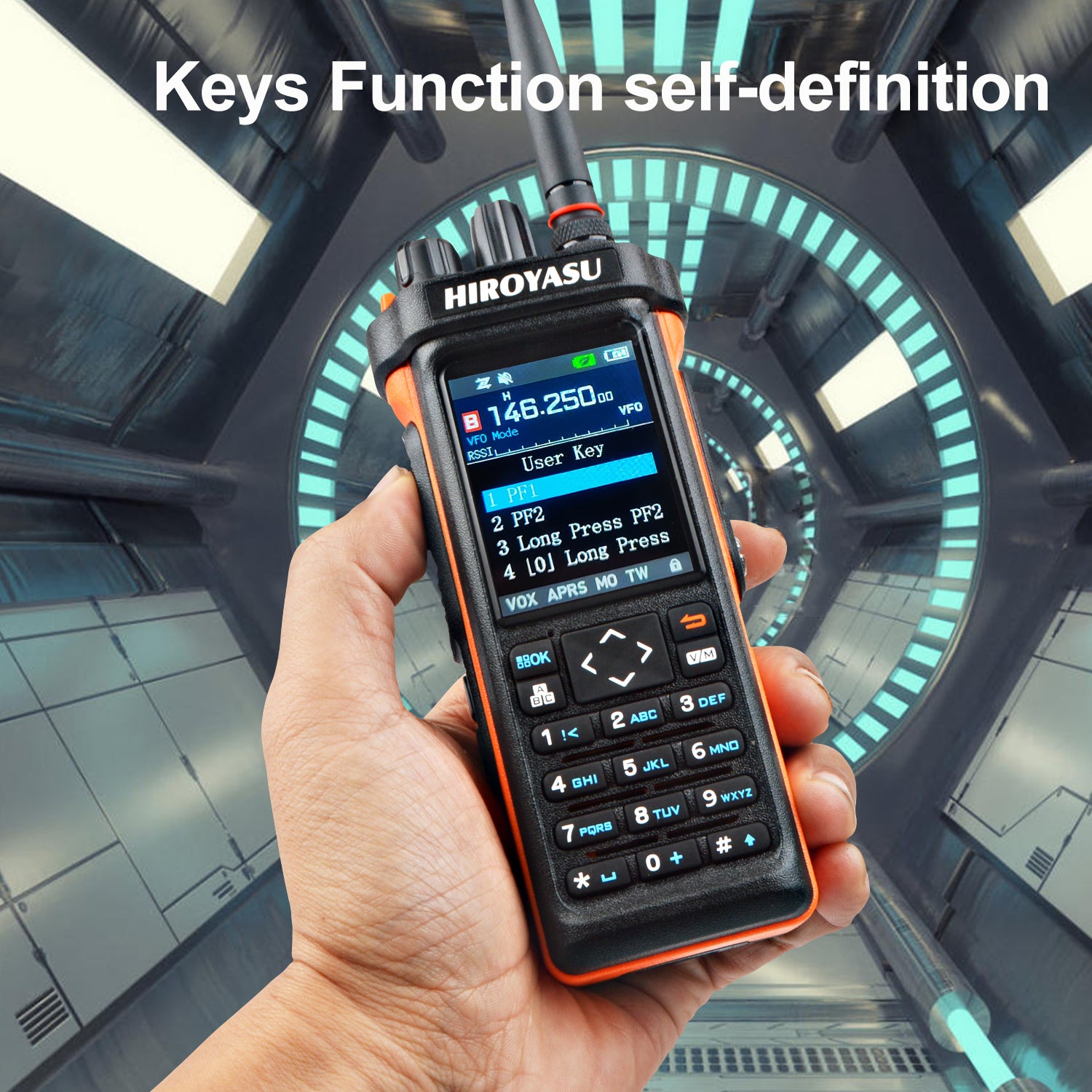

self-definition Keys for Menu Quick Access

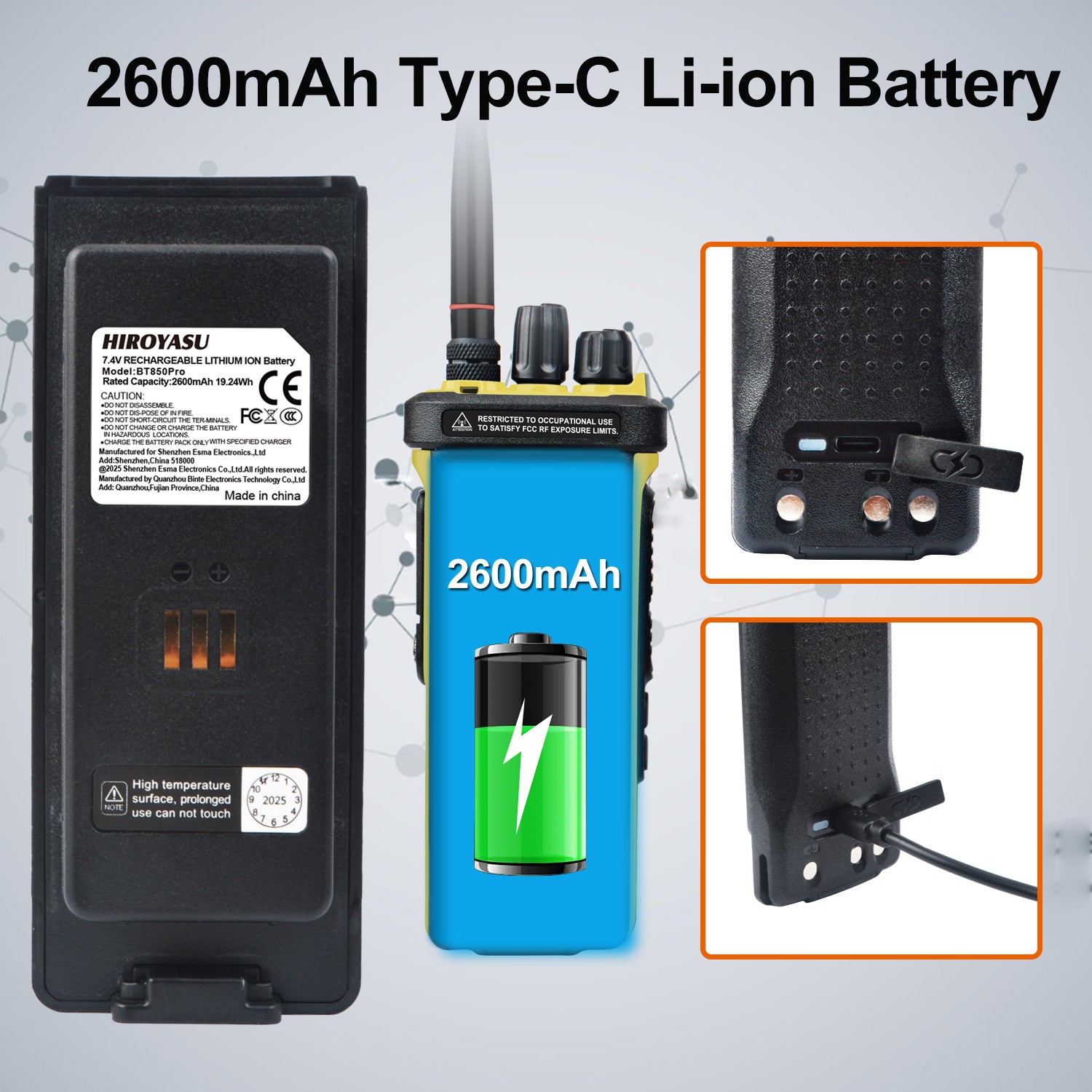

2600mAh Rechargeable Li-ion Type-C Battery Pack
Specifications:
|
General
|
|
Freq Range
|
108-136MHz Aviation Band Receive
27MHz Tx/RX FM Modulation
49-53MHz Tx/Rx
136-174MHz Tx/Rx
400-520MHz Tx/Rx
SW:2.3-30MHz Rx
MW:520-1710KHz Rx
LW”153-279KHz Rx
|
|
Channel Capacity
|
990 Memory Channels (10 zones, 99 channels per zone)
|
|
Channel Spacing (W/N)
|
Analog:25kHz/12.5kHz,Digital:12.5K
|
|
Voltage
|
7.4V DC
|
|
Working Mode
|
Same Frequency simplex,different frequency simplex
|
|
Antenna
|
Removable Antenna
|
|
Frequency Stability
|
±2.5ppm
|
|
Working Temperature
|
-20°c~60°c
|
|
Dimension
|
160*65*45mm (Antenna Not included)
|
|
Weight
|
About 400g (Battery, Antenna, Clip included)
|
|
Transmitting
|
|
Power
|
≤10W
|
|
Modulation Mode
|
F3E
|
|
Maximum Deviation (W/N)
|
≤5KHz/≤2.5KHz
|
|
SNR(W/N)
|
-45dB/-40dB
|
|
Tx Current
|
≤3000mA
|
|
Receiving
|
|
Sensitivity(W/N)
|
0.22uV/0.25Uv 12dB SINAD
|
|
Inter Modulation (W/N)
|
65dB/60dB
|
|
Audio Distortion
|
<5%
|
|
Audio Output Power
|
≤1W(16ohm)
|
|
RX Current
|
≤350mA
|
|
Standby Current
|
≤100mA
|
|
Note: The above parameters are subject to change due to technical improvement without prior notice or liability.
|

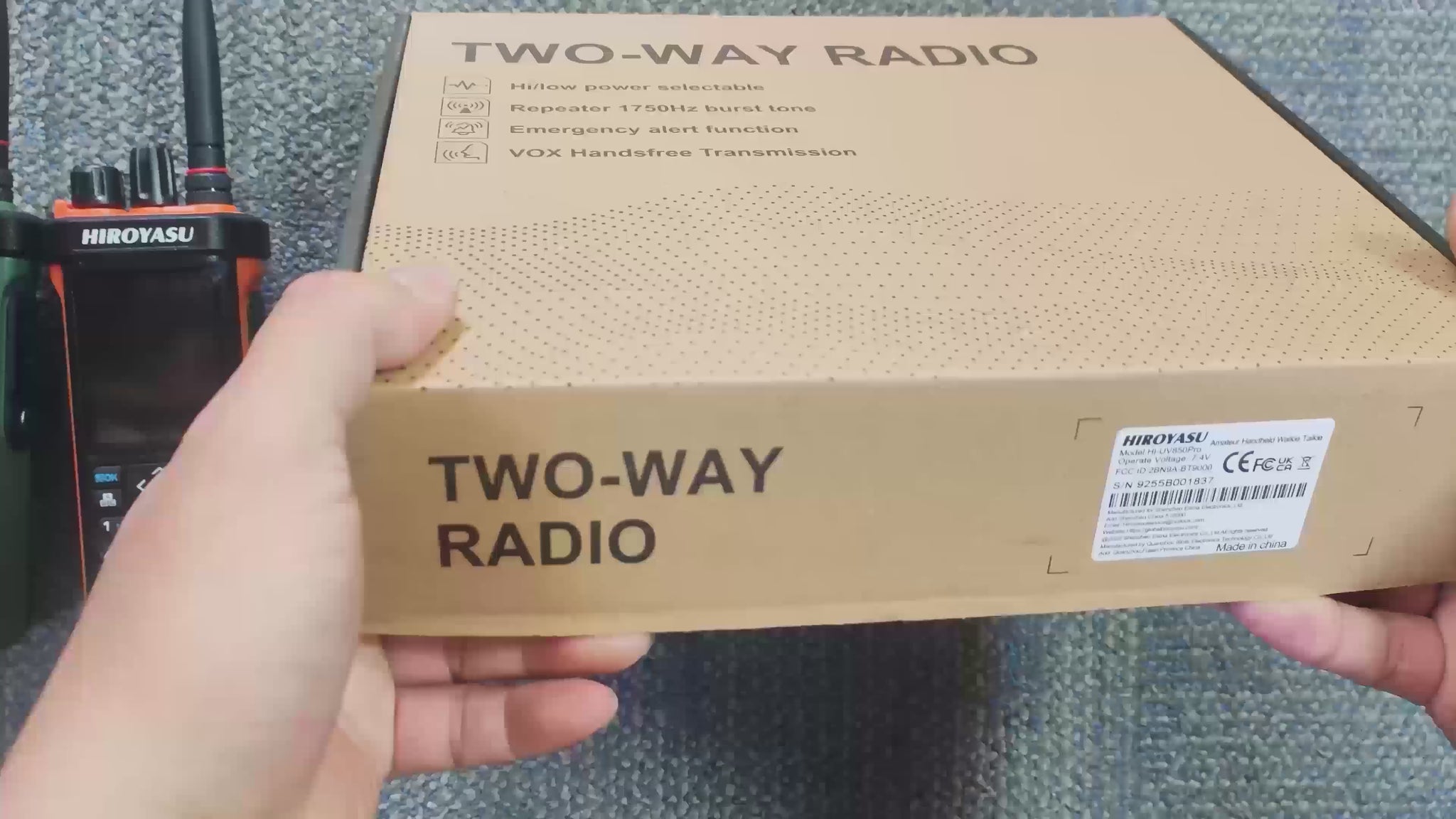

Package Contents of Each unit:
1×HIROYASU HI-UV850Pro Radio Body
1×7.4V 2600mah Li-ion Type-C Rechargeable Battery Pack
1×SMA-Female FM/136-174/400-470MHz High Gain Antenna
1×Desktop Charger
1×Type-C Charging Cable
1×AC Adapter
1× Belt Clip
1× Hand strap
1× English User manual
